STARTECH

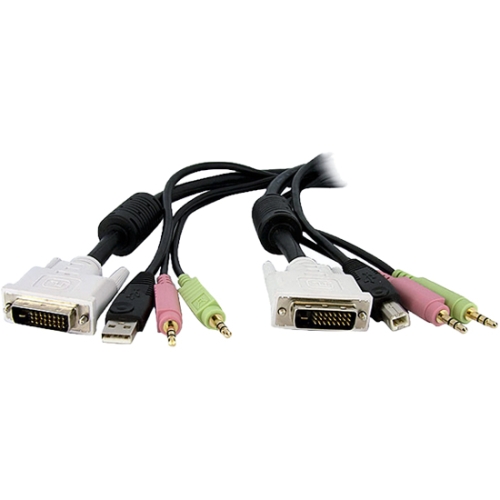

DVID4N1USB15 StarTech.com 15ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone
Mfg Part Number: DVID4N1USB15 , Item #: 1072701
, PO and Wire.
The DVID4N1USB15 15ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse and keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The four-in-one DVI KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with: Compatible StarTech.com KVMs can be found under the Accessories section. Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764) Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, SC540) Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L) Cables to go models (52047, 52048)
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DVID4N1USB15 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | DVID4N1USB15 |
| Product Name | 15ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone |
| Packaged Quantity | 1 Each |
| Product Type | KVM Cable |
| Technical Information | |
| Cable Type | DVI/Mini-phone/USB |
| Cable Length | 15 ft |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector Type on First End | DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector on First End Details | 2 x Mini-phone Stereo Audio - Male |
| Connector on First End Details | 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on Second End | Mini-phone Stereo Audio - Male |
| Connector Type on Second End | USB 2.0 Type B - Male |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Male |
| Connector on Second End Details | 1 x 4-pin USB 2.0 Type B - Male |
| Connector on Second End Details | 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male |
| Connector on Second End Details | 2 x Mini-phone Stereo Audio - Male |
| Conductor | Copper |
| Device Supported | Keyboard/Mouse |
| Device Supported | TV |
| Device Supported | Computer |
| Device Supported | Microphone |
| Device Supported | KVM Switch |
| Device Supported | Audio/Video Device |
| Data Transfer Rate | 7.9 Gbit/s |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 1.95 lb |
| Shipping Height | 2.76" |
| Shipping Width | 9.84" |
| Shipping Weight (Approximate) | 1.95 lb |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | StarTech KVM Switches:
Aten KVM Switches:
Avocent KVM Switches:
Belkin KVM Switches:
Cables to go KVM Switches:
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
