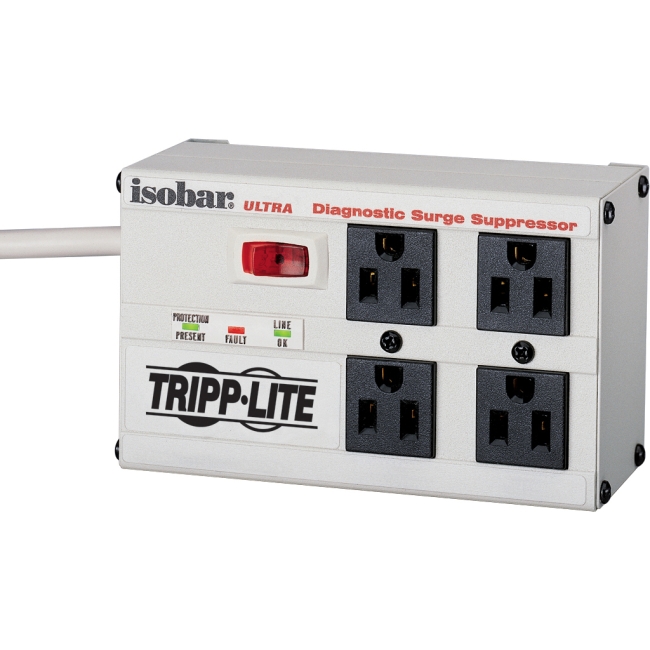

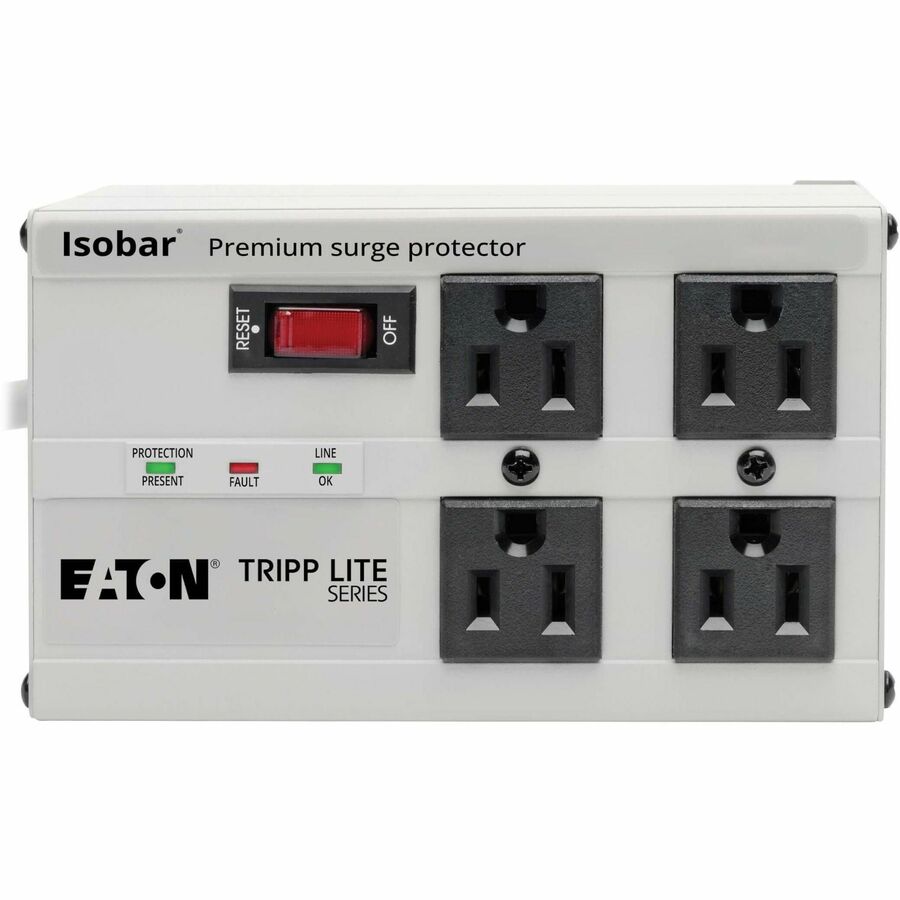

ISOBAR4ULTRA Tripp Lite Isobar 4 Outlet 120V Surge Suppressor
Mfg Part Number: ISOBAR4ULTRA , Item #: 97720
, PO and Wire.
Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the ISOBAR4ULTRA Isobar® 4-Outlet Surge Protector features a network-grade surge protection rating of 3330 joules to defend your sensitive electronics against even the strongest surges and spikes.
Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR4ULTRA protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).
Your devices plug into four widely spaced NEMA 5-15R outlets, which are arranged in two exclusive isolated filter banks. These internal barriers filter out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.
Included safety covers block accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm power, protection and line fault status. The six-foot (1.8-meter) AC power cord includes a space-saving right-angle NEMA 5-15P plug.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ISOBAR 4 ULTRA |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Line | Isobar |
| Product Name | Isobar Premium Surge Protector |
| Packaged Quantity | 1 Each |
| Product Type | Surge Suppressor/Protector |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 4 x NEMA 5-15R |
| Features | Auto Shut-off |
| Features | LED Indicator |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 15 A |
| Maximum Surge Current | 49 kA |
| Power Handling | 1400 VA |
| Surge Energy Rating | 3330 J |
| Circuit Breaker | Yes |
| Controls/Indicators | |
| Status Indicators | |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Light Gray |
| Product Material | Metal |
| Power Cord/Cable Length | 6 ft |
| Height | 2.5" |
| Width | 6" |
| Depth | 3.5" |
| Weight (Approximate) | 2.40 lb |
| Miscellaneous | |
| Package Contents | |
| Additional Information |
|
| Compatibility |
|
| Certifications & Standards |
|
| Recycled | No |
| Assembly Required | No |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
| Directly Connected Equipment Guarantee | $50000 |
| General Information | |
| Product | Power Outlet Strips |
| Number of Outlets | 4 |
| Surge Energy Rating | 2200 J |
| Data Line Protection | Protected |
| Cord Length | 6 ft |
| Mounting Style | - |
| Output Voltage | 120 V |
| Current Rating | 12 A |
Isobar combines superior technology with instantaneous response capability to absorb and shunt surges before they damage your sensitive electronic equipment. Indestructible all-metal casing withstands abuse plastic surge suppressors cannot and ensures your Isobar will be on the job for years to come. The Isobar is corporate America's standard with more than 10 million in use worldwide today!
