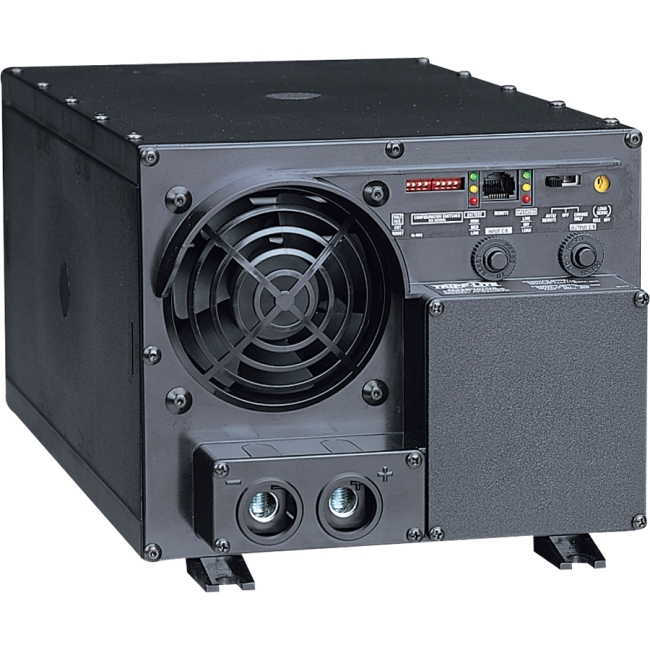

Tripp Lite PowerVerter APS APS2424 DC-to-AC Inverter
Mfg Part Number: APS2424 , Item #: 97594
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | APS2424 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | PowerVerter |
| Product Series | APS |
| Product Model | APS2424 |
| Product Name | PowerVerter APS APS2424 DC-to-AC Inverter |
| Product Type | Power Inverter |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacles | Hardwired |
| Power Description | |
| Input Voltage | 24 V DC |
| Output Voltage | 120 V AC |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 4800 W |
| Continuous Power Load | 2400 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Physical Characteristics | |
| Height | 7.3" |
| Width | 8.5" |
| Depth | 16.3" |
| Weight (Approximate) | 39 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Input Voltage-nominal | 12 VDC |
| Output Voltage | 120 V |
| Output Power | 2400 W |
| Voltage Regulation Accuracy | - |
| Number of Outlets | - |
| Mounting Type | - |
Tripp Lite's PowerVerter Alternative Power Source (APS) 2424 can function as an extended run UPS system or as a mobile DC to AC power inverter that will recharge its battery source (user supplied) when connected to an AC power source. The unit converts 24V DC to 120V AC and features an output power rating of 2,400 watts. Unique design features output hardwireable for 120 volts, diagnostic LEDs, and a switch to allow the user to select between off/automatic/charge-only settings. High-efficiency operation conserves batteries to prolong run time with frequency control for operating stability.
Key Buying Points:
Functions as an extended run UPS system or as a mobile power inverter that will recharge its battery source when connected to an AC power source
2,400 watts continuous output power; 4,800 watts peak output power
Backup runtime is dependent upon the size and number of 24-volt batteries selected and supplied by user
Output hardwireable for 120 volt; AC input hardwire to 120 volt; DC input terminals for 24V battery connection
Converts 24 volt DC to 120 volt AC
Frequency control for operating stability
High-efficiency operation conserves batteries to prolong run time
Advanced 3-stage (bulk, absorption, & float) battery charger
Resettable circuit breaker to protect APS and connected batteries against system overload
Switch to allow user to select between off/automatic/charge-only settings
6 diagnostic LEDs indicate AC present, on battery, overload, & battery voltage level (high, medium, & low)
Configuration switches to allow the user to select the high/low voltage for the unit to automatically transfer from AC power to battery backup
Battery type selector switch
RJ45 port allows connection of APS/PowerVerter Remote Switch (# APSRM)
Configuration switches to allow the user to select the point at which the unit will begin load sharing between battery charger and connected load
Allows for the addition of as many batteries as needed to maintain AC power during outages
Typical Applications:
Industrial power tools, pumps, appliances, lights, fans, mobile office equipment, audio/video devices, and more.
Package Includes:
PowerVerter APS 2424
Instruction manual with warranty information
Battery Holders
