ISOBAR12ULTRA Tripp Lite Isobar 12-Outlets 120V Surge Suppressor

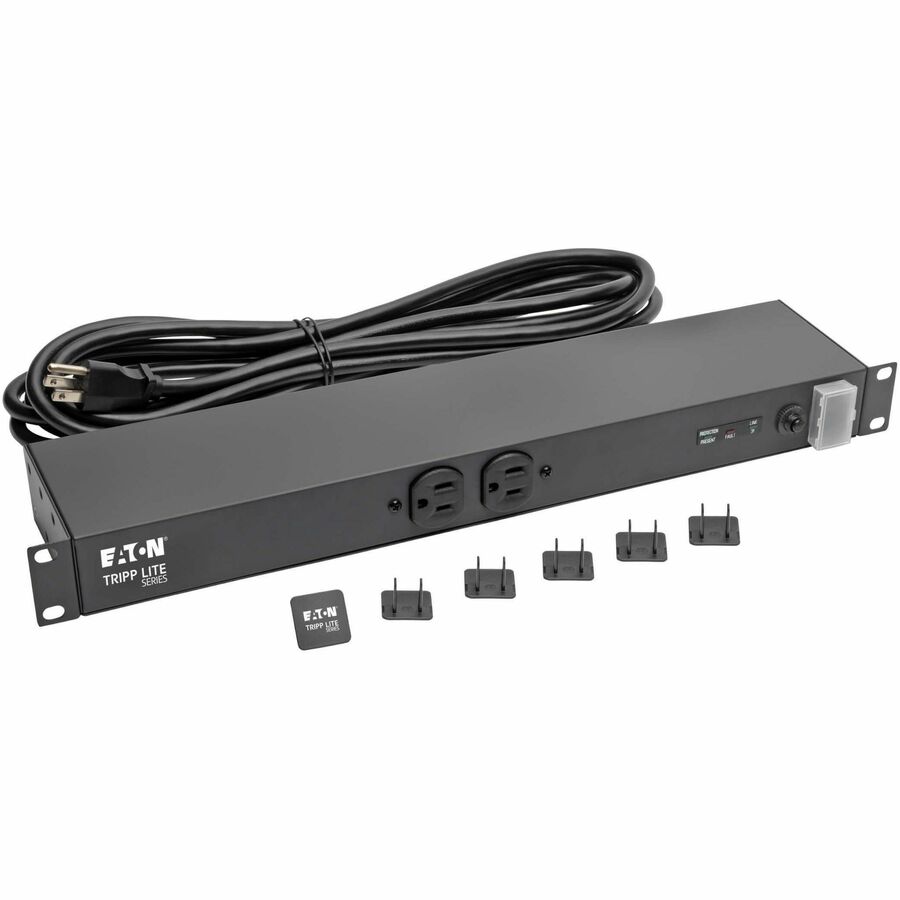

Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage .PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	ISOBAR12 ULTRA
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Name	Isobar 12-Outlets 120V Surge Suppressor
Product Type	Surge Suppressor/Protector
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacles	12 x NEMA 5-15R
Protection Type	Surge
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Maximum Line Current	15 A
Maximum Surge Current	96 kA
Power Handling	1800 VA
Surge Energy Rating	3840 J
Circuit Breaker	Yes
Controls/Indicators
Status Indicators	Line OK Line fault Protection present
Physical Characteristics
Color Family	Black
Product Color	Black
Power Cord/Cable Length	15 ft
Height	1.8"
Width	17.5"
Depth	4"
Weight (Approximate)	4.60 lb
Miscellaneous
Package Contents	Isobar 12-Outlets 120V Surge Suppressor Warranty Information Instruction Manual
Additional Information	Transparent locking switch cover prevents accidental shutoff 2 front and 10 rear receptacles
Compatibility	Internetworking Equipment Computers Telecommunications Systems Audio/Video Systems Security & Sound Reinforcement
Certifications & Standards	UL1449 (let through rating 330V) UL1283 cUL IEEE 587 category A and B
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime

General Information
Product	Power Outlet Strips
Number of Outlets	12
Surge Energy Rating	1280 J
Data Line Protection	Protected
Cord Length	15 ft
Mounting Style	Rack
Output Voltage	120 V
Current Rating	15 A

Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front / 10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 ultimate lifetime insurance coverage (US & Canada).

Key Buying Points:
Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks) 1200 joules / 96,000 amp network-grade AC surge suppression with EMI/RFI filtering

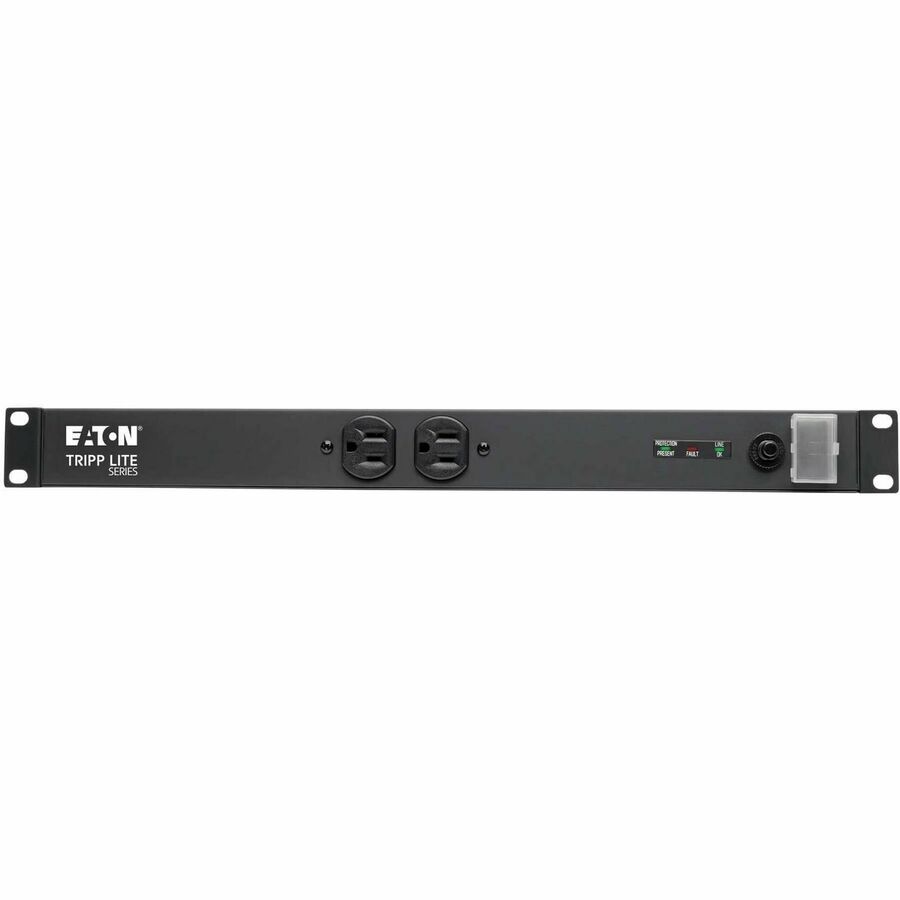

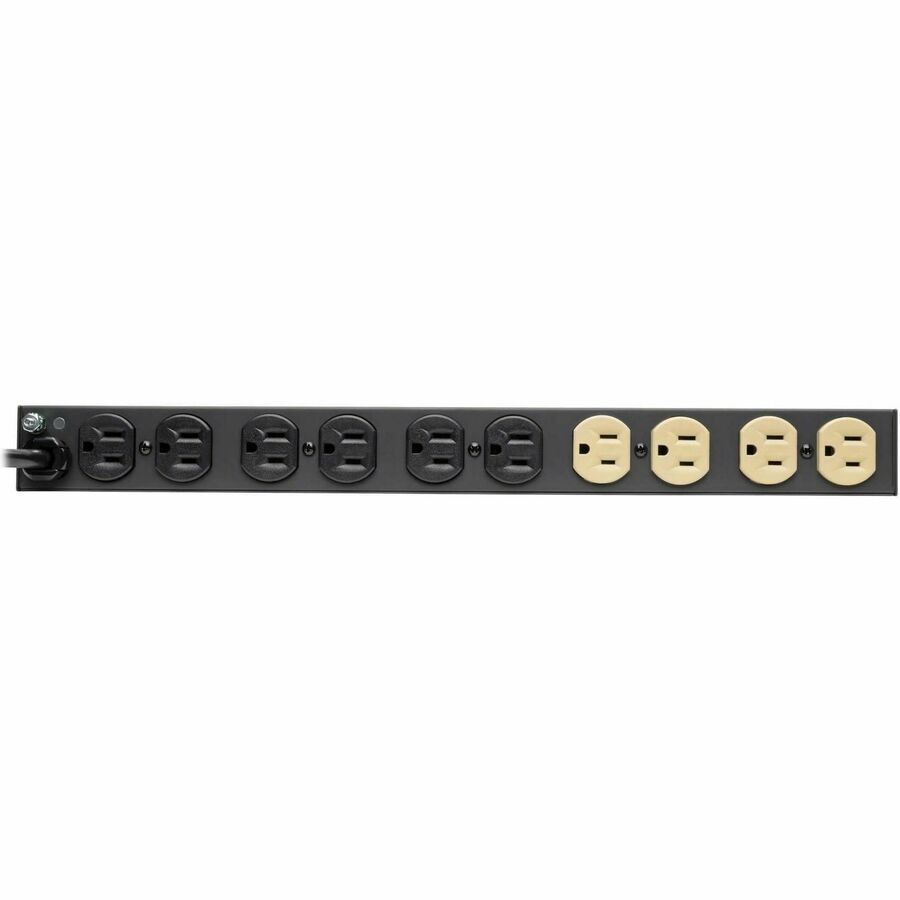

12 NEMA5-15R output receptacles (2 front / 10 rear)

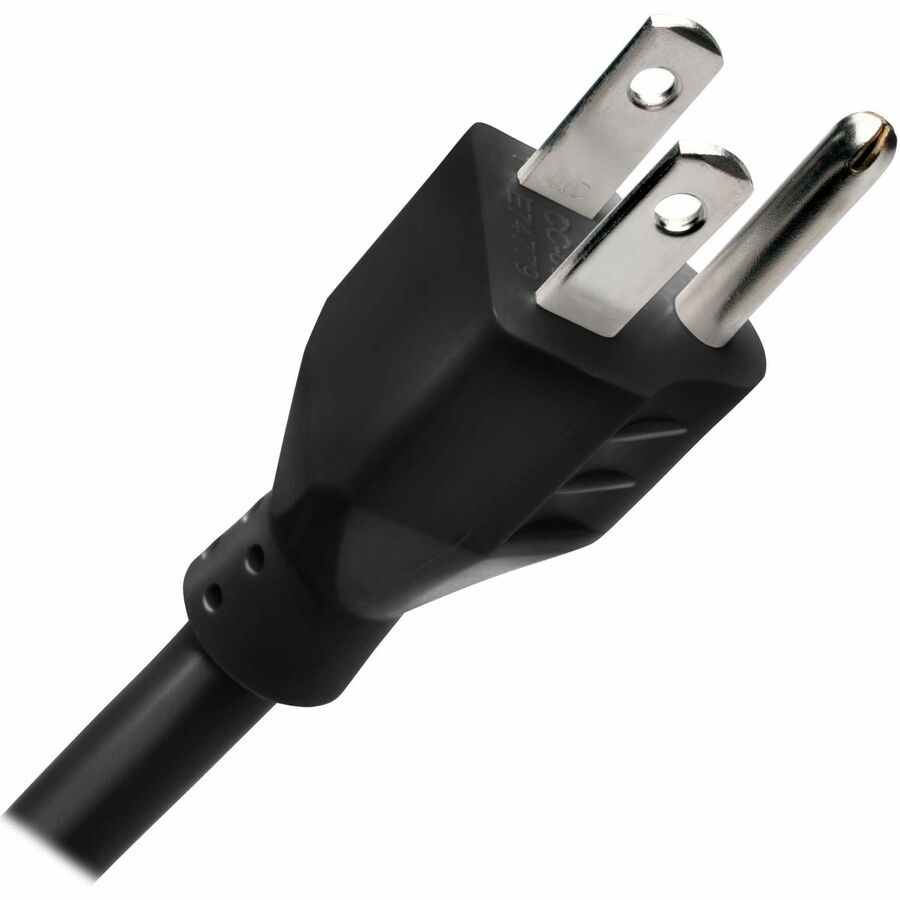

15 foot AC cord with NEMA5-15P straight-in plug connection
Diagnostic LEDs confirm proper wiring and suppressor operation
Lighted power switch confirms power on/off status
Snap-in switch guard prevents accidental turn off
15 amp capacity with circuit breaker
120VAC, 50/60Hz electrical compatibility
$25,000 Ultimate Lifetime Insurance (US & Canada)
Lifetime product warranty

Typical Applications:
Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio/video, security, sound reinforcement and more.

Package Includes:
ISOBAR12ULTRA Surge Suppressor
Warranty information
Instruction manual
Dimensions

Dimensions: 1.75 x 17.5 x 4
Height: 1.75 inch(es)

Region/Country Support

Region/Country Support : North America

UPS & Surge Suppressors

AC Receptacles (Surge Only): 12
Cord Length : 15 feet
Energy Rating (Joules): 1200
Equipment Protection Insurance : $25,000
Frequency (Input): 50/60
Frequency (Output): 50/60
Voltage (Input): 120
Voltage (Output): 120

Warranty Information

Warranty Terms: Limited lifetime
