I-Star USA iStarUSA IS-600S2UP ATX12V & EPS12V Power Supply
Mfg Part Number: IS-600S2UP , Item #: 962402

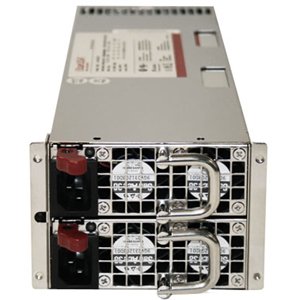

Image may not reflect the actual item.
Price: $613.26
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 27, 2025
No Sales Tax except these states
, PO and Wire.
IS-600S2UP ATX12V & EPS12V Power Supply offers your server and workstation zero down time with full 700W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | IS600S2UP |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Model | IS-600S2UP |
| Product Name | IS-600S2UP ATX12V & EPS12V Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 75% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Power |
| Protection Type | Over Current |
| Protection Type | Over Voltage |
| Protection Type | Short Circuit |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | -5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 3.3 V DC @ 32 A |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | -5 V DC @ 500 mA |
| Output Voltage Detail | -12 V DC @ 1 A |
| Output Voltage Detail | 12 V DC @ 48 A |
| Output Voltage Detail | 5 V DC @ 32 A |
| Output Current | 1 A |
| Output Current | 48 A |
| Output Current | 3 A |
| Output Current | 500 mA |
| Output Current | 32 A |
| Output Power | 600 W |
| Interfaces/Ports | |
| Receptacles | 1 x 4+4pin EPS12V Motherboard |
| Receptacles | 1 x 24-pin ATX Motherboard |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Hot Swappable Power Supply | Yes |
| Height | 3.3" |
| Width | 4" |
| Depth | 11.4" |
| Miscellaneous | |
| Additional Information |
|
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
