Athena Power AP-U1ATX30A 1U 300W POWER SUPPLY, 5V +3.3V 12V1/V2 -12V +5V-SB, Input: 88 ~ 264 VAC
Mfg Part Number: AP-U1ATX30A , Item #: 958589
Tariff Surcharge (10%): $6.50
, PO and Wire.

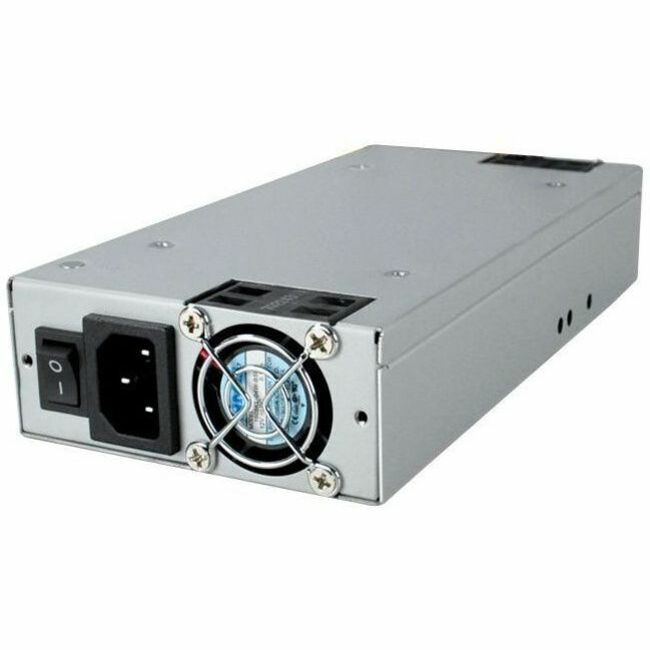

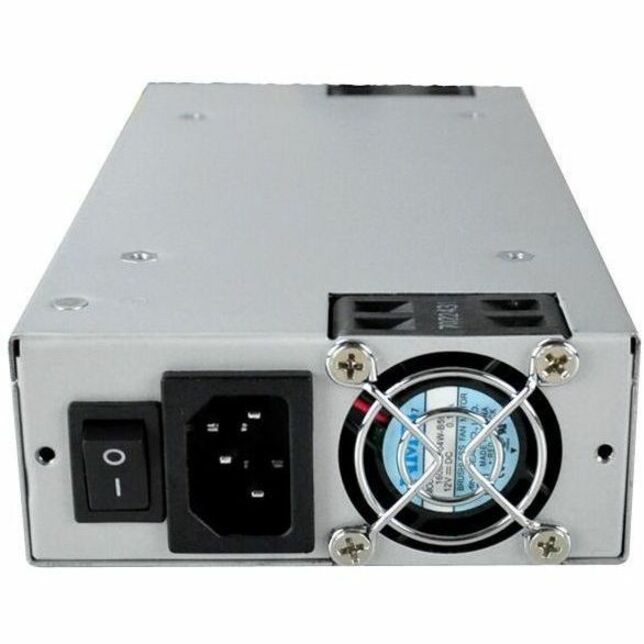

Introducing Athena Power's 300W 1U, AP-U1ATX30A, power supply. Designed for the 1U form factor to provide compact flexibility for small industrial computer rackmount chassis. Also includes, internal front and rear 40mm ball-bearing fan and thermal fan speed control for maximum heat & noise dissipation, however, it still supports 20 pin ATX v2.2 motherboards.
Active PFC and Full Range Input
The Active PFC and Full Range function provides a smarter PSU. Able to detect the differences of wattage that is needed to power up your system, you can be rest assured as it will provide and maintain the most suitable power needed.
Dual Fan

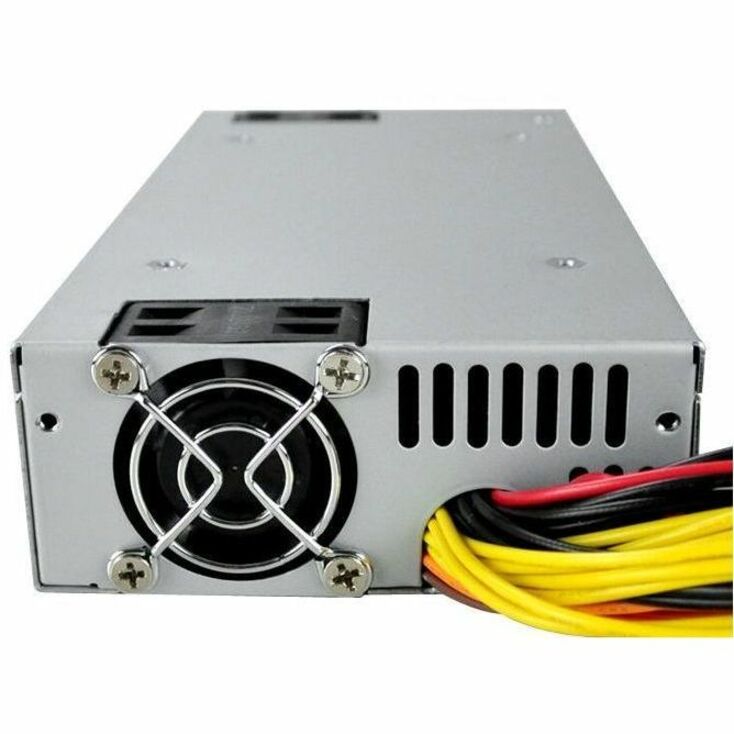

With its dual fan features located at the front and back of the power supply, the rear fan intakes the heat that is produced inside the system and pushes it through the front fan. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system. While some other PSU fans work differently, this dual fan design is targeted to maintain a reliable source of power and keeping the system cool. Some may second guess this dual fan feature because it will increase noise volumes, but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
Thermal fan speed control will detect the amount of heat generated by the computer. Using the speed controller to detect heat levels, it will automatically adjust the fan speed accordingly and the need to worry about heat levels, of a PSU, becomes almost non-existent.
| General Information | |
| Manufacturer | Athena Computer Power Corporation |
| Manufacturer Part Number | APU1ATX30A |
| Manufacturer Website Address | http://www.athenapower.com |
| Brand Name | Athena |
| Product Model | AP-U1ATX30A |
| Product Name | AP-U1ATX30A 300W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 2.2 |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 2 |
| Features | Compact |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 2 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 12 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage Detail | 5 V DC @ 10 A |
| Output Voltage Detail | 3.3 V DC @ 10 A |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | 12 V DC @ 6 A |
| Output Voltage Detail | -12 V DC @ 0.8 A |
| Output Current | 10 A |
| Output Current | 2.50 A |
| Output Current | 6 A |
| Output Current | 800 mA |
| Output Power | 300 W |
| Input Frequency | 63 Hz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Form Factor | 1U |
| Height | 1.6" |
| Width | 3.9" |
| Weight (Approximate) | 3 lb |
| Warranty | |
| Limited Warranty | 1 Year |
Introducing Athena Power's 300W 1U (AP-U1ATX30A) power supply. Designed for the 1U form factor to provide compact flexibility for small industrial computer rackmount chassis. Also includes internal front and rear 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation and it supports 20 pin ATX v2.2 motherboards.
Active PFC and Full Range Input
The Active PFC and Full Range function provides a smarter PSU. Able to detect the differences of wattage that is needed to power up your system you can be rest assured as it will provide and maintain the most suitable power needed for your system.
Dual Fan
With its dual fan features located at the front and back of the power supply the rear fan intakes the heat that is produced inside the server or system and pushes it through the front fan which is positioned towards the exit points of the server/system which keeps the motherboard and hard drives cool. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system, while some other PSU fans work differently this dual fan design is targeted to maintain a reliable source of power and keeping the system cooled. Some may second guess this dual fan feature because it will increase noise volumes but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.
