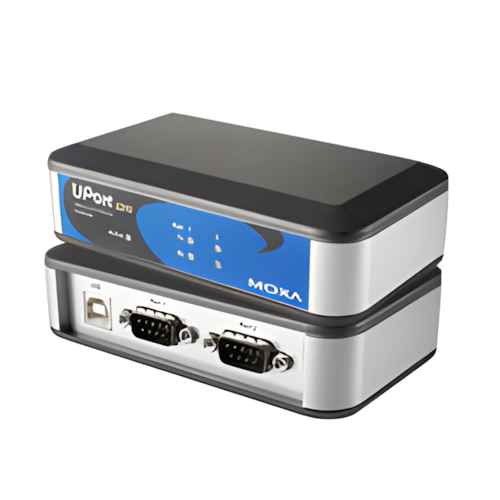

Moxa UPort 2210 2 Port USB to Serial converter, RS-232

MOXA Major Lines
Mfg Part Number:  UPort 2210
Image may not reflect the actual item.
Price: $178.83
Quantity:
In Stock: 22
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

Check here for other accessories.

Related Model(s):

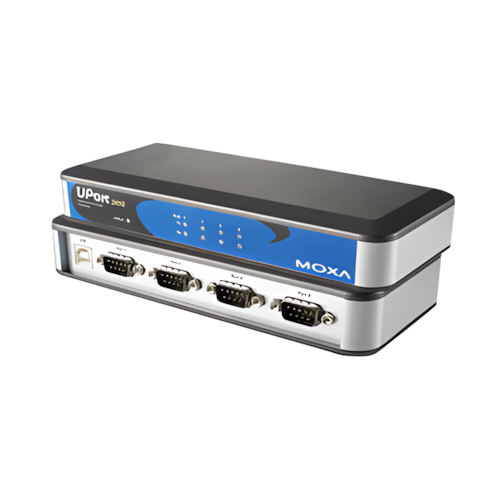

Moxa UPort 2410      In Stock
4-Port USB to Serial converter, RS-232
The UPort 2210 USB-to-serial converter allows you to connect 2 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort 2210 is a cost-effective solution for both new and legacy RS-232 devices, and is perfect for mobile, instrumentation, and point-of sale applications.
  • Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • Additional I/O and IRQ not needed
  • Built-in 15 KV ESD protection for all serial ports
  • Certified drivers provided for Windows (including Vista) and Linux
  • Supports Fixed-Base COM Utility for setting the initial extended COM port number
  • Easy monitoring with LEDs and management software
USB
Compliance USB 1.1/2.0 compliant
Connector(s) USB type B
Speed 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Serial Interface
Serial Standards RS-232
Number of Ports 2
Connectors DB9 male
Serial Line Protection
ESD Protection 15 KV embedded
Performance
Baudrate 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS
I/O Address Assigned by BIOS
IRQ Assigned by BIOS
FIFO 16 bytes
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems Windows (2000, XP/2003/Vista/2008 x86/x64), Linux 2.6 x86/x64
Physical Characteristics
Housing Polycarbonate (PC)
Dimensions 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75°C (-4 to 167°F)
Regulatory Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class B
Warranty
Warranty Period 5 years

Specification

Power Requirements
Power Consumption 240 mA @ 5 VDC
Power Consumption 140 mA @ 5 VDC
Serial Communication Parameters
Flow Control RTS/CTS, XON/XOFF
Flow Control RTS/CTS, XON/XOFF
Data Bits 5, 6, 7, 8
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Mark, Space
Parity None, Even, Odd, Mark, Space
Stop Bits 1, 1.5, 2
Stop Bits 1, 1.5, 2
FIFO 16 bytes
FIFO 16 bytes
Performance
Baudrate 50 bps to 921.6 Kbps
Baudrate 50 bps to 921.6 Kbps
Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Ambient Relative Humidity 5 to 95% (non-condensing)
MTBF (mean time between failures)
Time 4,221,778 hrs
Time 3,901,775 hrs
Database Telcordia (Bellcore), GB
Database Telcordia (Bellcore), GB
Physical Characteristics
Weight Product only: 120 g (0.26 lb)
Packaged: 325 g (0.72 lb)
Weight Product only: 210 g (0.46 lb)
Packaged: 455 g (1 lb)
Dimensions 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Dimensions 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
Housing Polycarbonate (PC)
Housing Polycarbonate (PC)
Serial Interface
Connector DB9 male
Connector DB9 male
Serial Standards RS-232
Serial Standards RS-232
Number of Ports 2
Number of Ports UPort 2210: 2
UPort 2410: 4
Serial Line Protection
ESD Protection 15 KV embedded
ESD Protection 15 KV embedded
USB Interface
Connector USB type B
Connector USB type B
Speed 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Speed 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Compliance USB 1.1/2.0 compliant
Compliance USB 1.1/2.0 compliant
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Standards and Certifications
EMI EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMI EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
Safety UL 60950-1
Safety UL 60950-1
EMS EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11
EMS EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11
EMC CE, FCC
EMC CE, FCC
Green Product RoHS, CRoHS, WEEE
Green Product RoHS, CRoHS, WEEE
Driver Support
Operating Systems Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64, Linux 2.6.x, 3.0.x
Operating Systems Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64, Linux 2.6.x, 3.0.x
Note Please refer to Moxa's website for the latest driver support information.
Note Please refer to Moxa's website for the latest driver support information.
Warranty
Warranty Period 5 years
Warranty Period 5 years
Details See www.moxa.com/warranty
Details See www.moxa.com/warranty
