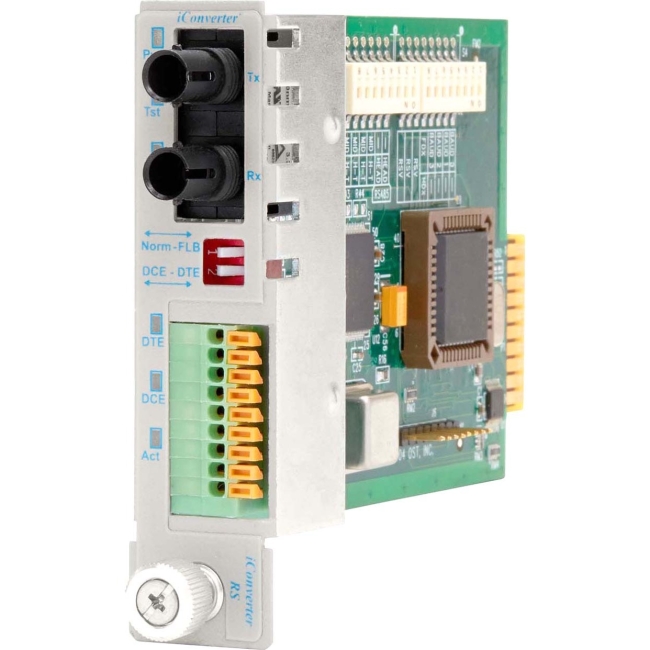

OMNITRON 8760-0 iConverter RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km Module
Mfg Part Number: 8760-0 , Item #: 924120
Image may not reflect the actual item.
Price: $556.37
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 19, 2025
No Sales Tax except these states
, PO and Wire.
The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
Main Specification
| General Information | |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 8760-0 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Brand Name | Omnitron Systems |
| Product Line | iConverter |
| Product Series | RS232 |
| Product Model | 8760-0-x |
| Product Name | iConverter RS232 DB-9 ST Multimode 5km Plug-In Module |
| Package Type | Retail |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Number of Serial Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 5.01 km |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Internal |
| Form Factor | Mountable |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
| Weight (Approximate) | 8 oz |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Serial Port Type:
|
| Compatibility |
|
| Certifications & Standards | Compliance:
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
