AMBIR

DS687-AS Ambir DS687 Duplex A6 ID Card Scanner

Mfg Part Number:  DS687-AS
Image may not reflect the actual item.
Price: $307.11 + Free Shipping
Quantity:
In Stock: 131
Last Updated: Jun 22, 2025
No Sales Tax except these states
, PO and Wire.

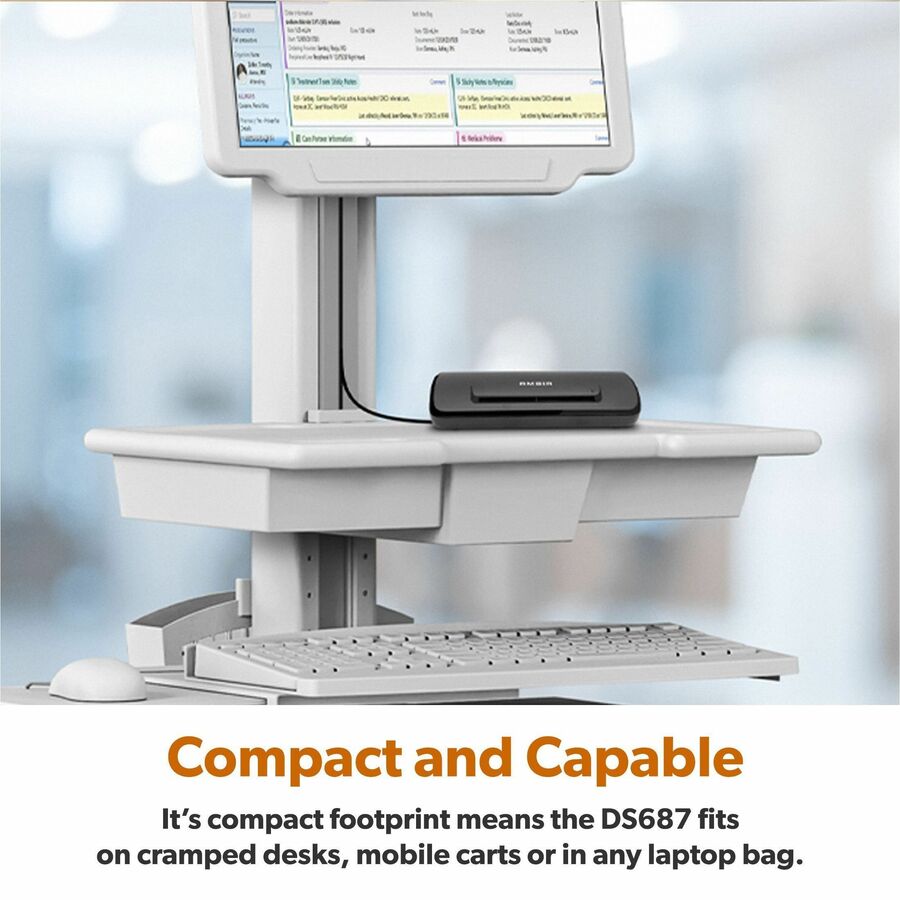

The ImageScan Pro 687 scans both sides of cards in a single pass. Because it's USB-powered, you'll never need to search for an outlet. Weighing only one pound and about the size of a stapler, it fits on any crowded desk or registration area.

Main Specification
General Information
Manufacturer Ambir Technology, Inc
Manufacturer Part Number DS687-AS
Manufacturer Website Address http://www.ambir.com
Brand Name Ambir
Product Line ImageScan
Product Model DS687
Product Name ImageScan Pro 687 Duplex Card Scanner with AmbirScan
Product Type Sheetfed Scanner
Technical Information
Large Format No
Image Sensor Type CIS
Optical Resolution (dpi) 600
Scan Color Color
Color Depth 48-bit
Grayscale Depth 8-bit
Maximum Mono Scan Speed (sec) 4.5
Media Type Insurance Card
Media Type ID Card
Media Type Photo
Media Type Receipt
Media Type License
Media Size Custom Size - 4.20" x 7.25"
Media Size A6 - 4.10" x 5.80"
Maximum Scan Size 4.13" x 10"
Scanning Modes Duplex
Duplex Scanning Yes
Interfaces/Ports
USB Yes
Software
Software Included
  • AmbirScan Lite
  • TWAIN driver
Operating System Supported Windows 10
Operating System Supported Windows 8
Operating System Supported Windows 7
Power Description
Power Source USB
Physical Characteristics
Form Factor Portable
Height 1.7"
Width 2.6"
Depth 8"
Weight (Approximate) 10.58 oz
Miscellaneous
Package Contents
  • ImageScan Pro 687 Duplex Card Scanner with AmbirScan
  • 1 x Carrying Case
  • 1 x USB cable
  • 2 x Calibration Sheets
  • 1 x Cleaning Sheet
  • 1 x Envelope Sleeve
Additional Information

If you are looking for an Ambir or Docketport scanner model that works with Athena, Omnitracs or Innsoft software products, this product is NOT compatible. Please contact an Omnitracs or Innsoft authorized reseller to purchase the scanner you need. Athena customers may contact Ambir Customer Service at 630-530-5400, option 1.
Certifications & Standards

TWAIN
Platform Supported PC
Country of Origin China
Environmentally Friendly Yes
Warranty
Limited Warranty 2 Year
product information
Simultaneously scan both sides of a driver`s license, identity or insurance card in one pass with the Ambir DS687 Duplex A6 ID card scanner. Featuring a 1.5 mm wide paper path, the DS687 adeptly handles even the most challenging scan jobs, including embossed characters. Ideal for capturing ID data at healthcare facility admissions, hospitality registration, point of sale environments and financial institutions or anywhere customers and clients need to provide identity data.

Product Type: Sheetfed Scanner
Image Sensor: CIS
Scan Resolution: 600 dpi Optical
Bit Depth: 48 bit Color / 8 bit Grayscale / 1 bit Monochrome
Scan Speed:
  • 4.5 Second Monochrome 200 dpi - Single-Sided
  • 6 Second - Duplex Mode
    		•
    Media Type:
  • ID Cards
  • Licenses
    		•
    Media Size: 4.2" x 7.25"
    Platform Support: PC
    Ports: USB 2.0
    Software Included: AmbirScan
    Power Source: USB
    Dimensions: 1.7" Height x 2.6" Width x 8" Length
    Compatibility:
  • Windows ME
  • Windows 2000
  • Windows XP
  • Windows Vista
    		•
    Green Compliance: Yes
    Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
    		•
    Standard Warranty: 1 Year
