ST1218T StarTech.com 8 Port VGA Video Extender over Cat 5

The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling.

Comprised of the transmitter unit only, the ST1218T requires one VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	ST1218T
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	8-Port VGA Video Extender over Cat 5
Packaged Quantity	1 Each
Product Type	Video Extender Transmitter
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	8
Maximum Operating Distance	500 ft
Video
Graphics Modes	SXGA
Maximum Video Resolution	1280 x 1024
Media & Performance
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 5
Physical Characteristics
Color Family	Black
Product Color	Black
Miscellaneous
Package Contents	8-Port VGA Video Extender over CAT5 1 x Power Adapter 1 x Instruction Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

The Converge A/V VGA over Cat5 video extender allows you to connect up to eight remote displays directly from one source. The video signal is sent to remote monitors over standard Cat5 UTP cable using RJ45 connectors and supports distances of up to 150m / 500ft. The ST1218T requires the ST121R remote receivers or the ST121EXT repeaters to connect additional displays in between the transmitter (ST1218T) and receiver (ST121R).

Allow Converge A/V to provide you with digital signage solutions. Applications include airports, bus depots, retail, or any large buildings where video needs to be delivered at long distances.

Features

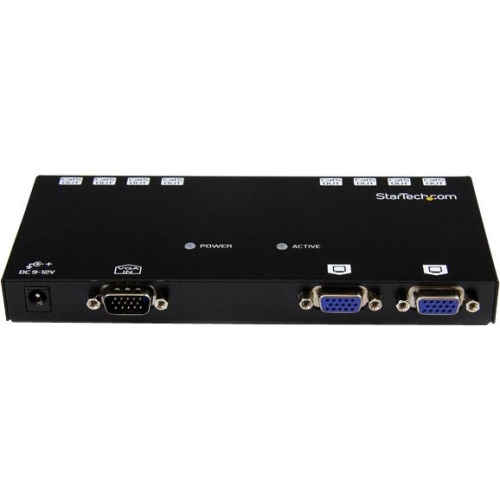

• Consists of 1 Base unit for distributing 8 ports through Cat5 and two VGA ports for local displays.
• Extends video cables by up to 500 ft. (150m)
• Provides crystal clear picture quality
• Pure hardware design, no software or drivers required and easy to install
• Supports VGA, SVGA, and Multisync monitors
• Use repeaters along your path to connect additional displays or using a receiver to connect directly to a remote display


Specifications

Warranty	1 Year warranty
Color	Black
Enclosure Type	Aluminum
Power Adapter Included	Yes
Carton Quantity	12
Maximum Resolution	1024 x 768 @ 500ft / 150m
	1280 x 1024 @ 300ft / 100m
Maximum Cable Length	5999.99 in [152400 mm]
	1600 x 1200 @ 150ft / 50m
Power Adapter - Amperage	600mA
Cable Type	Category 5 unshielded twisted pair (UTP)
Power Adapter - DC Voltage	9V DC
Center Tip Polarity	Positive
