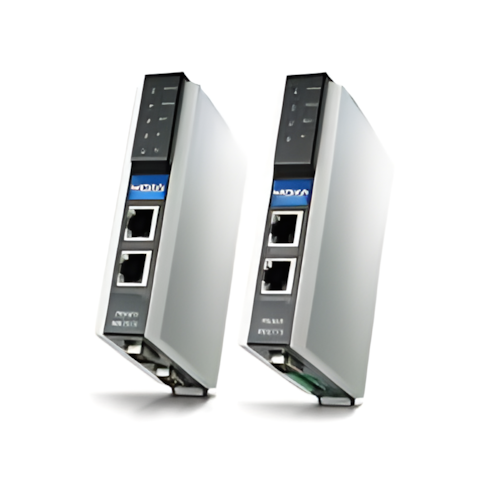

Moxa MGate MB3170-T 1 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway (-40C +75C)
MOXA Major LinesMfg Part Number: MGate MB3170-T , Item #: 860543
In Stock: 298
, PO and Wire.
Integration of TCP masters without alteration to Modbus RTU/ASCII network or software
The MB3270 can integrate Modbus TCP with Modbus RTU/ASCII,without modifying the existing Modbus RTU/ASCII architecture or software. With the serial redirector function, a serial master can maintain direct access to serial slave devices through a specially mapped serial port. This allows the serial and TCP masters to access serial slaves simultaneously.
Cascading Ethernet ports for easy wiring
Advanced models of the MGate™ MB3000 series have two Ethernet ports to make network wiring easier. Dual Ethernet ports allow users to string multiple Modbus gateways together using standard RJ45 Ethernet cables, eliminating the need for a separate Ethernet switch.
Redundant power inputs
Advanced models of the MB3000 series have dual power inputs for greater reliability. The power inputs allow simultaneous connections to two live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus gateways ideal for demanding industrial applications.
Warning by relay output
A relay output is provided for the Ethernet link and power input status. The relay output gives maintenance engineers an additional tool for troubleshooting and maintenance.
Priority control for urgent commands (patent pending)
As Modbus networks increase in size and complexity, the lag time between commands and responses becomes a major concern. Advanced models of the MB3000 series provide a priority control function for urgent commands, allowing users to force certain commands to get an immediate response. Depending on your system?s requirements, different methods are available to define which commands receive priority.
Features and Benefits
- Configuration is exceptionally easy
- Slave mode supports 16 TCP masters and up to 62 serial slaves at the same time
- Master mode supports 32 TCP slaves at the same time
- Emergency request tunnels ensure QoS control
- Serial redirector function provided
- Embedded Modbus protocol analyzer
- Redundant dual DC power inputs
- Built-in Ethernet cascading for easy wiring
| LAN Interface | |
| Number of Ports | 2 |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector(s) | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Serial Interface | |
| Serial Standards | RS-232/422/485, software selectable |
| Number of Ports | MGate
MB3170/3170I: 1 MGate MB3270/3270I: 2 |
| Connectors | MB3170/3170I: DB9
male for RS-232, Terminal block for RS-422/485 MB3270/3270I: DB9 male x 2 |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| ESD Protection | ESD Protection: 15 KV for all signals |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Software | |
| Operation Modes | RTU Slave, RTU Master, ASCII Slave, ASCII Master |
| Utilities | MGate™ Manager Suite for Windows 98, ME, NT, 2000, XP, 2003, Vista |
| Multi-Master and Multi-Drop | Master mode: 32
TCP slaves Slave mode: 16 TCP masters (request queue 32-deep for each master) |
| Bonus Feature | Smart Routing, Serial Redirectory, Priority Control |
| Physical Characteristics | |
| Enclosure | Polycarbonate (2 mm) |
| Dimensions | Without ears 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) With ears extended 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0
to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Power Line Protection | 1 KV burst (EN61000-4-4: EFT/B), 0.5 KV surge (EN61000-4-5) |
| Regulatory Approvals | |
| Safety | UL (UL60950-1), TÜV (EN60950-1) |
| EMC | CE (EN55022 Class A and EN55024), FCC Part 15 Subpart B Class A |
| Hazardous Location | UL/cUL Class 1 Division 2 Groups A, B, C, D; ATEX Class 1 Zone 2 (pending) |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-23 |
| Vibration | IEC60068-2-6 |
| EN61000-4-2 (ESD) | Level 3 |
| EN61000-4-3 (RS) | Level 3 |
| EN61000-4-4 (EFT) | Level 4 |
| EN61000-4-5 (Surge) | Level 3 |
| EN61000-4-6 (CS) | Level 3 |
| EN61000-4-8 | Passed |
| EN61000-4-11 | Passed |
| EN61000-4-12 | Passed |
| Marine | DNV (pending) |
| Warranty | |
| Warranty Period | 5 years |
Specification
| Power Requirements | |
| Power Consumption | MGate MB3170: 435 mA (max.) MGate MB3170I: 555 mA (max.) MGate MB3270: 435 mA (max.) MGate MB3270I: 510 mA (max.) |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Software | |
| Utilities | MGate Manager for Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| Operation Modes | RTU Slave, RTU Master, ASCII Slave, ASCII Master |
| Multi-master and Multi-drop | Master mode: 32 TCP slaves Slave mode: 16 TCP masters (request queue 32-deep for each master) |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Bonus Features | Smart Routing, Serial Redirection, Priority Control |
| Serial Communication Parameters | |
| Flow Control | RTS/CTS, DTR/DSR (RS-232 only) |
| Data Bits | 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Baudrate | 50 bps to 921.6 Kbps |
| Ethernet Interface | |
| Connector | 8-pin RJ45 |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Number of Ports | 2 (1 IP) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | MGate MB3170: 360 g MGate MB3270: 380 g |
| Dimensions | Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in) |
| Housing | Plastic |
| Serial Interface | |
| Connectors | MB3170/3170I: DB9 male for RS-232, Terminal block for RS-422/485 MB3270/3270I: DB9 male x 2 |
| Serial Standards | RS-232/422/485, software selectable |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| ESD Protection | 15 KV for all signals |
| Number of Ports | MB3170/3170I: 1 MB3270/3270I: 2 |
| Pull High/Low Resistor for RS-485 | 1 KΩ, 150 KΩ |
| Terminator for RS-485 | 120 Ω |
| Reliability | |
| MTBF (mean time between failures) | MGate MB3170: 210,794 hrs MGate MB3270: 125,234 hrs |
| Serial Signals | |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11, EN 61000-4-12 |
| EMC | CE, FCC |
| Freefall | IEC 60068-2-23 |
| Marine | DNV |
| Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
