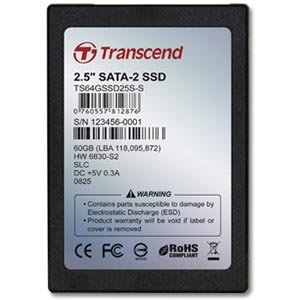

TS64GSSD25S-S Transcend 64 GB 2.5" Internal Solid State Drive

This SATA Solid State Disk (SSD) comes in a standard 2.5-inch size and has an SATA interface which means it can be used in most notebook computers and mainstream PCs just like a regular hard drive. Instant access speeds, large capacity, high reliability, low power consumption and anti-shock features, making it clear that this Transcend's SSD is the ideal drop-in replacement for conventional Hard Disk Drives. Built-in wear leveling technology also ensures ultra-long lifespan and data-retention durability for prolonged use. With no moving parts, absolutely no noise is generated from the SSD, and much less power is needed for operation, which means less heat is generated as well.

General Information
Manufacturer	Transcend Information, Inc
Manufacturer Part Number	TS64GSSD25S-S
Manufacturer Website Address	http://www.transcend-info.com
Brand Name	Transcend
Product Name	Serial ATA/150 Internal Solid State Drive
Product Type	Solid State Drive
Technical Information
Storage Capacity	64 GB
Drive Performance
Maximum Read Transfer Rate	163 MB/s
Maximum Write Transfer Rate	142 MB/s
Interfaces/Ports
Drive Interface	SATA
Drive Interface Standard	SATA/150
Physical Characteristics
Drive Type	Internal
Form Factor	2.5"
Height	0.4"
Width	2.8"
Depth	3.9"
Weight (Approximate)	1.69 oz
Miscellaneous
Package Contents	Serial ATA/150 Internal Solid State Drive 4 x Screws Warranty Card Quick Instruction Guide
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

Transcend's SATA Solid State Drive (SSD) is an ideal replacement for your Hard Disk Drive. Featuring solid state memory, it has no moving parts, uses less power, and is not susceptible to mechanical failure as a result of vibrations. With a thickness of only 9.5mm, it is very easy to install in PCs and notebooks. The 2.5-inch SATA interface has a large storage capacity, high reliability, and anti-shock resistance, which makes it the perfect choice to replace your old, power hungry Hard Drive.

Features

• Fully compatible with devices and O/S that support the SATA I standard
• Built-in ECC (Error Correction Code)
• Wear-leveling algorithm ensures reliable data transfer
• RoHS Compliant
• Low Power Consumption
• Certification: CE, FCC, BSMI
• 2-Year Warranty
• For OS installations, SLC version is recommended!

Specification

• Size: 100mm x 69.85mm x 9.5mm
• Op. Voltage: 5V
• Op. Temperature: 0C(32F) to 70C(158F)
• MTBF: 1M hours
• [SLC] Max Read 135MB/s, Max Write 96MB/s. (8GB-32GB)
  Max Read 163MB/s, Max Write 142MB/s. (64GB)
• MLC] Max Read 148MB/s, Max Write 90MB/s. (32GB-64GB)
  Max Read 145MB/s, Max Write 92MB/s (128GB)
• Shock: 1500G, 0.8ms
• Vibration: 3.0G, 5-800Hz
