TK-204UK TRENDnet 2-port DVI USB KVM Switch with Audio Kit

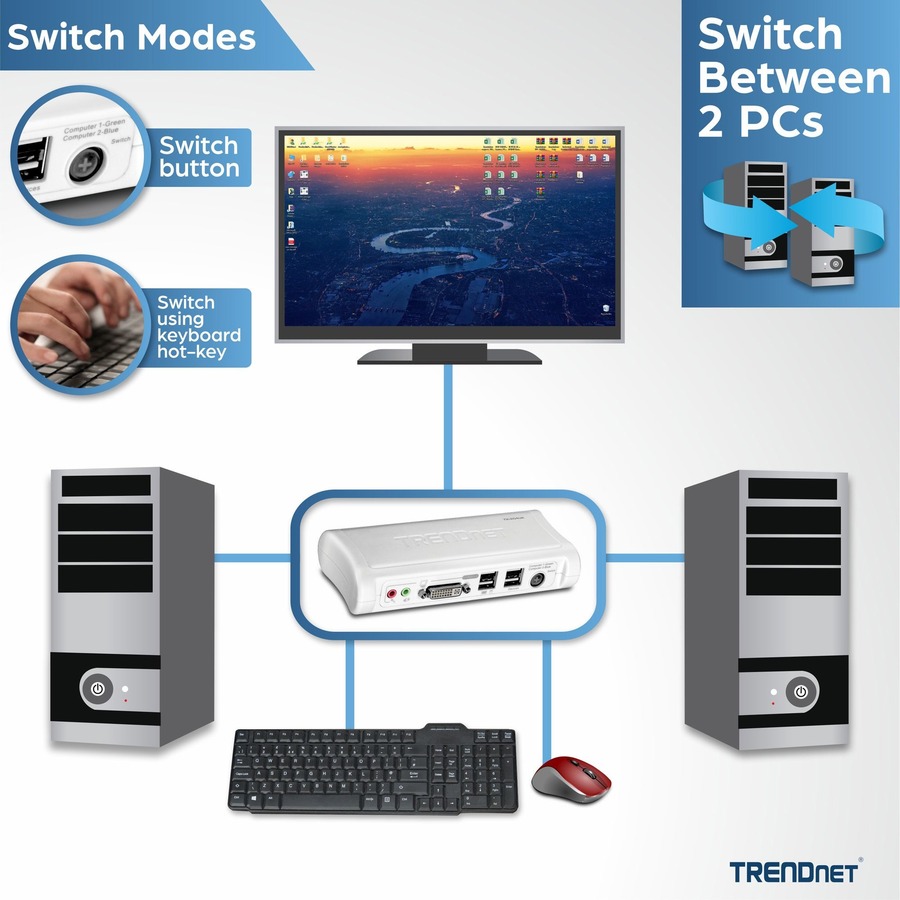

The 2-Port DVI USB KVM Switch Kit with Audio manages two computers with one set of console controls. Control two computers with DVI and USB ports at the touch of a button with one set of microphone/speakers, USB keyboard, USB mouse, and DVI monitor.

Simply plug everything in to start sharing your HD DVI monitor with two Mac or Windows computers. No need for additional cabling, all required cables are included. Network printers, storage drives, flash drives and more by connecting to the two bonus USB ports on the front of the switch. Listen to music on one computer while working on the other. Switch between computer by pressing the convenient switch button or by programming shortcut Hotkey commands.

• 2 x USB keyboard and mouse ports
• 2 x bonus USB 2.0 ports
• 2-way audio support for uninterrupted multimedia experience across multi-platforms
• Independent simultaneous switching of both PC and audio channels
• Advanced keyboard and mouse support
• Multi-platform support for Windows, Mac, and Linux
• Hot-plug PCs without powering down the KVM switch (Window OS)
• Digital video resolution up to 1920 x 1200 and analog video resolution up to 2048 x 1536
• Integrated High-Bandwidth Digital Content Protection (HDCP) and Transition Minimized Differential Signaling (TDMS)
• No CD installation required-simply plug and go
• 2-year limited warranty

*For optimal performance, we recommend using a wired keyboard and mouse. Please go tohttp:/www.trendnet.com/downloadsto download the client switching software.

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TK204UK
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Name	2-Port DVI/USB KVM Switch Kit w/ Audio (Includes 2x KVM cables)
Product Condition	New
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	2
Video
Graphic Mode	WUXGA
Maximum Video Resolution	1920 x 1200
Interfaces/Ports
USB	Yes
DVI	Yes
Number of USB Ports	4
Number of DVI Ports	3
Power Description
Input Voltage	5 V DC
Physical Characteristics
Height	3"
Width	7"
Depth	9"
Weight (Approximate)	2.20 lb
Miscellaneous

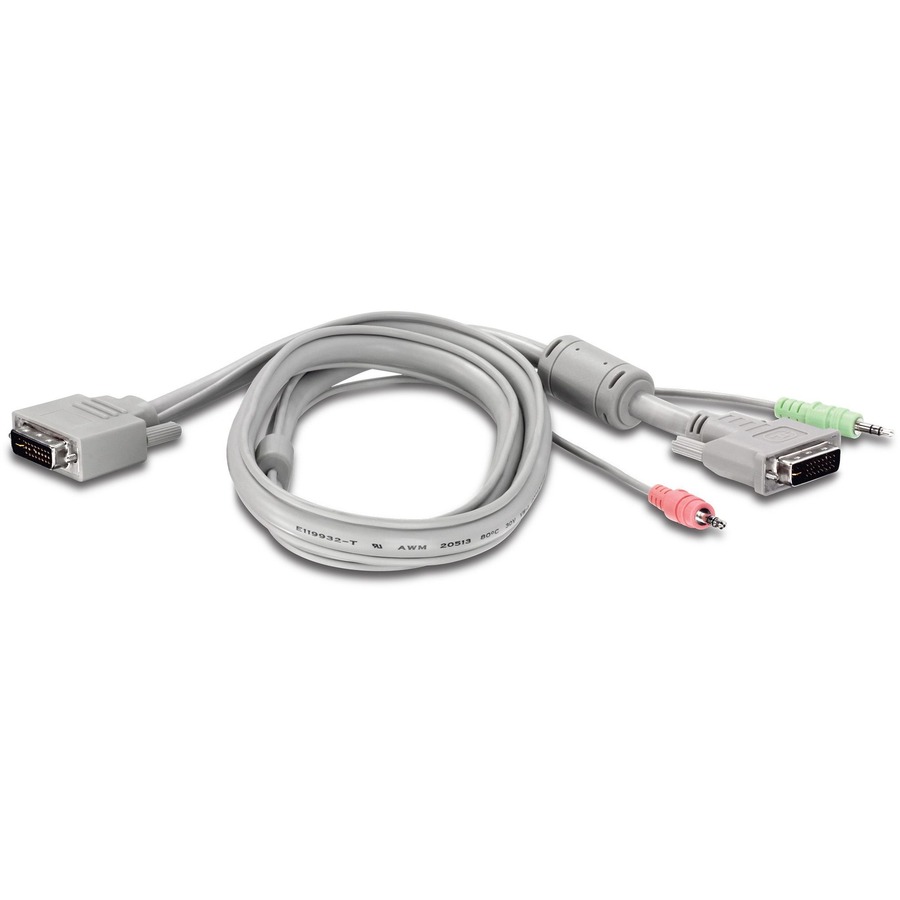

Package Contents	2-port DVI USB KVM Switch with Audio Kit Quick Installation Guide 2 x DVI/Audio combo KVM cable (1.2 m/4 ft.) 2 x USB type A to type B cable (1.2 m/4 ft.) Power Adapter (5V DC, 2A)
Environmentally Friendly	Yes
Country of Origin	Taiwan
Warranty
Limited Warranty	2 Year

The 2-port DVI USB KVM Switch with Audio Kit allows you to control two computers with one set of console controls featuring high definition Digital Video Image (DVI) technology. Manage two computers that have DVI and USB ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone and speakers. Enjoy DVI quality images from both of your computers. No need for additional cabling, all required cables are included. Listen to music on one computer while working on the other. With Hot-Plug, Auto-Scan and Hot-Key operating features, this versatile device is the perfect choice for managing two computers.

Product Type:	KVM Switch
Number of Computers:	2
Number of Users:	1
Video Signals:	WUXGA
Graphics Resolution:	1920 x 1200 Maximum

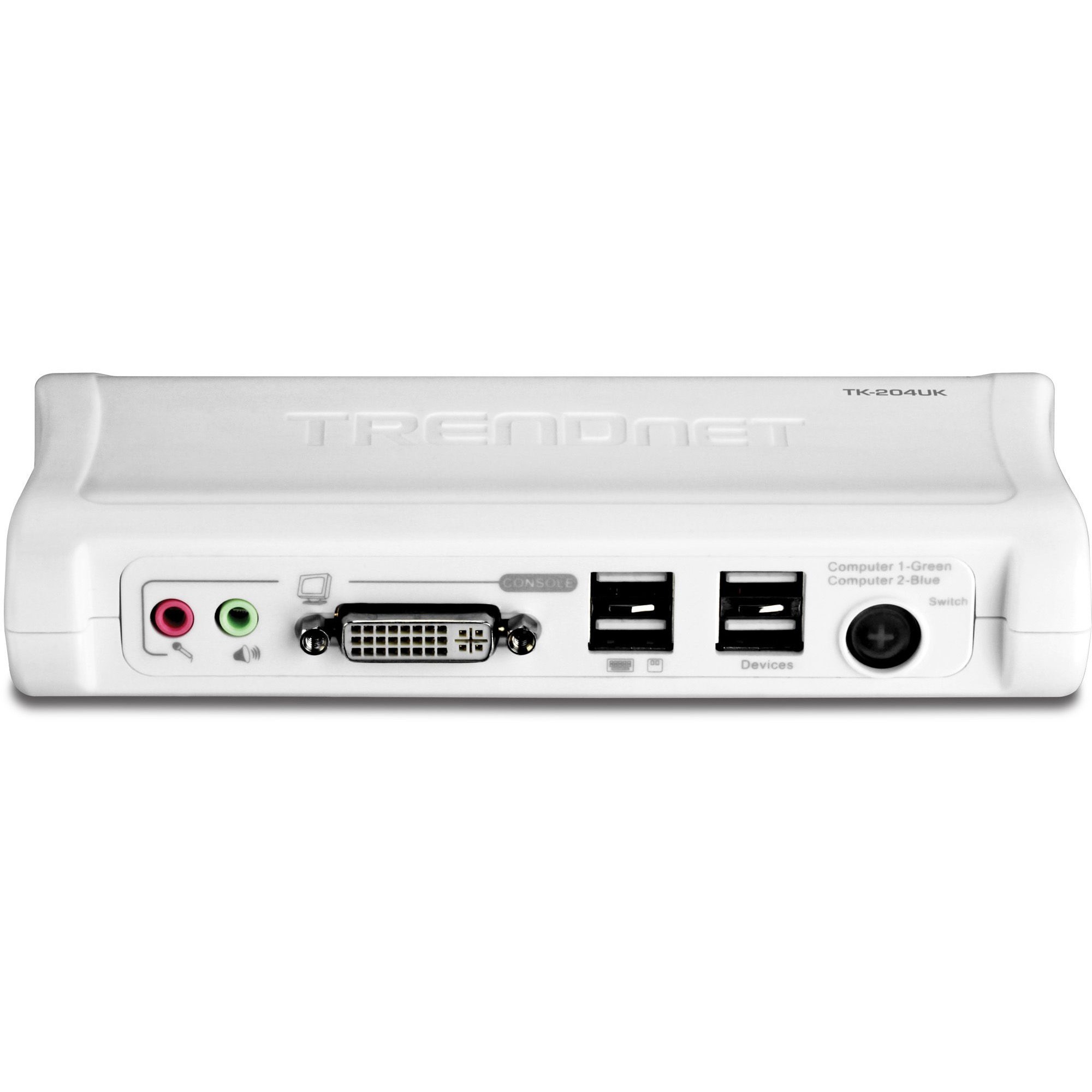

User/Console Ports:	2 x 4-pin Type A USB 1 x 15-pin DVI Female Video 1 x 3.5mm Mini-phone Audio 1 x 3.5mm Mini-phone Microphone

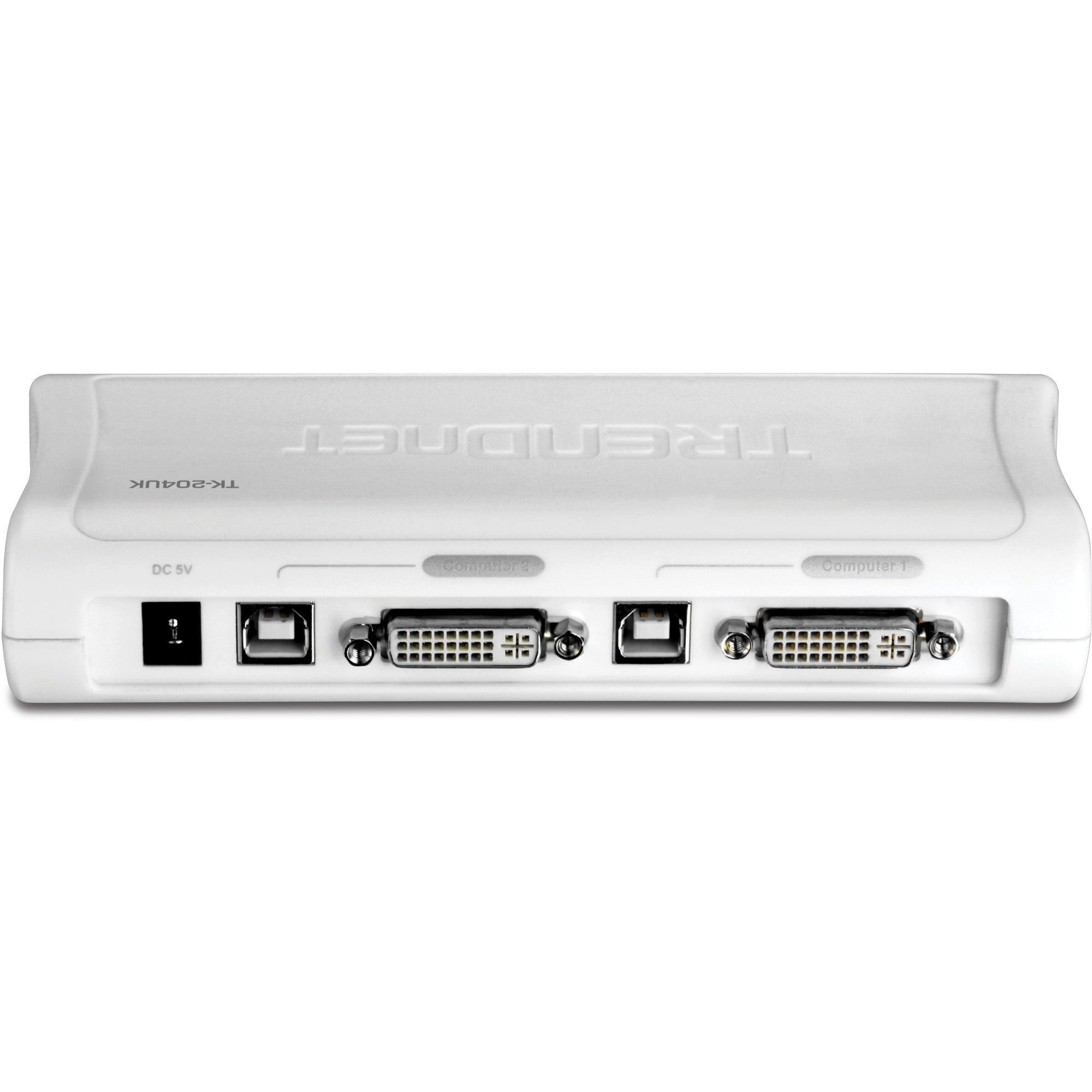

Computer Ports:	2 x 4-pin Type B USB 2 x DVI-I
Input Voltage:	5 V DC Device Input
Dimensions:	1.06" Height x 2.58" Width x 6.06" Depth
Package Contents:	2-port DVI USB KVM Switch with Audio Kit 2 sets of DVI-I dual link cables Multi-Language User's Guide Power Adapter
Green Compliance:	Yes
Green Compliance Certificate/Authority:	RoHS WEEE
Standard Warranty:	2 Year
