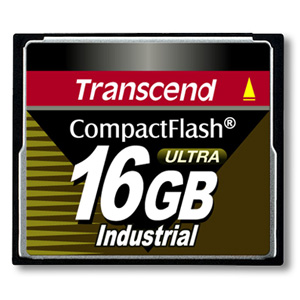

TS16GCF100I Transcend 16GB Compact Flash Card

Specially designed to meet the strict demands of high-end equipment and machines that run at extreme temperatures. Aside from their excellent temperature flexibility, these cards are exceptionally resistant to shock, vibration and dust, while consuming less power and maintaining ultra fast data transfer speeds. Their superb compatibility and durability makes them suitable for use in standard PCMCIA-ATA equipped devices.

General Information
Manufacturer	Transcend Information, Inc
Manufacturer Part Number	TS16GCF100I
Manufacturer Website Address	http://www.transcend-info.com
Brand Name	Transcend
Product Name	16GB Compact Flash Card
Product Type	CompactFlash
Technical Information
Number of Memory Cards	1
Storage Capacity	16 GB
Physical Characteristics
Form Factor	CompactFlash Type I
Width	1.4"
Thickness	129.9 mil
Length	1.7"
Weight (Approximate)	0.40 oz
Miscellaneous
Package Contents	16GB Compact Flash Card Quick Installation Guide Warranty Card Carrying Case
Compatibility	Industrial PCs Embedded Systems Medical Instruments Factory Automation Systems Network Infrastructures Industrial Equipment
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

The Ultra Speed Industrial CompactFlash (Type I) memory card comes with capacities up to 8GB. Specially designed to meet the strict demands of high-end equipment and machines that run at extreme temperatures. Aside from their excellent temperature flexibility, these cards are exceptionally resistant to shock, vibration and dust, while consuming less power and maintaining ultra fast data transfer speeds. Their superb compatibility and durability makes them suitable for use in standard PCMCIA-ATA equipped devices such as industrial PCs, embedded systems, medical instruments, factory automation systems, network infrastructures and other industrial equipment.

Features

• Manufactured with brand-name SLC NAND Flash chips for extra long life and stability
• Wide-range operating temperature
• Conforms to CF Type I standards
• Data transfer rate: 25-40MB/sec(Max)*
• Supports Ultra DMA mode 0-4**
• CompactFlash 4.1 compliant
• Built-in hardware ECC technology for detecting and correcting errors
• ATA interface
• Low power consumption
• Multi-platform compatibility
• RoHS compliant
• Two-year Warranty

* Note:Based on internal Transcend testing with Testmetrix. Actuel transfer speed may vary due to capacity of flash card and host hardware, software and usage.
** Note: Default setting: Ultra DMA 4/ Fixed Disk Mode (can be customized for industrial users)

Specification

Size	42.8mm x 36.4mm x 3.3mm (L x W x H)
Op. Voltage	3.3V/5V
Op. Temperature	-40°C(-40°F) to 85°C(185°F)
Durability	10,000 insertion/removal cycles
Endurance	2,000,000 times
MTBF	1,000,000 hours
Mechanical Shock Test	1500G
Vibration Test	20G (Peak-to-Peak) 20Hz to 2000Hz (Frequency)

Download DataSheet
