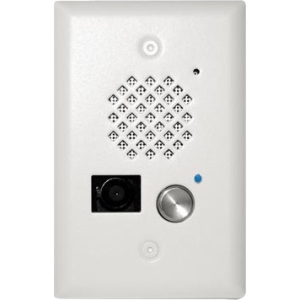

The E-50 Series Video Entry phones are compact, weather and vandal resistant speaker phones designed to provide two-way handsfree audio communication and color composite video of who is at your door or gate. The E-50's compact size allows it to be mounted in a standard single gang electrical box. The E-50 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-50 faceplates (PNL50) can be purchased separately and are available in all five standard finishes.
The E- 50's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. Note: LED not available on all models. Contact Viking for more information.
The E-50 entry phones can share a single phone line with house or small business telephones when used with a Viking model C-200, C-250 or C-2000B Entry Phone controller. The E-50 entry phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer.
The E-50 features a built-in high resolution color video camera, microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.
| General Information | |
| Manufacturer | Viking Electronics, Inc |
| Manufacturer Part Number | E-50-WH |
| Manufacturer Website Address | http://www.vikingelectronics.com |
| Brand Name | Viking Electronics |
| Product Series | E-50 |
| Product Model | E-50-WH |
| Product Name | E-50-WH Video Door Phone |
| Product Type | Video Door Phone |
| Technical Information | |
| Maximum Wiring Distance | 150 ft |
| Display & Graphics | |
| Screen Resolution | 640 x 480 |
| Camera | |
| Image Sensor Type | CMOS |
| Minimum Illumination | 0.3 lux |
| Power Description | |
| Input Voltage | 18 V DC |
| Physical Characteristics | |
| Product Color | Satin White |
| Miscellaneous | |
| Additional Information |
|
| Warranty | |
| Limited Warranty | 2 Year |
