STARTECH

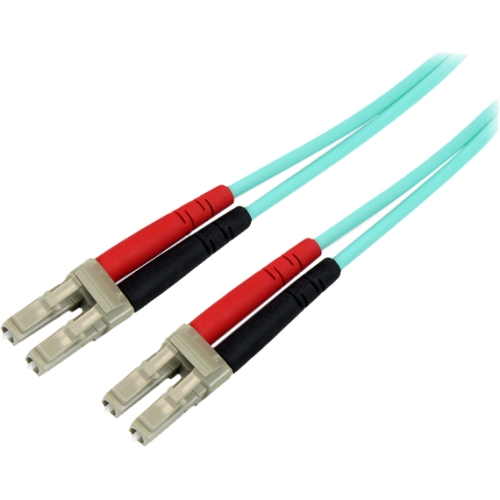

A50FBLCLC1 StarTech.com 10Gb Aqua Fiber Patch cable - LC multi-mode (M) - LC multi-mode (M) - 1 m - fiber optic - 50 / 125 micron - aqua
Mfg Part Number: A50FBLCLC1 , Item #: 746221
, PO and Wire.
The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | A50FBLCLC1 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 3.28 ft |
| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Device Supported | Switch |
| Device Supported | Router |
| Device Supported | Hub |
| Data Transfer Rate | 10 Gbit/s |
| Features | Molded |
| Features | Flame Retardant |
| Features | Halogen Free |
| Features | Corrosion Resistant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Weight (Approximate) | 0.03 lb |
| Shipping Height | 0.55" |
| Shipping Width | 7.87" |
| Shipping Weight (Approximate) | 0.80 oz |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
Features
- A more durable cable design
- A solution that is cost effective and supports longer distances
- Attenuation loss meets or exceeds industry standards
- Designed to be used in 10 Gb Ethernet applications
| Connector A | 4 - Fiber Optic LC Male |
| Color | Aqua |
| Fiber Size | 50/125 |
| Fiber Type | Multi Mode |
| Cable Jacket Type | Low Smoke Zero Halogen |
| Maximum Cable Length | 39.37 in [1000 mm] |
| Carton Quantity | 200 |
| Fiber Type | Multimode Duplex (0M3) |
| Outside Diameter | 3.0mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| General Specifications | 10gb Ethernet speed to 300 meters @850nm |
| Warranty | Lifetime warranty |
