Tripp Lite NetDirector B021-000-19 Rackmount Console

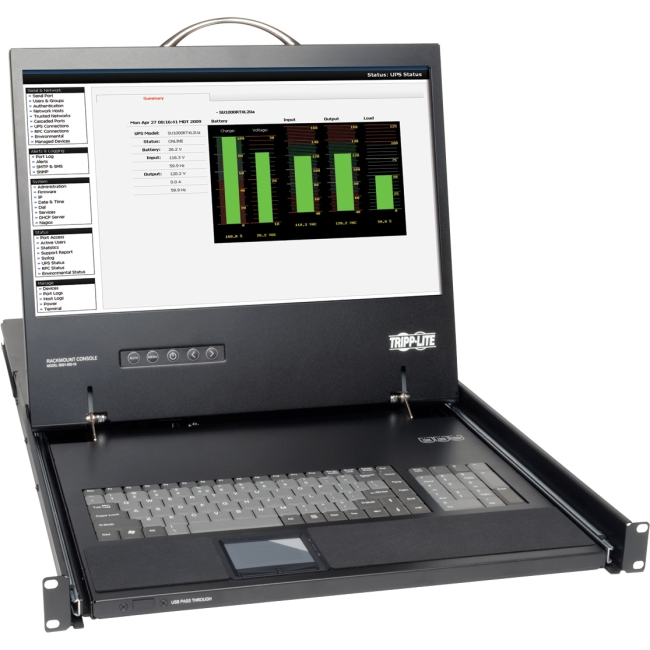

Tripp Lite's B021-000-19 1U Rackmount Console features an integrated 19" LCD display, full 88-key keyboard and touch pad, all in a 1U rackmountable housing. The included KVM cable kit allows for connection to a PS/2 computer or KVM, and a PS/2 to USB adapter is included, which can be used to connect to a USB computer or KVM. The unit features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.. Your peripheral device connects to the USB type A port on the front of the unit, and your computer connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. Constructed of heavy-duty steel housing. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B02100019
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	B021-000-19
Product Name	B021-000-19 Rack Mmount LCD
Product Type	LCD Rack Console
Technical Information
KVM Switch	No
Number of Computers Supported	1
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Display Screen Type	LCD
Screen Mode	WXGA
Screen Resolution	1366 x 768
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
USB	Yes
VGA	Yes
Number of USB Ports	2
Number of VGA Ports	1
Physical Characteristics
Product Material	Steel
Rack Height	1U
Height	1.7"
Width	19"
Weight (Approximate)	36 lb
Miscellaneous
Package Contents	B021-000-19 Rack Mmount LCD 1 x KVM Cable Kit ( HD15M to HD15M + 2 PS2 Male ) 1 x PS/2 to USB Adapter 1 x C13 to 5-15P Power Cord 1 x User Manual Mounting Hardware
Certifications & Standards	B021-000-19: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year

Tripp Lite's B021-000-19 NetDirector 1U Rackmount Console features an integrated 19" LCD display, full 88-key keyboard and touch pad, all in a 1U rackmountable housing. This console is designed for use with a server or a KVM switch with PS/2 console connectors.

Display Type	KVM console
Height (Rack Units)	1U
Width	19 in
Depth	25.6 in
Height	1.7 in
Enclosure Color	Black
Display
Diagonal Size	19"
Max Resolution	1280 x 1024
Max Sync Rate (V x H)	65 Hz
Signal Input	VGA
Features	OSD-Digital Display Director
Input Device
Type	Keyboard, touchpad
Expansion / Connectivity
Interfaces	1 x keyboard / mouse / video - 15 pin HD D-Sub (HD-15)
Miscellaneous
Rack Mounting Kit	Included
Compliant Standards	DDC-2B
Power
Form Factor	Internal
Voltage Required	AC 120/230 V
Manufacturer Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	0 - 80%
