PEPPERL+FUCHS

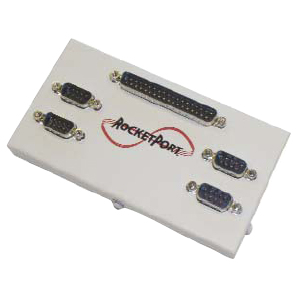

PEPPERL+FUCHS 30050-2 Comtrol RocketPort 4-Port DB9M Interface Hub

Mfg Part Number:  30050-2
Image may not reflect the actual item.
Price: $279.99
Quantity:
In Stock: 1
Last Updated: Jul 21, 2025
No Sales Tax except these states
, PO and Wire.

The next generation RocketPort 4-Port Interface has four DB9M connections that can be configured for RS-232/422/485 serial communications at speeds-up-to 460Kbps. The interface also contains an additional connection for the host interface cable. This product is not usable with older RocketPort ISA, PCI, or uPCI products, and is only suitable for use with the RocketPort INFINITY PCI-X and RocketPort EXPRESS PCI-E products.

Main Specification
General Information
Manufacturer Comtrol Corporation
Manufacturer Part Number 30050-2
Manufacturer Website Address http://www.comtrol.com
Brand Name Comtrol
Product Line RocketPort
Product Name RocketPort 4-Port DB9M Interface Hub
Product Type Serial Hub
Technical Information
Data Transfer Rate Up to 460kB/s Serial Port
Platform Supported PC
Physical Characteristics
Form Factor External
Weight (Approximate) 10.10 oz
Warranty
Limited Warranty 5 Year
The next generation RocketPort 4-Port Interface has four DB9M connections that can be configured for RS-232/422/485 serial communications at speeds-up-to 460Kbps. The interface also contains an additional connection for the host interface cable.

Network Cable Type Serial panel
Width 5.5 in
Height 3 in
Connectivity
Connector(s) 4 x 9 pin D-Sub (DB-9) - male
Miscellaneous
Compliant Standards EN55022, ICES-003, EN55024, CISPR 22, RoHS, CSA C22.2 No. 60950 Third Edition, FCC CFR47 Part 15 B
Manufacturer Warranty
Service & Support 5 years warranty
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 140 °F
