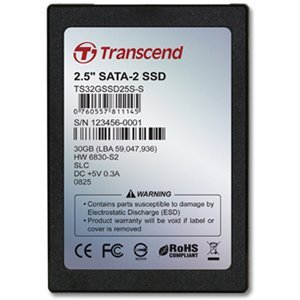

TS32GSSD25S-M Transcend 32 GB 2.5" Internal Solid State Drive

This SATA Solid State Disk (SSD) comes in a standard 2.5-inch size and has an SATA interface which means it can be used in most notebook computers and mainstream PCs just like a regular hard drive. Instant access speeds, large capacity, high reliability, low power consumption and anti-shock features, making it clear that this Transcend's SSD is the ideal drop-in replacement for conventional Hard Disk Drives. Built-in wear leveling technology also ensures ultra-long lifespan and data-retention durability for prolonged use. With no moving parts, absolutely no noise is generated from the SSD, and much less power is needed for operation, which means less heat is generated as well.

General Information
Manufacturer	Transcend Information, Inc
Manufacturer Part Number	TS32GSSD25S-M
Manufacturer Website Address	http://www.transcend-info.com
Brand Name	Transcend
Product Name	Serial ATA/150 Internal Solid State Drive
Product Type	Solid State Drive
Technical Information
Storage Capacity	32 GB
Drive Performance
Maximum Read Transfer Rate	123 MB/s
Maximum Write Transfer Rate	60 MB/s
Interfaces/Ports
Drive Interface	SATA
Drive Interface Standard	SATA/150
Physical Characteristics
Drive Type	Internal
Form Factor	2.5"
Height	0.4"
Width	2.8"
Depth	3.9"
Weight (Approximate)	1.69 oz
Miscellaneous
Package Contents	Serial ATA/150 Internal Solid State Drive 4 x Screws Warranty Card Quick Instruction Guide
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

SATA Solid State Disk (SSD) comes in a standard 2.5-inch size and has an SATA interface which means it can be used in most notebook computers and mainstream PCs just like a regular hard drive. Instant access speeds, large capacity, high reliability, low power consumption and anti-shock features, making it clear that Transcend's SSDs are the ideal drop-in replacements for conventional Hard Disk Drives. Transcend's 2.5-inch SATA SSD series has a distinct advantage over standard 2.5" HDDs in that they are made of solid-state memory with no moving parts, and therefore not susceptible to mechanical failure resulting from vibration, shock, heat, etc. Its modern SATA interface delivers higher data transfer rates than standard IDE and ensures compatibility with today's high performance notebook and desktop computers. Moreover, SATA cables are much thinner and more compact than IDE cables, which allows for less cluttered installations with better cooling from improved airflow. Transcend's 2.5-inch SATA SSD has the standard compact dimensions as normal 2.5" hard drives, but with a thickness of only 9.5mm, making it very easy to install in PCs and notebooks. In addition, the 2.5-inch SATA SSD has built-in ECC (Error Correction Code) functionality that ensures highly reliable data transfer and increases your system's overall integrity. Built-in wear leveling technology also ensures ultra-long lifespan and data-retention durability for prolonged use. With no moving parts, absolutely no noise is generated from the SSD, and much less power is needed for operation, which means less heat is generated as well.

Features

• RoHS compliant
• Fully SATA I compatible
• Non-volatile Flash Memory for outstanding data retention
• Built-in ECC (Error Correction Code) functionality and wear-leveling algorithm ensures highly reliable of data transfer
• Lower Power Consumption
• Shock resistance
• 2-year warranty

Specification

Size	100mm x 69.85mm x 9.5mm
Op. Voltage	DC 5V
Op. Temperature	0°C(32°F) to 70°C(158°F)
Certification	CE, FCC, BSMI
Performance	SLC - Read up to 135MB/s, Write up to 105MB/s (8GB, 16GB, 32GB)          Read up to 163MB/s, Write up to 142MB/s (64GB) MLC - Read up to 123MB/s, Write up to 60MB/s (32GB, 64GB)          Read up to 163MB/s, Write up to 92MB/s (128GB)
Shock Resistance	1500G, 0.8ms
Vibration Resistance	3.0G, 5 - 800Hz
MTBF	1M hours
*Note	For OS installations, SLC version is recommended
