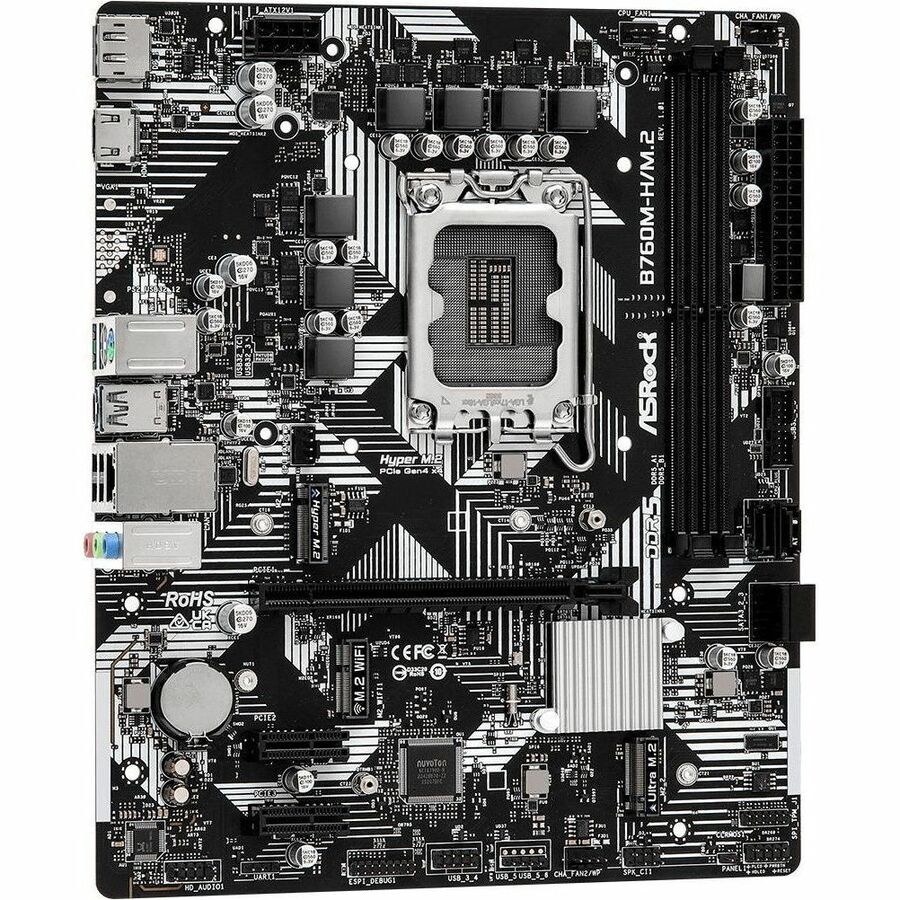

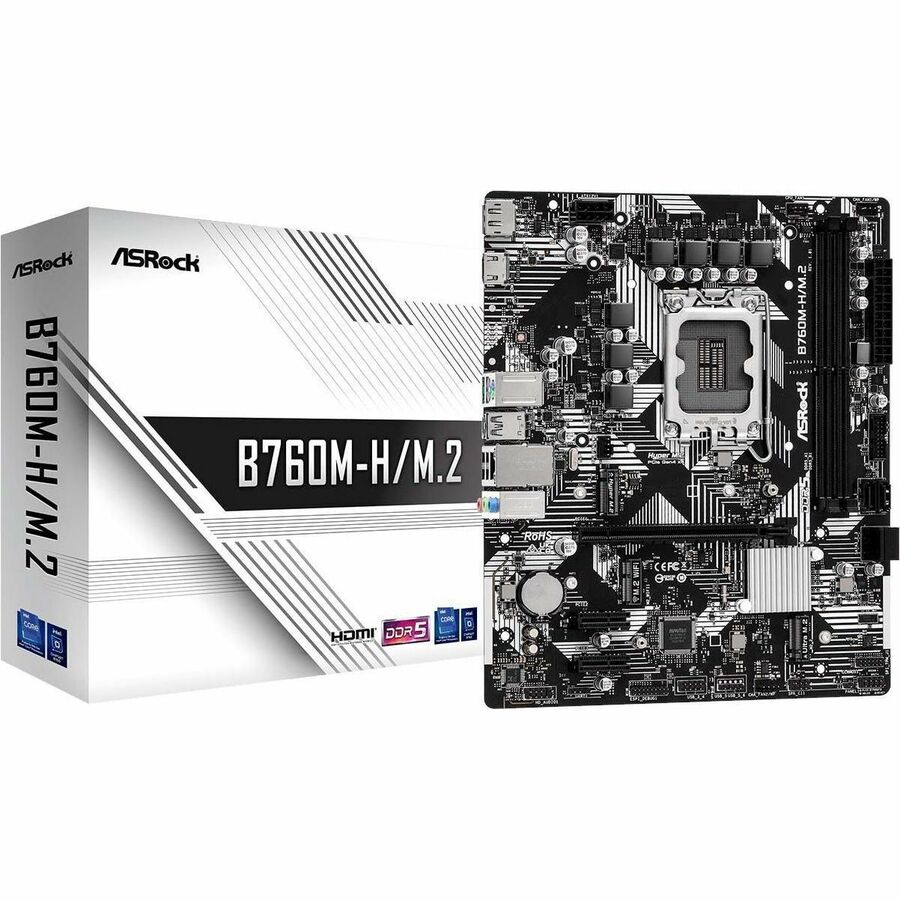

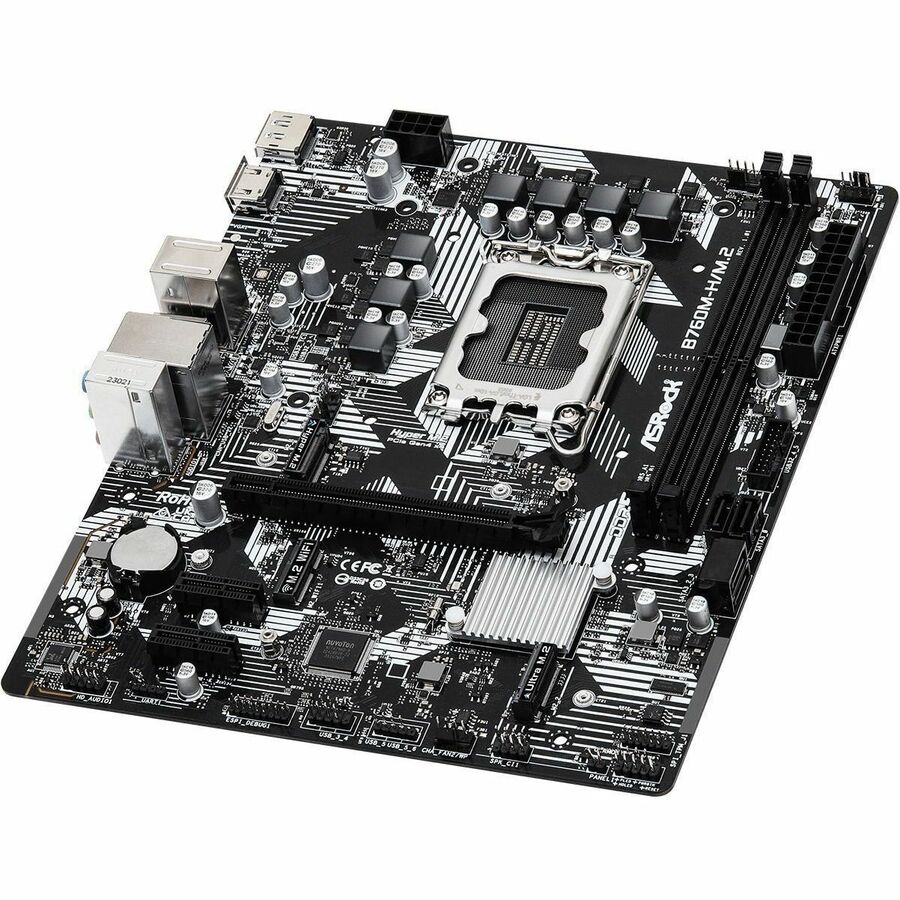

ASRock B760M-H/M.2 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX | SKU MB-B76MHM2
Mfg Part Number: B760M-H/M.2 , Item #: 6363723
, PO and Wire.
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel®XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

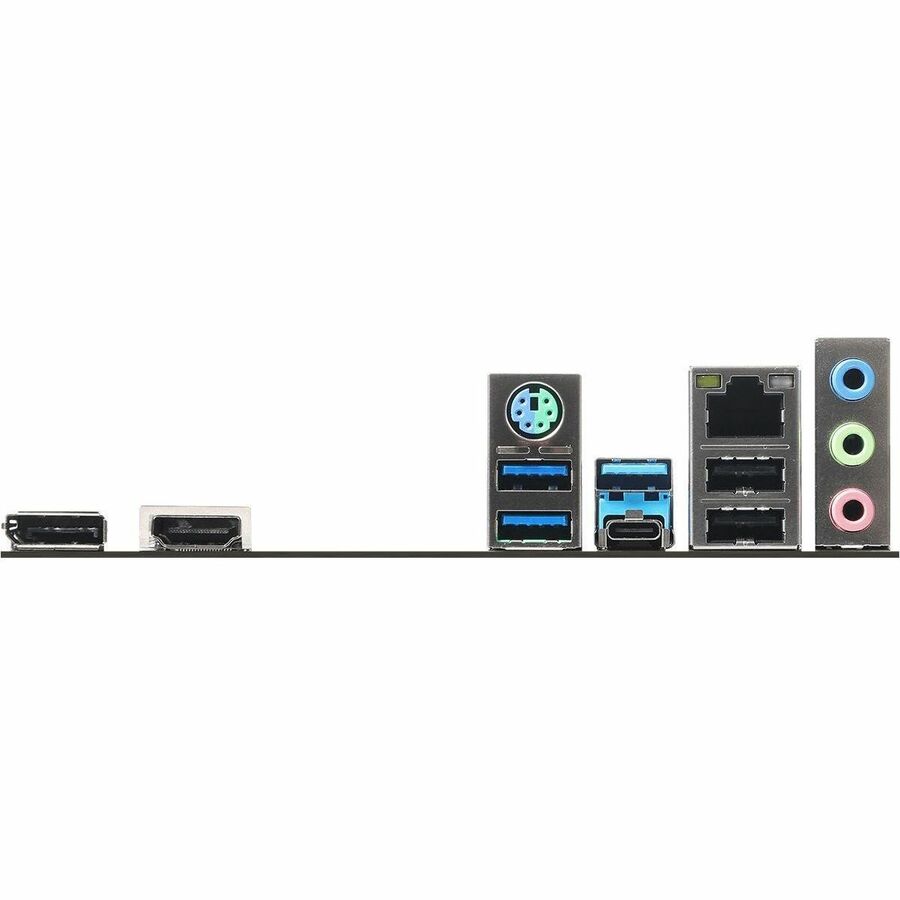

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Auto Driver InstallerNo need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B760M-H/M.2 |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | B760M-H/M.2 |
| Product Name | B760M-H/M.2 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 14th Gen |
| Processor Supported | Core |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 7200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Xe Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 7.9" |
| Miscellaneous | |
| Energy Efficiency Compliance | Energy-using Products Directive Ready (EuP Ready) |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
