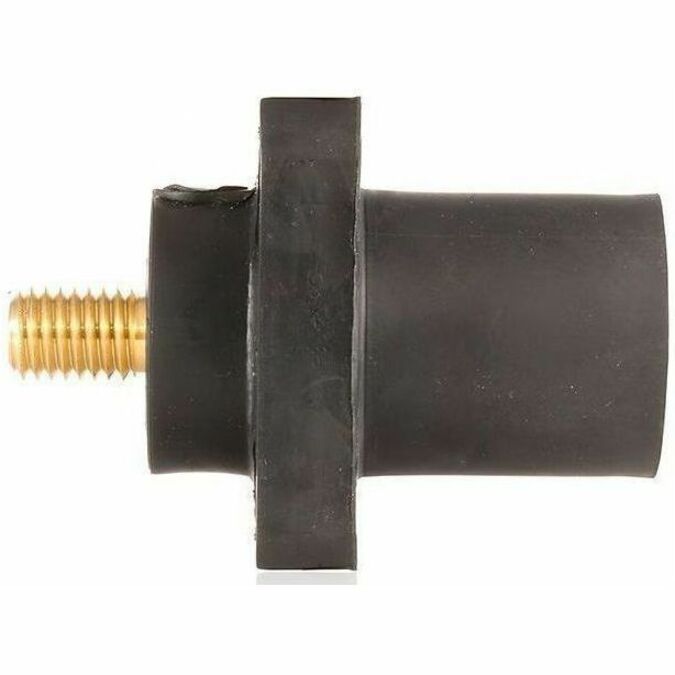

Leviton 16R23-UG GN M PNL REC STUD .75" TAP NOSE #2-4/0

16 Series Male Panel Receptacle, Cam-Type, 90-Degree, Threaded Stud Length - 3/4" , Taper Nose, 400 Amp Max, Cable Range - #2 to 4/0 AWG, Green Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

General Information
Manufacturer	Leviton Mfg. Company, Inc
Manufacturer Part Number	16R23-UG
Manufacturer Website Address	http://www.leviton.com
Brand Name	Leviton
Product Line	Rhino-Hide
Product Series	16
Product Name	Male Receptacle, 90-Degree, #2 - 4/0 AWG, .75" L Threaded Stud Termination
Product Type	Power Socket
Power Description
Voltage Rating	600 V AC
Current Rating	400 A
Physical Characteristics
Color Family	Green
Product Color	Green
Miscellaneous
Certifications & Standards	CSA Standard : 1691 UL : 1691
Country of Origin	Mexico
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
