EDGECORE NETWORKS
EDGECORE NETWORKS Edgecore SWT ECS4150-54T 48xGE + 6x25G SFP28 ports L2+ Switch Brown Box
Mfg Part Number: ECS4150-54T , Item #: 6227164
, PO and Wire.

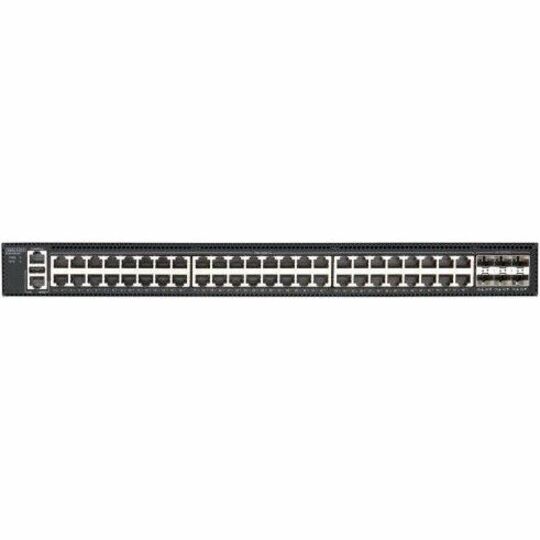

The Edgecore ECS4150-54T switch is a Gigabit Ethernet access switch with six 25G SFP28 uplinks. The switch is ideal as a high-performance Gigabit access switch with 1 Gigabit downlinks. This switch is also positioned as a cloud edge access switch, connecting IOT and other devices in enterprise and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-54P is a PoE switch that can provide up to 90 Watts to power devices such as wireless access points, VoIP phones, surveillance cameras, IoT devices etc. over Cat 5 UTP cable, eliminating the need for individual power sources. The ECS4150-54T/ECS4150-54P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
| General Information | |
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | ECS4150-54T |
| Manufacturer Website Address | http://www.edge-core.com |
| Brand Name | Edge-Core |
| Product Series | ECS4150 |
| Product Model | ECS4150-54T |
| Product Name | L2+/Lite L3 Gigabit Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 6 x 25 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 25 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 25GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Expansion Slot Type | SFP28 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3cc |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1v |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3ae |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Supply |
| Power Source | AC |
| Power Consumption | 52 W |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 16.5" |
| Miscellaneous | |
| Application/Usage | Campus |
| Application/Usage | Enterprise |
| Application/Usage | Surveillance |
| Application/Usage | Network |
| Application/Usage | VoIP Phone |
| Application/Usage | Camera |
| Application/Usage | Wireless Access Point |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
