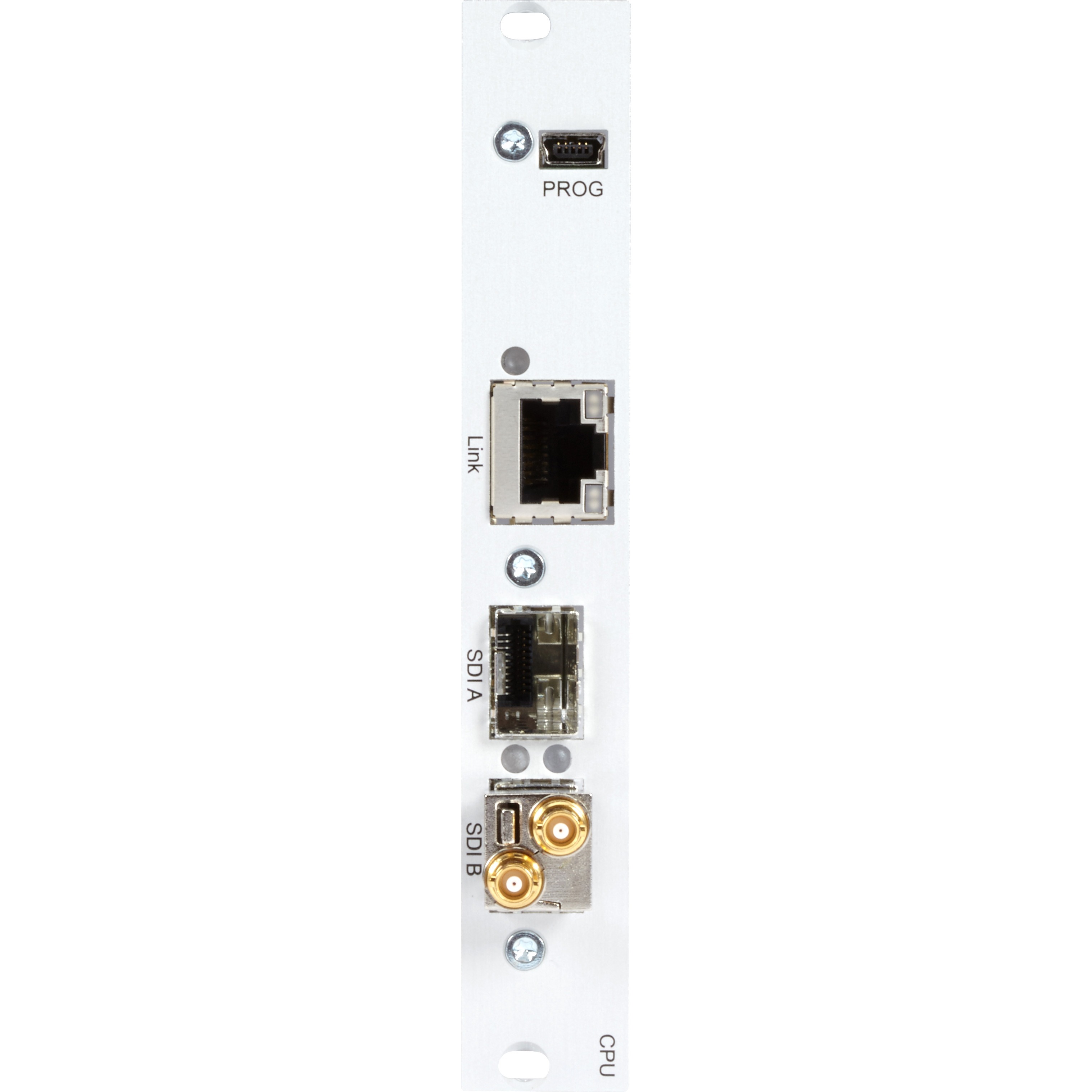

BLACK BOX ACX1MT-SDI-C KVM TX UPGRADE MODULE - SDI (1) CATX
Mfg Part Number: ACX1MT-SDI-C , Item #: 6097247
Image may not reflect the actual item.
Price: $1,874.96
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 12, 2026
No Sales Tax except these states
, PO and Wire.
The DKM modular extenders are comprised of Modular Housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix setup,
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1MT-SDI-C |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Model | ACX1MT-SDI-C |
| Product Name | DKM FX Modular KVM Extender Transmitter Interface Card - SDI, USB, CATx |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 400 ft |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Transmitter Height | 0.70" |
| Transmitter Width | 5" |
| Transmitter Depth | 5.75" |
| Transmitter Weight (Approximate) | 10.58 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
