SCHNEIDER
SCHNEIDER GVMSB160KG65S UPS - Uninterruptible Power Supplies Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start up 5x8
Mfg Part Number: GVMSB160KG65S , Item #: 6081450

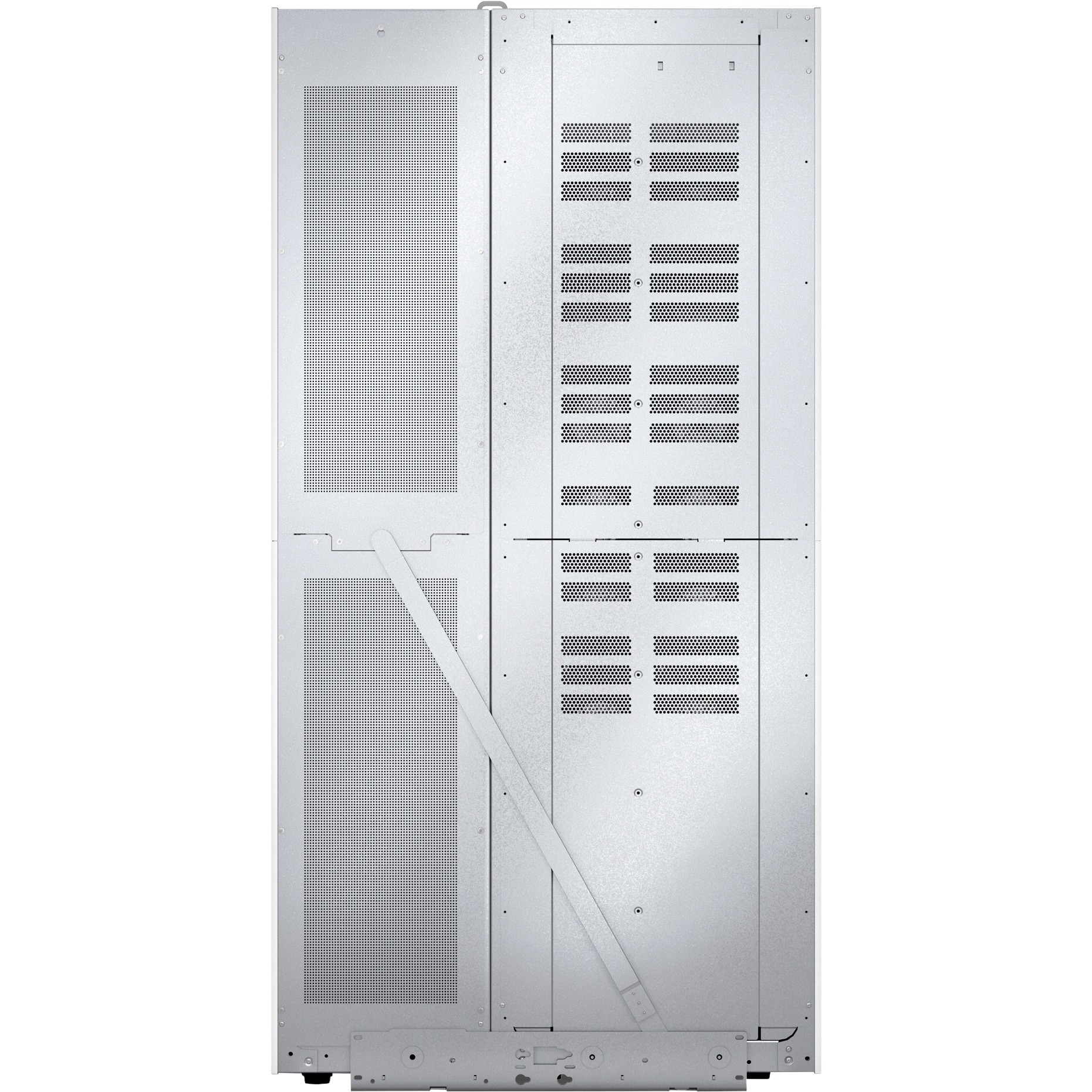

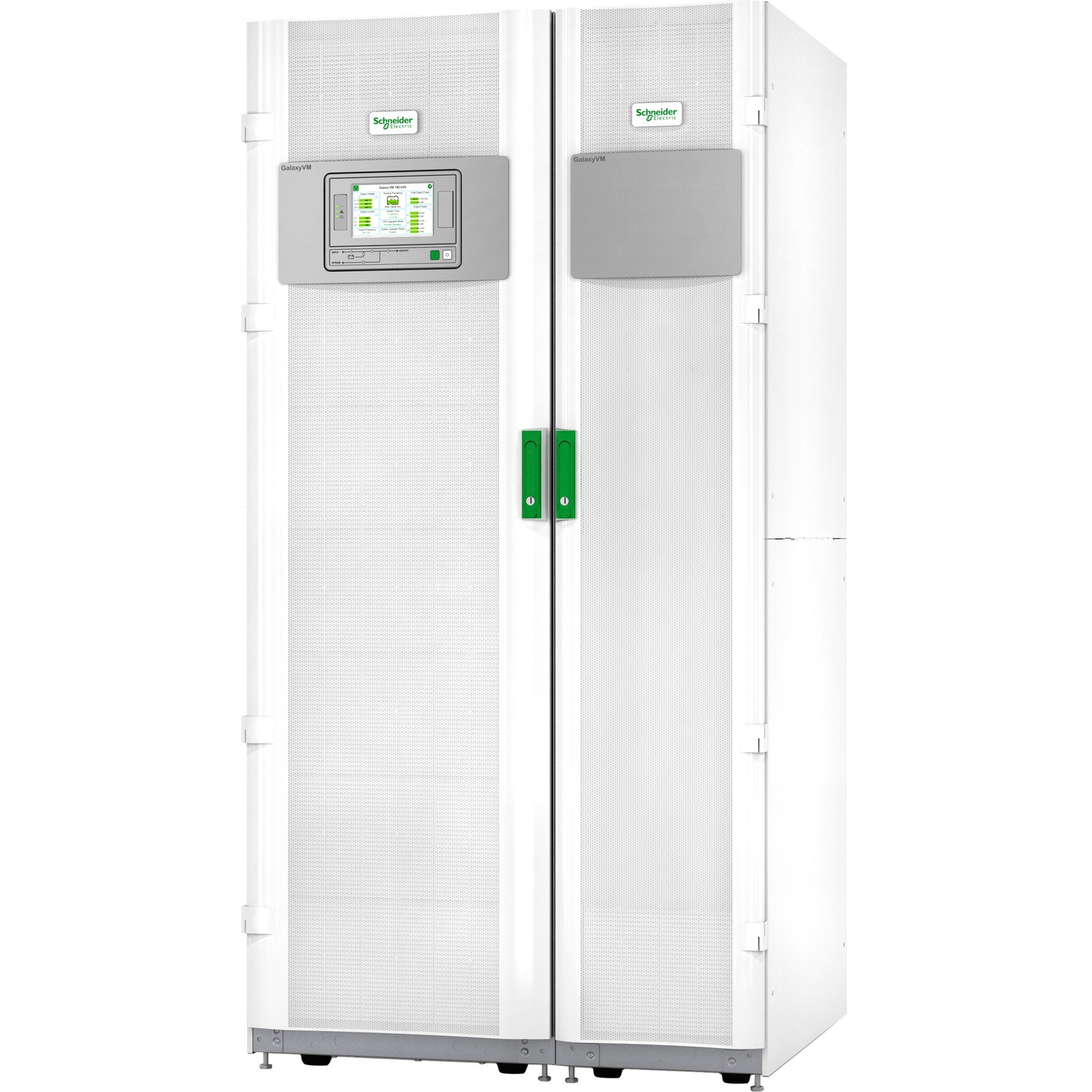

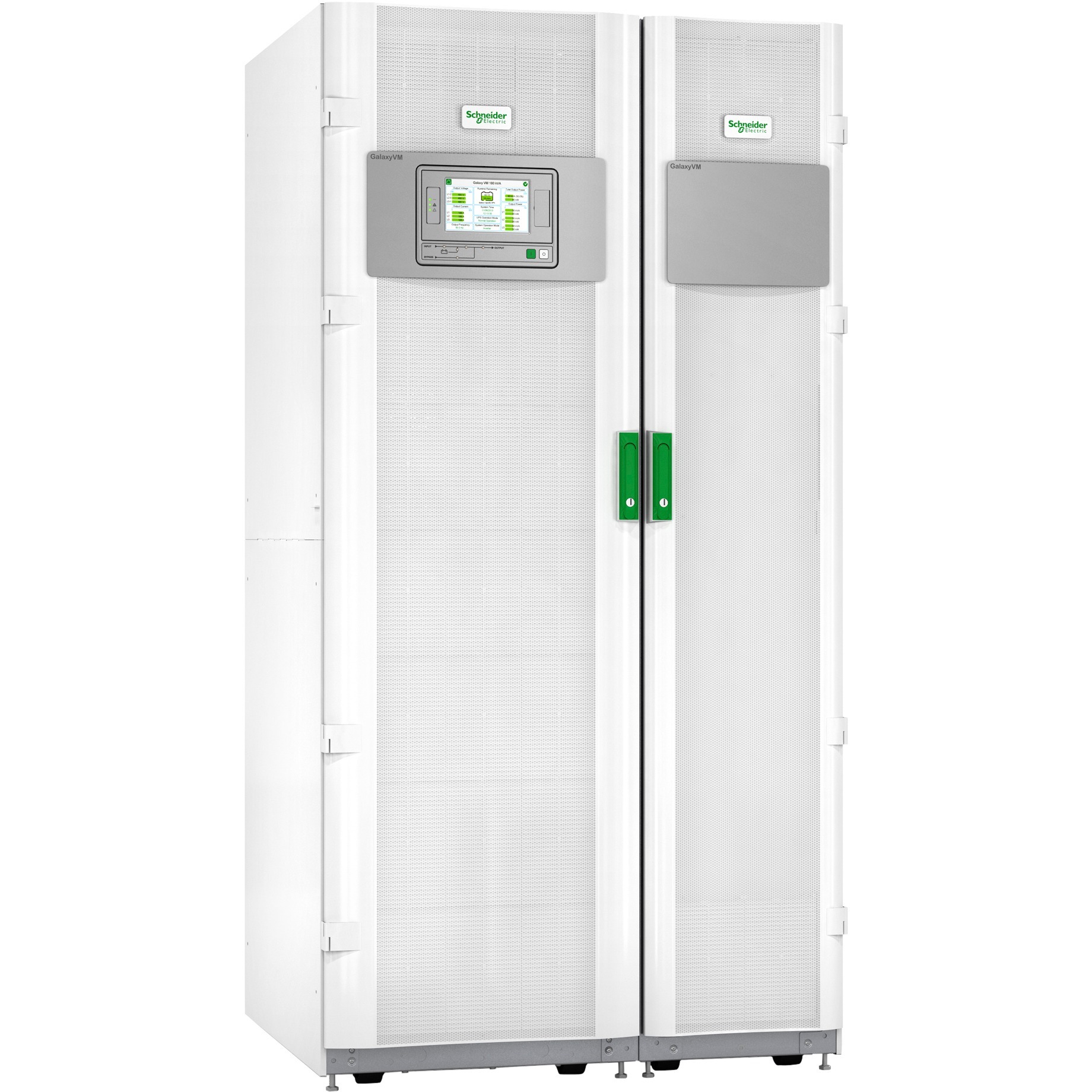

Image may not reflect the actual item.
Price: $109,018.78
Quantity:
More to Come
Last Updated: Jun 20, 2026
No Sales Tax except these states
, PO and Wire.
Galaxy VM Lithium-Ion battery solutions. Galaxy VM is a key component in the comprehensive Schneider Electric energy management solution for data center and industrial applications. Galaxy VM deploys state of the art technology to lower energy cost through very high efficiency ratings and the newly innovative ECOnversion mode. Galaxy VM seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality. The highly compact Galaxy VM also links in with your facility monitoring systems and smart grid requirements and offers both traditional and modular energy storage flexibility that allows tailoring of the solution to specific needs. Galaxy VM features top and bottom cable entry without the need for an additional side cabinet, full front service access, back to the wall installation, and included start up service, making it one of the easiest UPSs in its class to deploy, install and maintain.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | GVMSB160KG65S |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Galaxy VM |
| Product Name | Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | Hard Wire 5-wire (3PH + N + G) |
| Receptacle Type | Hard Wire 4-wire (3PH + G) |
| Receptacle Detail | 1 x Hard Wire 4-wire (3PH + G) |
| Receptacle Detail | 1 x Hard Wire 5-wire (3PH + N + G) |
| Phase | Three Phase |
| Power Description | |
| Load Capacity (VA) | 160 kVA |
| Input Voltage | 480 V AC |
| Output Voltage | 480 V AC |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Height | 77.6" |
| Width | 39.5" |
| Depth | 33.6" |
| Weight (Approximate) | 1494.80 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
