SIIG AC CE-H22N15-S1 HDMI 4K Extender over Single CAT5e 6 Cable with IR - 60m
Mfg Part Number: CE-H22N15-S1 , Item #: 6041064
Image may not reflect the actual item.
Price: $171.79
Quantity:
More to Come
Last Updated: May 09, 2026
No Sales Tax except these states
, PO and Wire.
Extends 4K HDMI signal to a remote display up to 60m over a single CAT5e/6 cable with IR support
- Extends your HDMI A/V signals to a remote display up to 197ft (60m) away over economical CAT5e/6 cable. Note: Does not work with a switch or a router
- Transmits and extends crystal clear Ultra High Definition (4K UHD) picture quality up to 30m at 4Kx2K@60Hz YUV420 and up to 60m at 4Kx2K@30Hz YUV444
- IR remote control extension technology allows you to remotely control the HDMI source device from the remote display side
- Plug-n-Play installation, no software installation or hardware setup is required

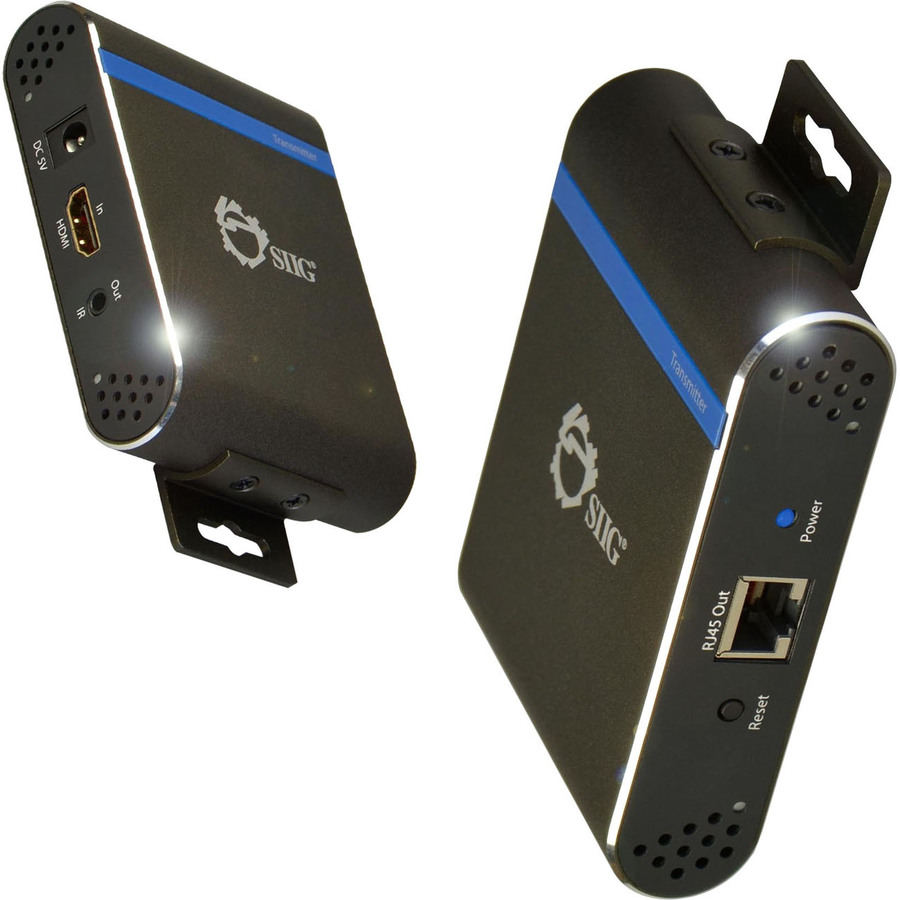

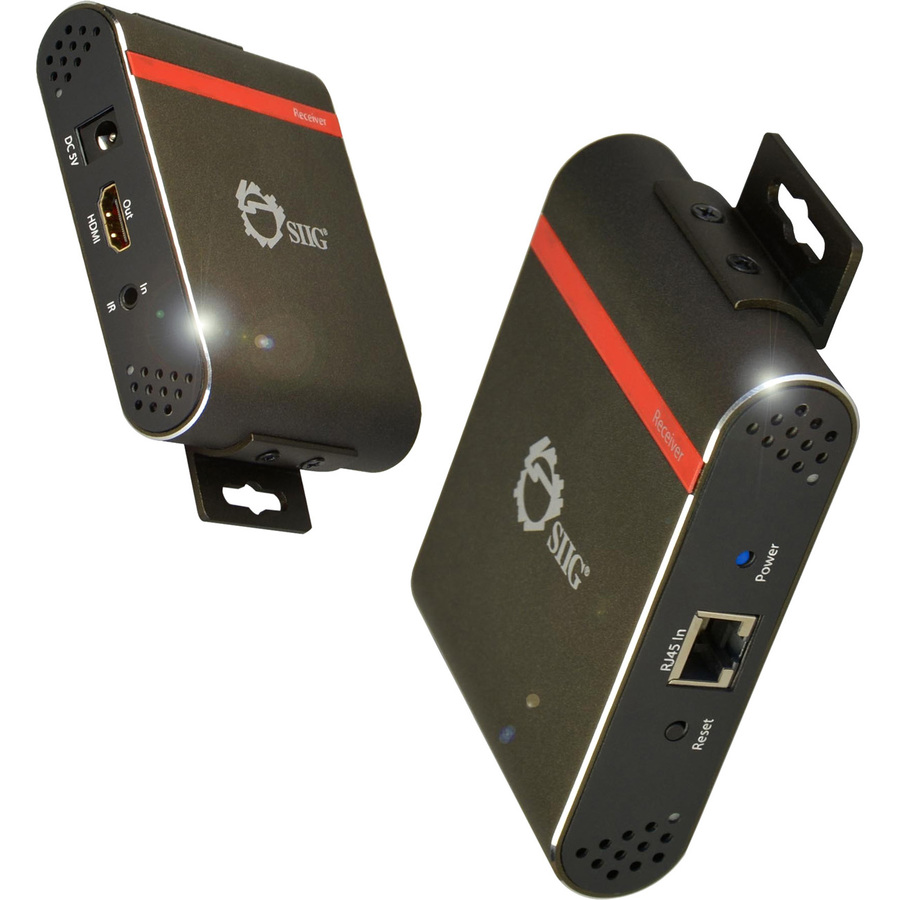

- Ultra-slim low profile color coded design with mounting brackets make it easy to be identified and integrated into versatile application environment
- High quality metal housing with strategically positioned ventilation holes increase airflow to improve heat dissipation and ensure system stability and reliability during extended hours of operation
- Built-in power indicator provides easy power status monitoring
Main Specification
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H22N15-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | HDMI 4K Extender Over Single CAT5e/6 Cable with IR - 60m |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 196.85 ft |
| Video | |
| Graphics Modes | 4K |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |

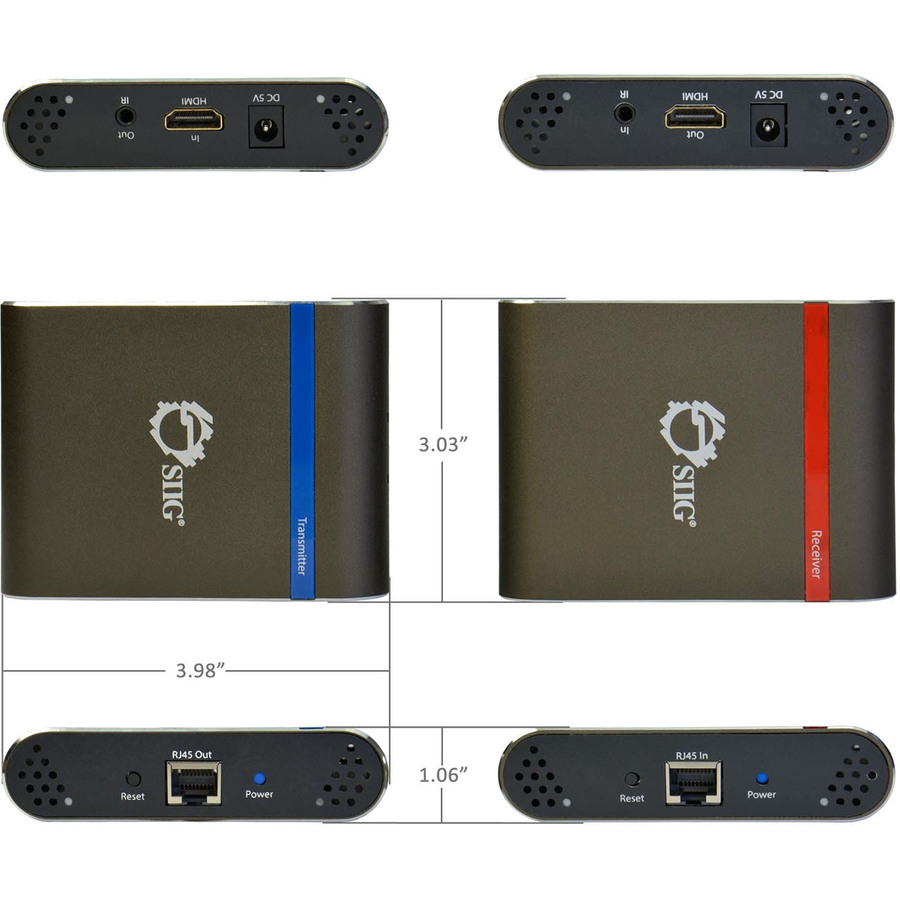

| Transmitter Height | 1.06" |
| Transmitter Width | 3.94" |
| Transmitter Depth | 3.03" |
| Receiver Height | 1.06" |
| Receiver Width | 3.94" |
| Receiver Depth | 3.03" |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 7.04 oz |
| Receiver Weight (Approximate) | 7.04 oz |
| Miscellaneous | |

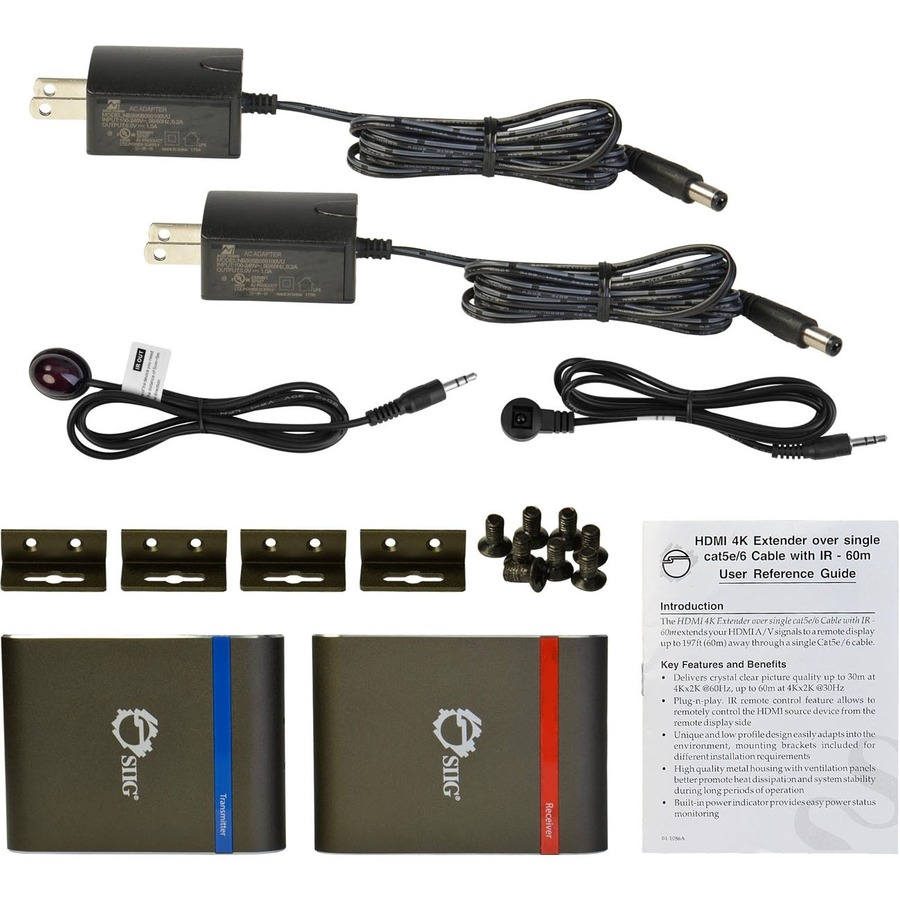

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
