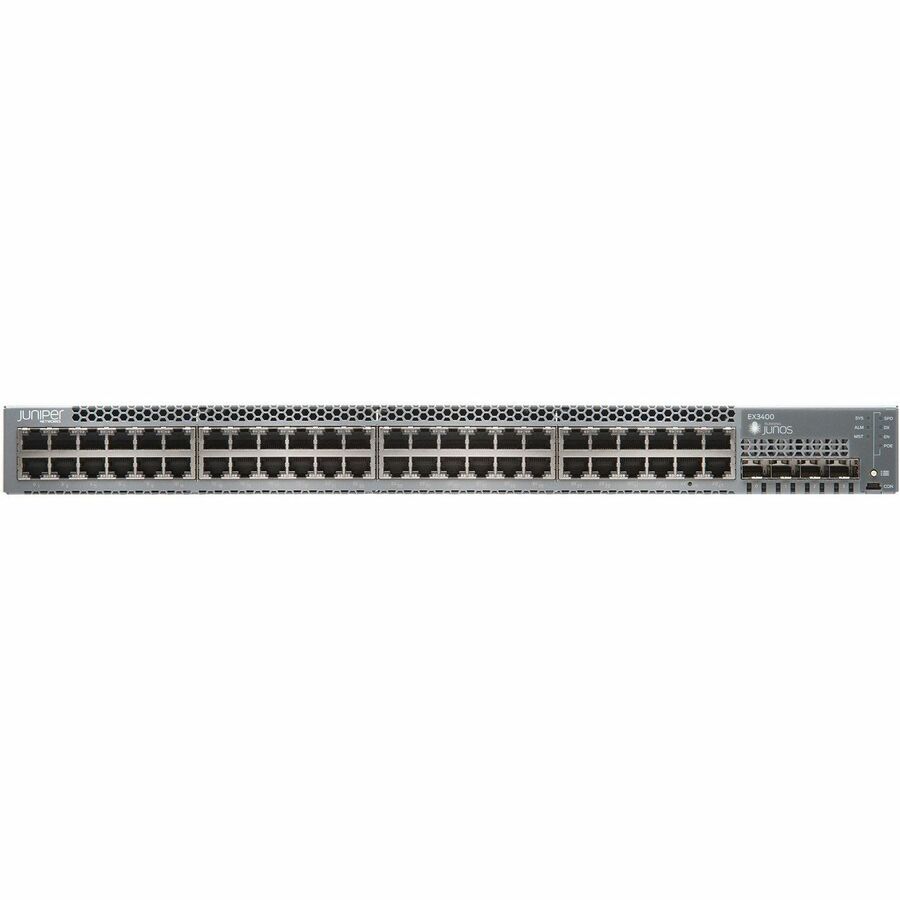

JUNIPER NETWORKS EX3400-48P-U EX3400 48-PORT 10/100/1000BASET POE+ 4 X 1/10G SFP/SFP+ 2 X 40G QSF

Juniper Networks EX3400 Ethernet Switch delivers a highperformance, flexible, and costeffective solution for today's most demanding converged data, voice, and video enterprise access environments. The EX3400 supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. The EX3400 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.

The Juniper Networks® EX3400 Ethernet Switch with Juniper Networks Virtual Chassis technology provides enterprises with the flexibility and ease of management that previously was only available with higher-end access switches. The fixed-configuration EX3400 supports a number of key features, including:

• 24-port and 48-port models with and without Power over Ethernet (PoE/PoE+) are for campus wiring closet deployments.
• Cloud-ready and zero-touch provisioning (ZTP)-enabled for Juniper Mist Wired Assurance
• Data center-optimized cooling options offer both front-to-back and back-to-front airflows, making the EX3400 suitable for GbE data center access deployments
• Two redundant, field-replaceable power supplies each provide up to 920 watts of power.
• 24-port data center models are included for metro deployments.
• Four dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE QSFP+ ports are available.
• Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE/40GbE optic interfaces (40GbE uplink ports are preconfigured by default as Virtual Chassis ports)
• Comprehensive Layer 2 functionality with RIP and static routing is provided.
• A compact, 13.8-inch deep 1 U form factor supports flexible deployment options.
• An easy-to-manage solution includes centralized software upgrades.
• Support is available for the same consistent modular Juniper Networks Junos operating system control plane feature implementation used by all other Juniper fixedconfiguration Juniper Networks EX Series Ethernet Switches.
• Support is provided for Layer 3 (OSPF v2, IGMP v1/v2/v3, PIM, VRRP, BFD, virtual router) via an enhanced feature license (optional license required).
• Support is available for IPv6 management, including neighbor discovery, stateless auto configuration, telnet, SSH, DNS, system log, NTP, ping, traceroute, ACL, CoS static routing, and RIPng.
• IPv6 routing features (OSPFv3, virtual router support for unicast, VRRPv6, PIM, MLDv1/v2) are supported via an enhanced feature license.
• Support is available for Border Gateway Protocol (BGP), multiprotocol BGP (MBGP), and Intermediate System-to-Intermediate System (IS-IS) via an optional Advanced Feature license.
• Energy Efficient Ethernet (EEE) capability is provided.

Architecture and Key Components Cloud Management with Juniper Mist Wired Assurance

Juniper Mist Wired Assurance, a cloud-based service driven by Mist AI to claim, configure, manage, and troubleshoot the EX3400, delivers AI-powered automation and service levels to ensure a better experience for connected devices. Wired Assurance leverages rich Junos switch telemetry data to simplify operations, reduce mean time to repair, and improve visibility. Wired Assurance offers the following features:
