AddOn
AddOn ADD-MPO-4LC20M5OM4LZ 20M MPO/4XLC F/M AQUA OM4 LSZH FIBER PATCH CABLE
Mfg Part Number: ADD-MPO-4LC20M5OM4LZ , Item #: 5959421
, PO and Wire.

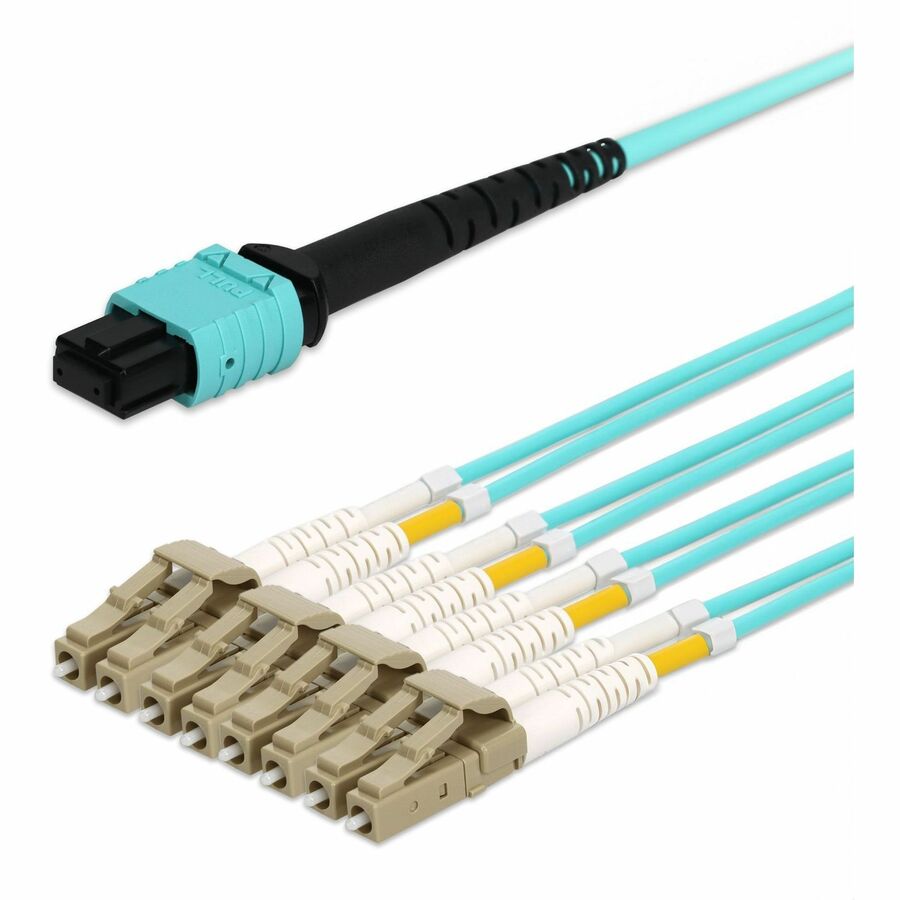

This is a 20m MPO/UPC to 4xLC/UPC Duplex Aqua OM4 LSZH 8-Strand Fiber Fanout Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
| General Information | |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPO-4LC20M5OM4LZ |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Brand Name | AddOn |
| Product Name | 20m MPO/UPC to 4xLC/UPC Duplex Aqua OM4 LSZH 8-Strand Fiber Fanout Cable |
| Packaged Quantity | 1 Piece |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Fan-out Cable |
| Cable Configuration | Crossover |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Cable Length | 65.62 ft |
| Outer Diameter | 0.12" |
| Connector Type on First End | MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 4 x LC Network - Male |
| Shielding | No |
| Jacket Type | OFNG |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Boot Type | Standard |
| Bend Insensitivity | G.657.A1 |
| Features | Ultra Physical Contact (UPC) |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Connector Color | Aqua |
| Connector Color | Beige |
| Color Details | |
| Jacket Material | Low Smoke Zero Halogen |
| Height | 0.1" |
| Width | 0.3" |
| Weight (Approximate) | 1 lb |
| Miscellaneous | |
| Application/Usage | Indoor |
| Certifications & Standards | TIA compliant |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
