CYBERPOWER
CYBERPOWER OL750RM - UPS - RACK-MOUNTABLE - ONLINE,DOUBLE CONVERSION - 100, 110, 115, 120,
Mfg Part Number: OL750RM , Item #: 5914760
, PO and Wire.
CyberPower Essential Online UPS. Prevent business interruptions and safeguard mission-critical enterprise network equipment.

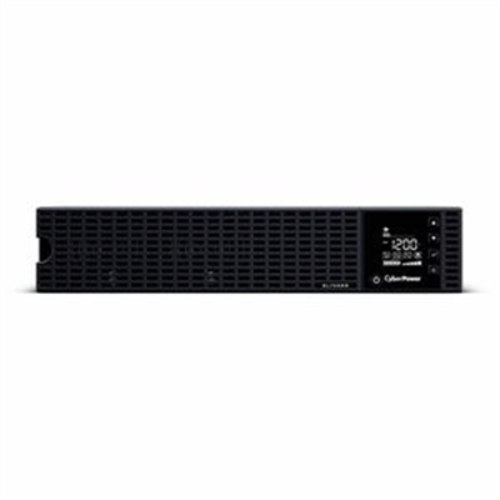

The CyberPower Essential Online OL750RM is a rack mounted UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL750RM offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL750RM |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Brand Name | CyberPower |
| Product Line | Essential Online |
| Product Model | OL750RM |
| Product Name | Essential Online OL750RM 750VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | ECO Mode Efficiency >96% |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Business |
| Application/Usage | Equipment |
| Application/Usage | Generator |
| Application/Usage | Enterprise |
| Surge Suppression | Yes |
| Features | Audible Alarm |
| Features | Cold Start Function |
| Features | Built-in Bypass Switch |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage | 100 V AC |
| Output Voltage | 125 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Input Frequency | 60 Hz |
| Input Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 710 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.8 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Network Management | Dry Contact |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | Power On (White) |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Expansion Slot Detail | Yes - with optional RMCARD205 or RELAYIO500 |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 17.50 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
| Maximum Storage Elevation | 49213 ft |
| Operating Humidity | 0% - 0.9% |
| Storage Relative Humidity | 0% - 1% |
| Sound Emission (A-Weighted) | 18.1 dB(A) |
| Thermal Dissipation | 21.69 W |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Height | 3.41" |
| Width | 17.05" |
| Depth | 11.22" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 26.46 lb |
| Miscellaneous | |
| Certifications & Standards | UL1778 |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
