UBIQUITI

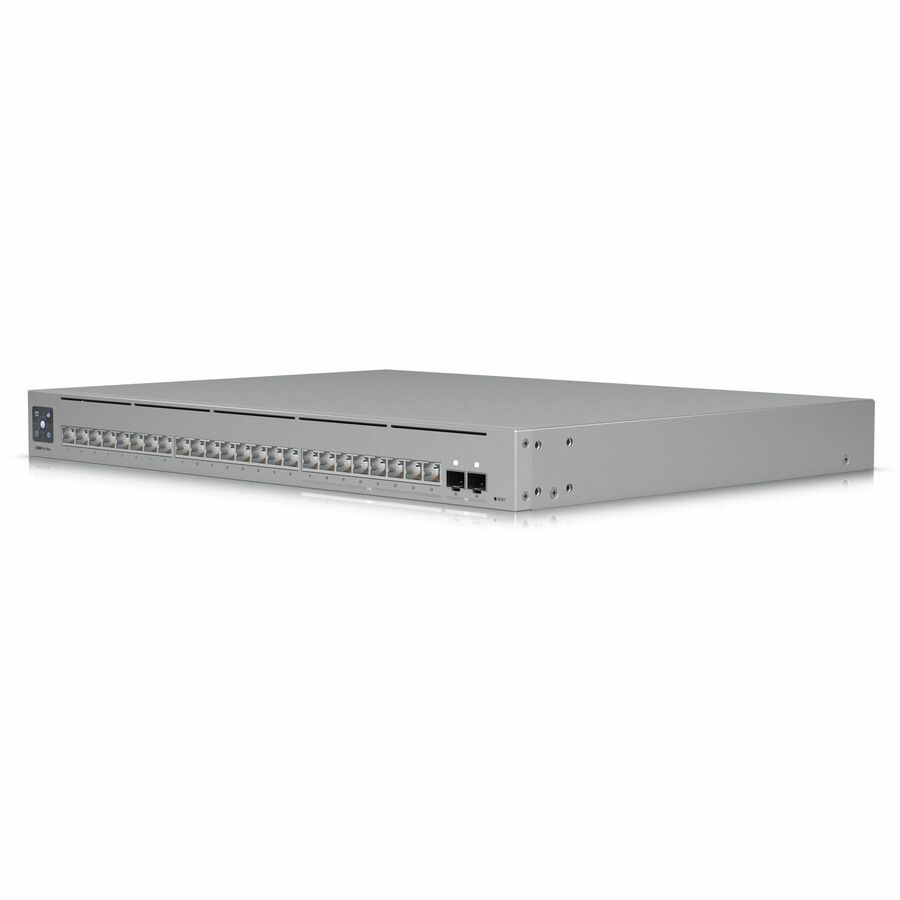

UBIQUITI USW-PRO-MAX-24 A 24PORT LAYER 3 ETHERLIGHTING SWITCH WITH 2.5 GBE

Mfg Part Number:  USW-PRO-MAX-24
Image may not reflect the actual item.
Price: $527.45
Quantity:
More to Come
Last Updated: Feb 22, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Ubiquiti Inc.
Manufacturer Part Number USW-Pro-Max-24
Manufacturer Website Address http://www.ui.com
Brand Name Ubiquiti
Product Line Pro Max
Product Model USW-Pro-Max-24
Product Name USW-Pro-Max-24 Ethernet Switch
Product Type Ethernet Switch
Technical Information
Features DHCP Relay
Features Reset Button
Features Virtual LAN (VLAN)
Features Loop Protection
Features Port Mirroring
Features DHCP Snooping
Features Flow Control
Features Access Control List
Features IGMP Snooping
Interfaces/Ports
Total Number of Network Ports 24
Network (RJ-45) Yes
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details 8 x 2.5 Gigabit Ethernet Network
Port/Expansion Slot Details 16 x Gigabit Ethernet Network
Media & Performance
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Ethernet Technology 2.5 Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-X
Network Technology 2.5GBase-T
Network Technology 10/100/1000Base-T
Maximum Data Transfer Rate 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 3
Networking Standards IEEE 802.1x
Management & Protocols
Manageable Yes
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Frequency 50 Hz
Frequency 60 Hz
Power Source USB
Power Source AC/DC
Power Consumption 50 W
Physical Characteristics
Product Material SGCC Steel
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7"
Width 17.4"
Depth 12.8"
Weight (Approximate) 9.26 lb
Miscellaneous
Application/Usage Network
Additional Information
  • Switching Capacity: 112 Gbps
  • Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000
  • Management: Ethernet, AR
  • Heat Dissipation: 170.6 BTU/hr
  • Supported Rack Depth: 400~1200 mm (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • ESD Protection: Air: ± 16kV, contact: ± 12kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant: Yes
  • DHCP Server (Local Networks): Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes
  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Virtual Network Override: Yes
Certifications & Standards
  • CE
  • FCC
  • IC
  • Anatel: 06374-24-08356
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
