TRIPP LITE
TRIPP LITE P052-2P5M-UK Power CBL BS1363 to C19, H0
Mfg Part Number: P052-2P5M-UK , Item #: 5856649
, PO and Wire.
Connects a switch or blade server with a C20 inlet to a PDU or UPS with BS 1363 outlets.
Features | UK Power Cord Connects Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a switch, router, blade server or other device with a C20 inlet to a PDU, UPS system or surge protector with BS 1363 outlets. It can also extend an existing power connection up to 2.5 meters (8.2 feet). The P052-2P5M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C19 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P052-2P5M-UK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | P052-2P5M-UK |
| Product Name | P052-2P5M-UK Standard Power Cord |
| Product Type | Standard Power Cord |
| Technical Information | |

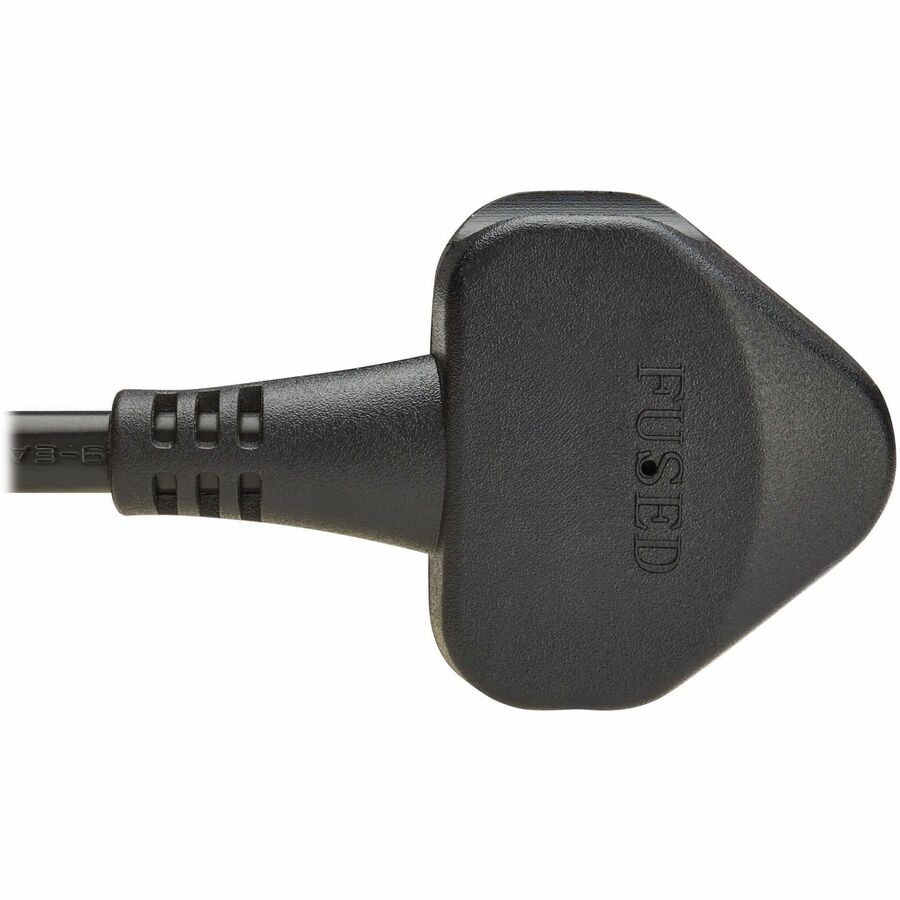

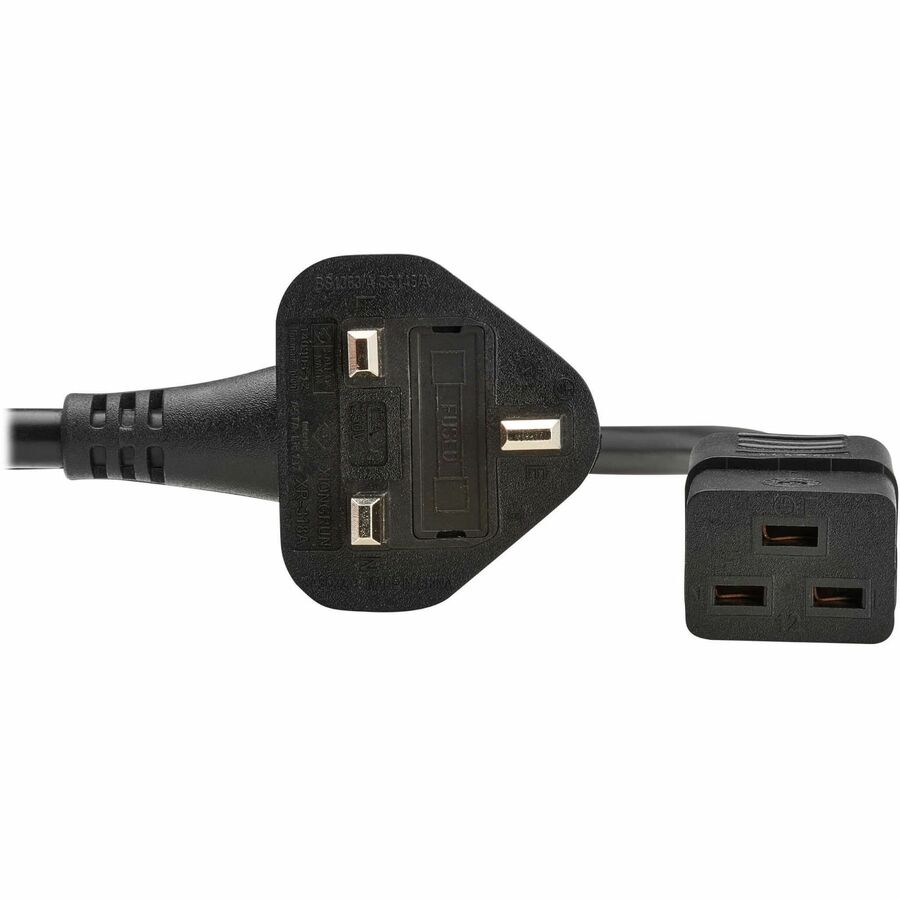

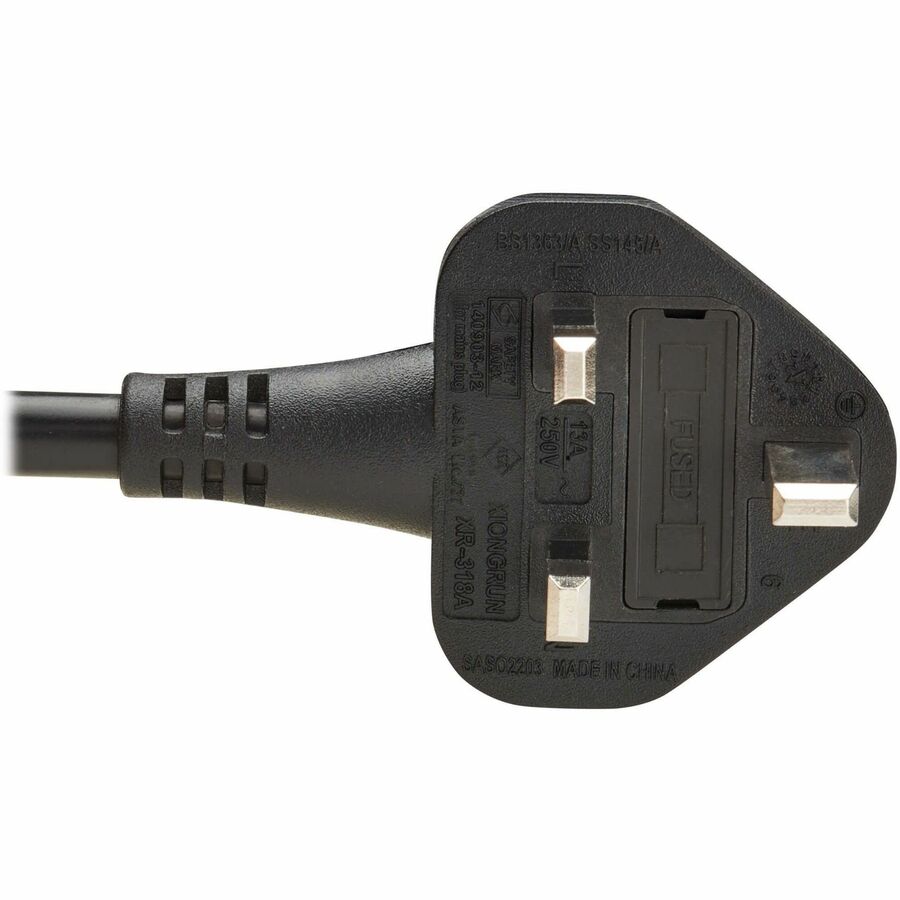

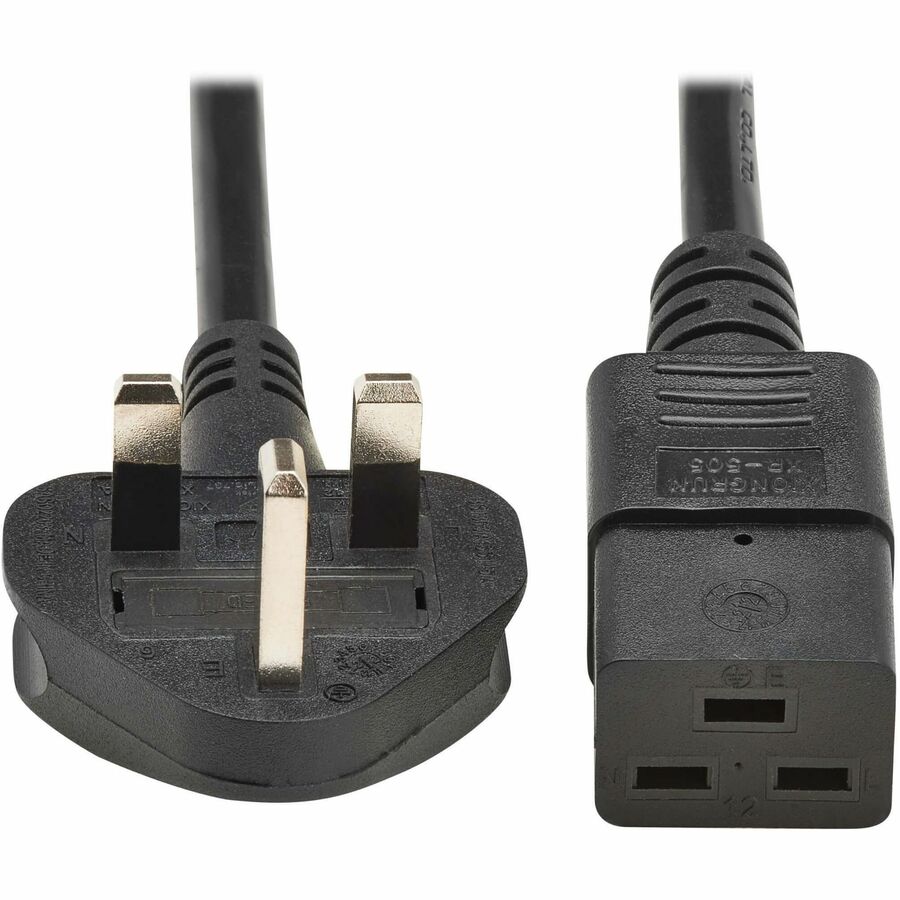

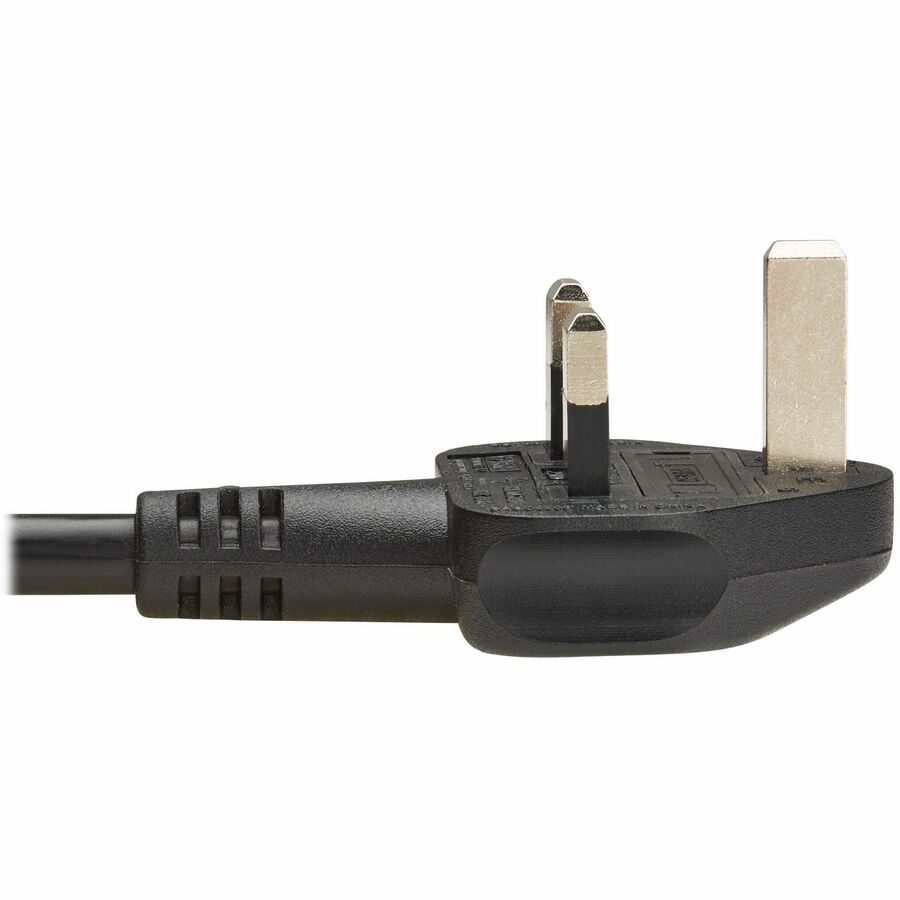

| First End Connector Type | BS 1363 |
| First End Connector Detail | 1 x 3-pin BS 1363 Male |
| Second End Connector Type | IEC 60320 C19 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C19 Female |
| Device Supported | PDU |
| Device Supported | Blade Server |
| Device Supported | Surge Protector |
| Device Supported | Switch |
| Device Supported | Computer |
| Device Supported | Router |
| Device Supported | UPS |
| Localization | United Kingdom |
| Gauge | 0.75mm2 |
| Number of Conductors | 3 |
| Power Description | |
| Voltage Rating | 250 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 10" |
| Width | 8" |
| Depth | 0.5" |
| Cord Length | 8.20 ft |
| Weight (Approximate) | 0.44 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 5°F (-15°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 140°F (60°C) |
