Panduit
Panduit FQF3ZO-08-10U2 SFQ FRNT ACCESS OM4 4-TO-1 CASS
Mfg Part Number: FQF3ZO-08-10U2 , Item #: 5806640

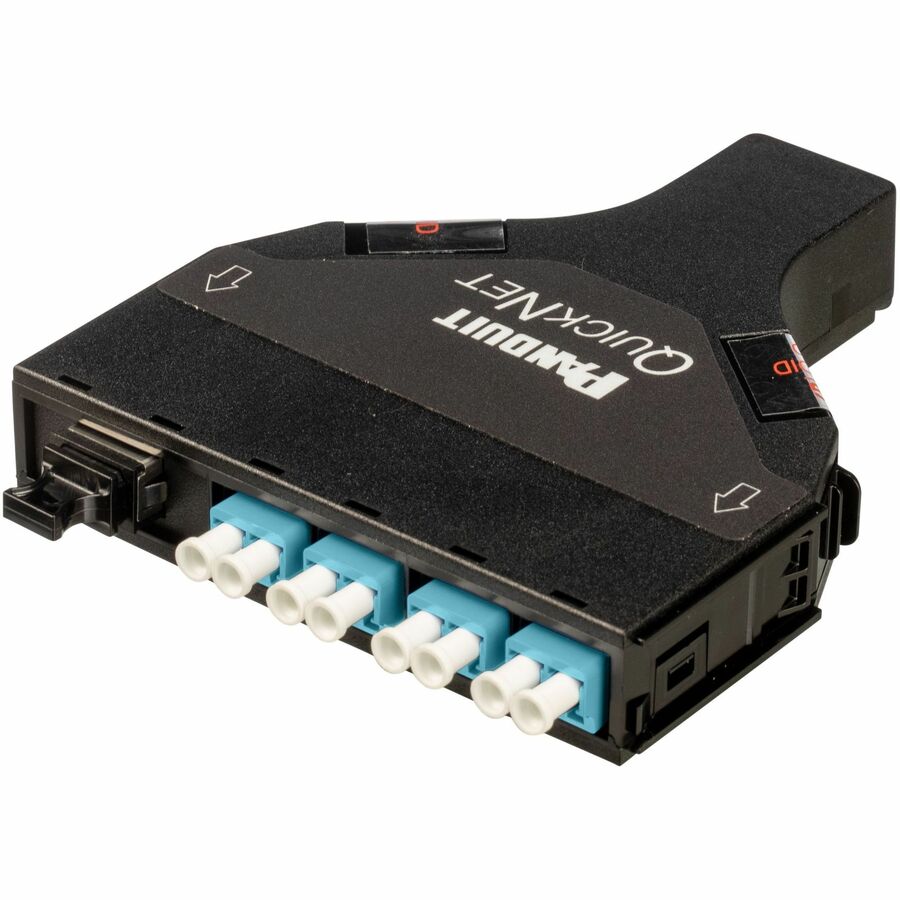

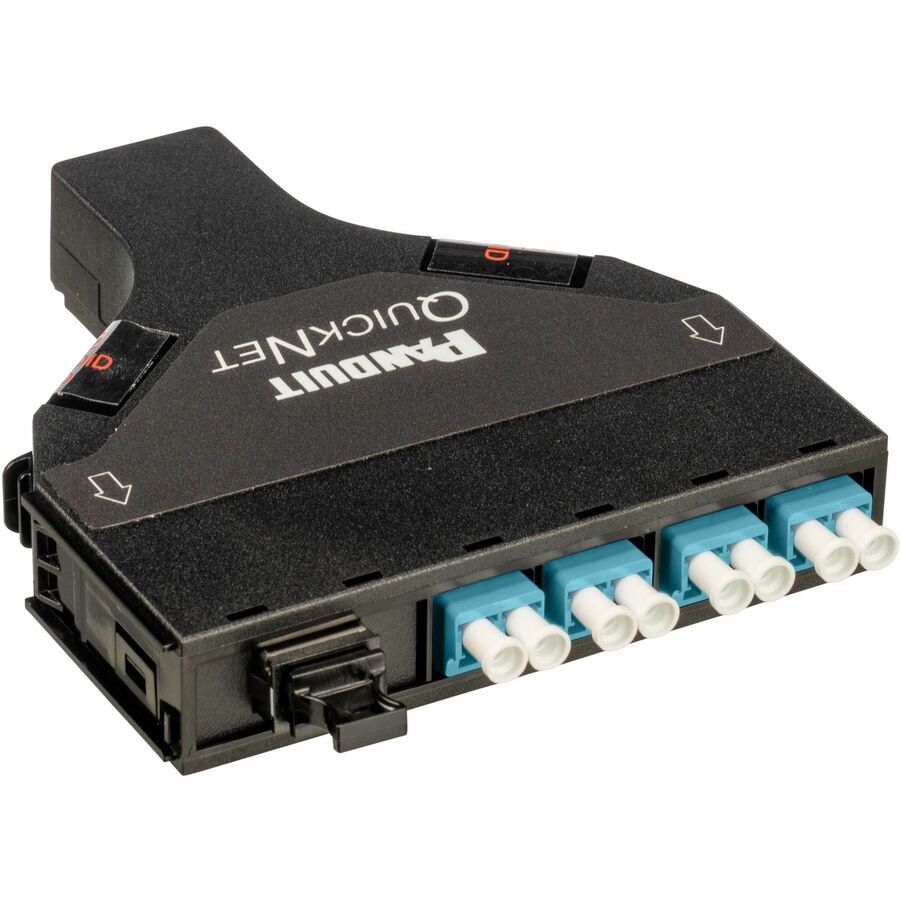

Image may not reflect the actual item.
Price: $477.76
Quantity:
More to Come
Last Updated: Jul 04, 2026
No Sales Tax except these states
, PO and Wire.
MTP Front Access Fiber Optic Cassettes shall consist of pre-terminated and tested MPO and LC adapters for quick and easy deployment in server rack applications, where access to the rear of the cassette may be challenging. These 4-to-1 conversion cassettes are designed to breakout an 8-fiber MPO into four (4) discrete channels using duplex LC connectors. The cassettes comply with all multimode and singlemode requirements and are wired Universal for 4-to-1 breakouts. MTP Fiber Optic Cassettes are available with a standard channel insertion loss of 0.75dB max and an optimized loss of 0.5dB max. Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
Main Specification
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | FQF3ZO-08-10U2 |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | QuickNet |
| Product Name | SFQ Front Access OM4, 4-to-1 Cassette, 8 F, Opt IL, Universal-2 |
| Product Type | Fiber Cassette |
| Technical Information | |
| Media Type Supported | Optical Fiber |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| Number of LC Ports | 4 |
| LC Port Type | Duplex |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Aqua |
| Product Material | Zirconia Ceramic |
| Height | 10.1" |
| Width | 9" |
| Depth | 12.5" |
| Length | 12.5" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
