KLEIN TOOLS

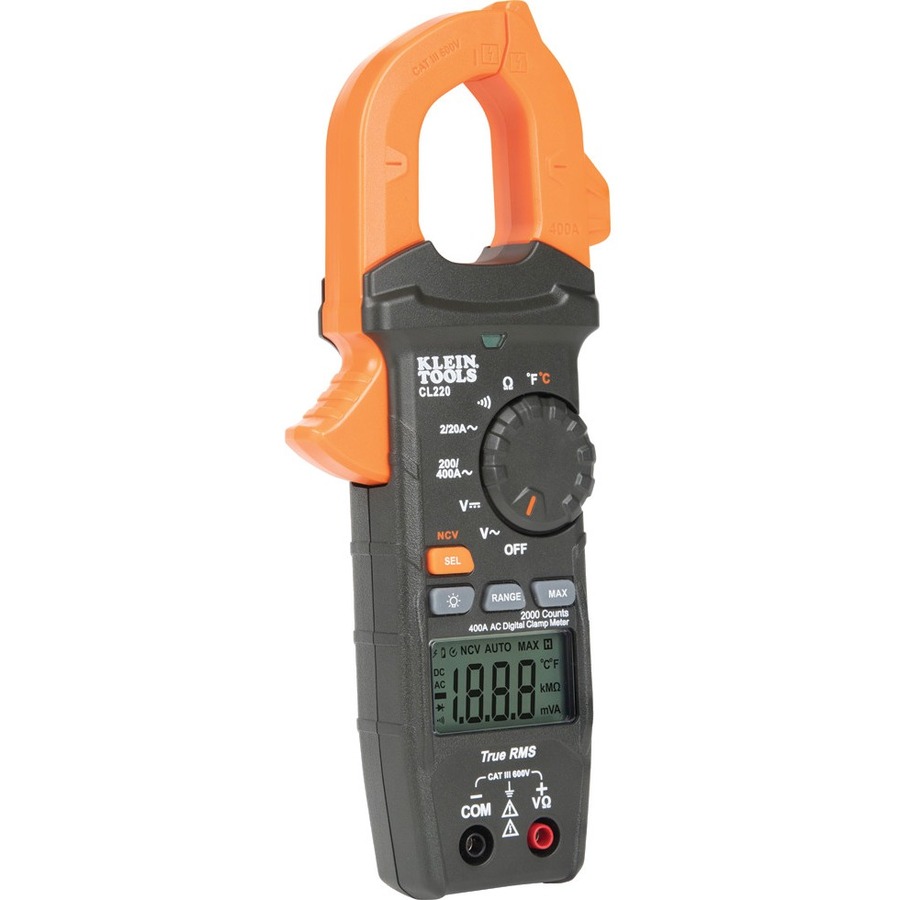

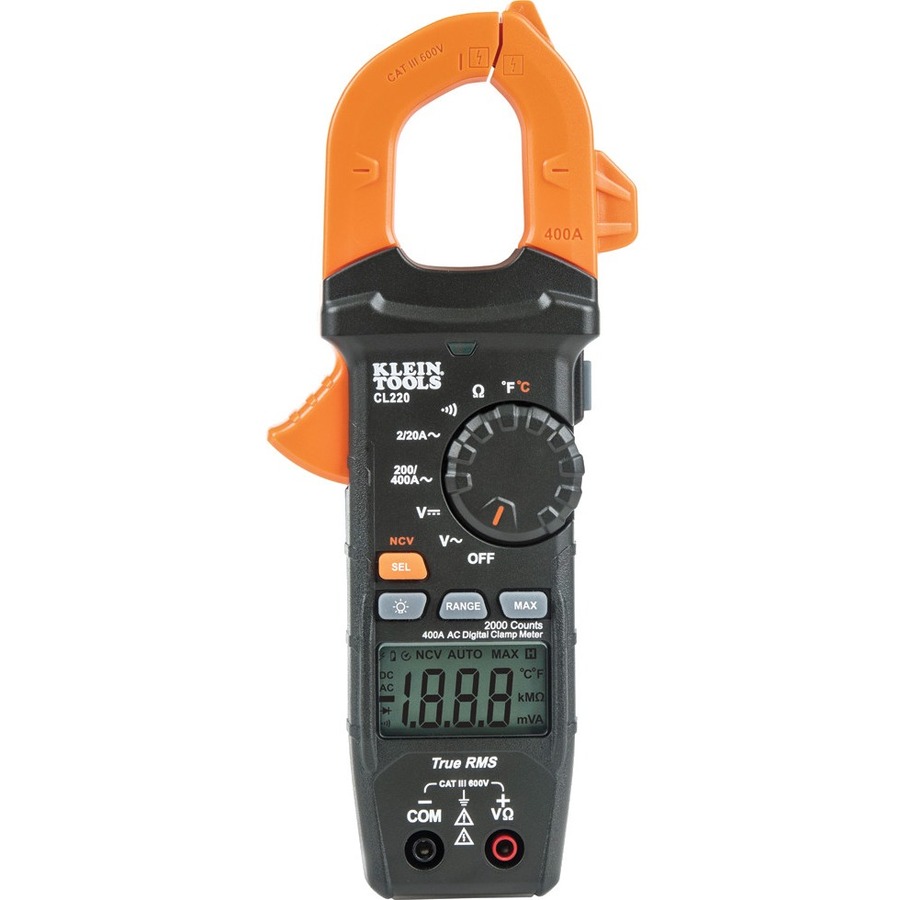

KLEIN TOOLS CL220 Clamp Multimeters & Accessories Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Mfg Part Number: CL220 , Item #: 5763165
, PO and Wire.
The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 minutes to conserve battery life

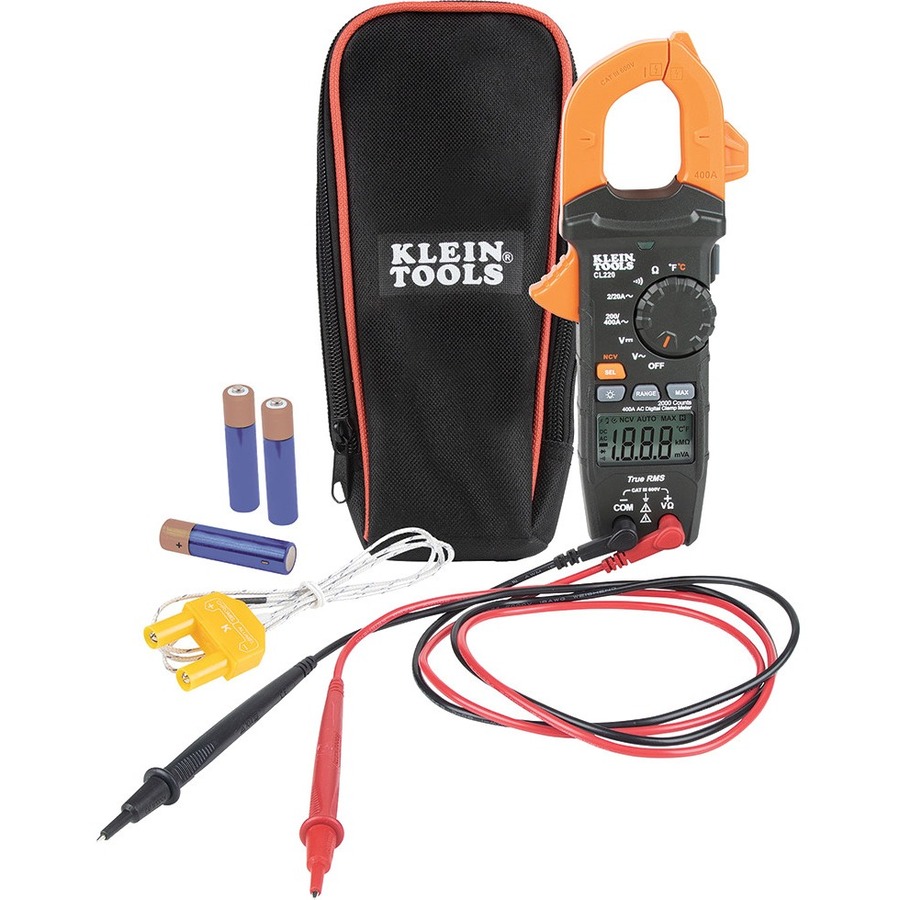

Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment.
| General Information | |
| Manufacturer | Klein Tools |
| Manufacturer Part Number | CL220 |
| Manufacturer Website Address | http://www.kleintools.com |
| Brand Name | Klein Tools |
| Product Model | CL220 |
| Product Name | Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp |
| Product Type | Clamp Meter |
| Technical Information | |
| Meter Type | Digital |
| Measurement Type | DC Voltage |
| Measurement Type | AC Voltage |
| Measurement Type | AC Current |
| Measurement Type | Continuity |
| Measurement Type | Temperature |
| Measurement Type | Resistance |
| True RMS | Yes |
| Ranging Type | Auto |
| Maximum AC Voltage Measurement | 600 V |
| Maximum DC Voltage Measurement | 600 V |
| Maximum AC Current Measurement | 400 A |
| Maximum Resistance Measurement | 20 Mega Ohm |
| Minimum Temperature Measurement | -40°F (-40°C) |
| Maximum Temperature Measurement | 1832°F (1000°C) |
| Jaw Size | 1.60" |
| Safety | CAT III 600V |
| Features | Auto Power Off |
| Features | Data Hold |
| Display & Graphics | |
| Display Counts | 2000 |
| Battery Information | |
| Battery Size | AAA |
| Battery Chemistry | Alkaline |
| Physical Characteristics | |
| Product Material | ABS |
| Height | 1.5" |
| Width | 3.5" |
| Depth | 8.5" |
| Weight (Approximate) | 11.08 oz |
| Miscellaneous | |
| Package Contents |
|
Battery Terminals
Miscellaneous Kits
