This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.

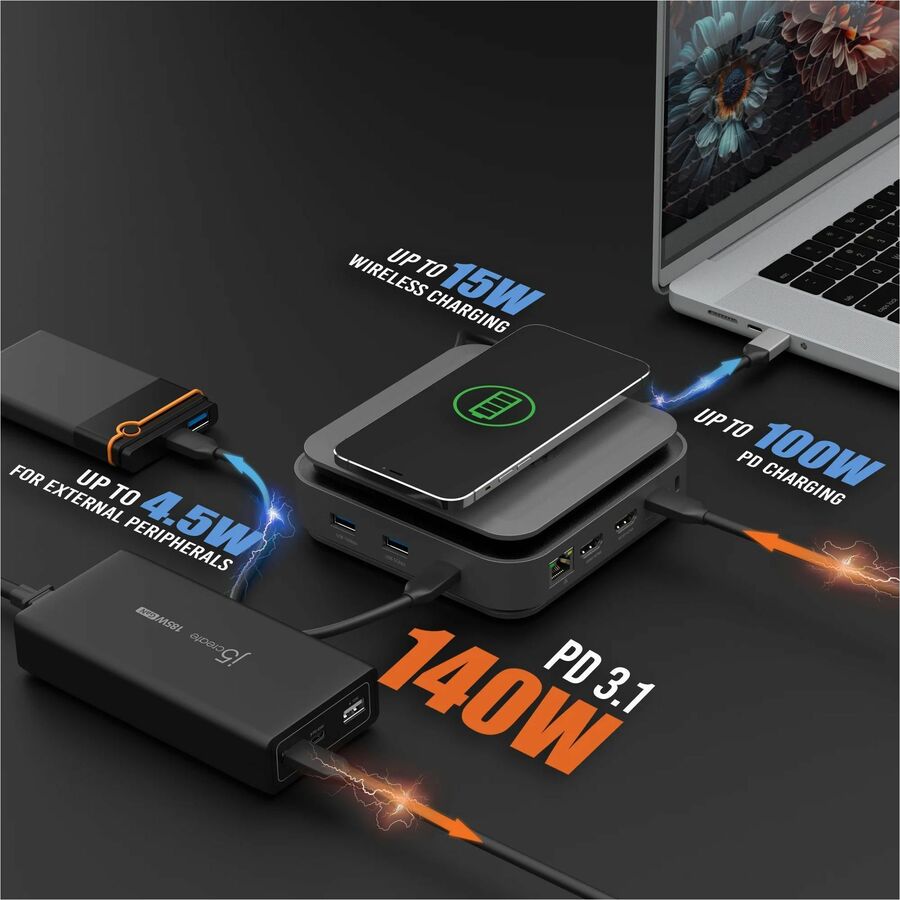

With USB™ Power Delivery 3.1 it'll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port's location.
Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

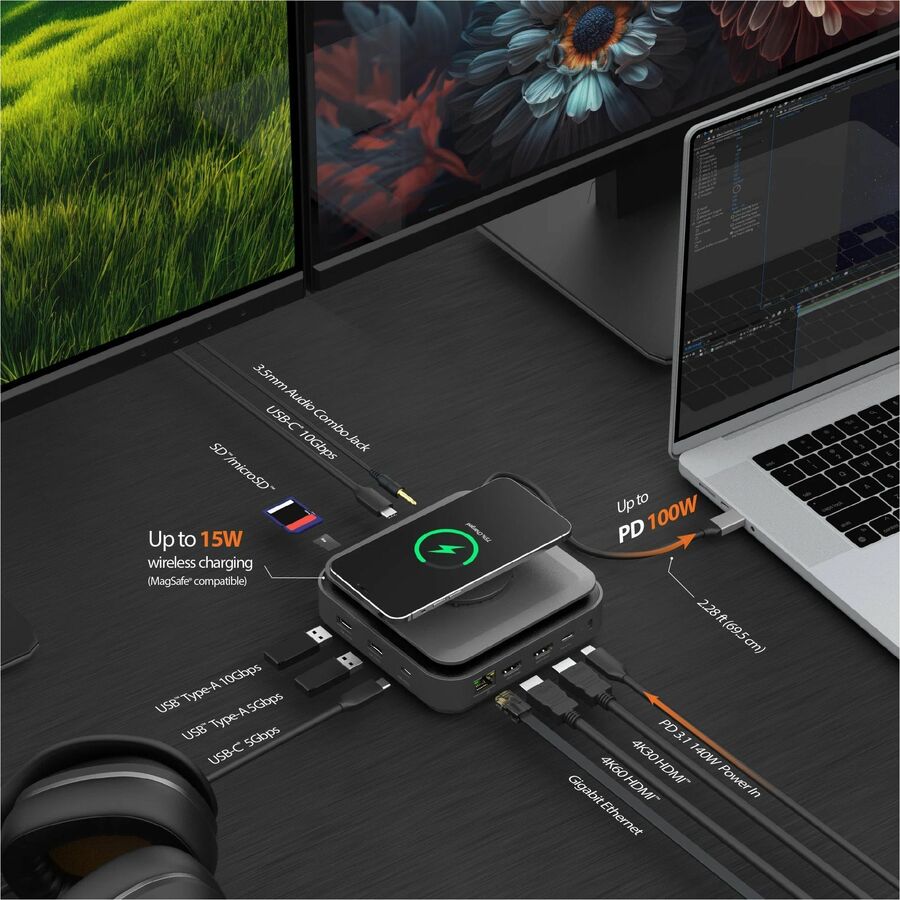

Versatile 12-in-1 expansion, excellent companion for office

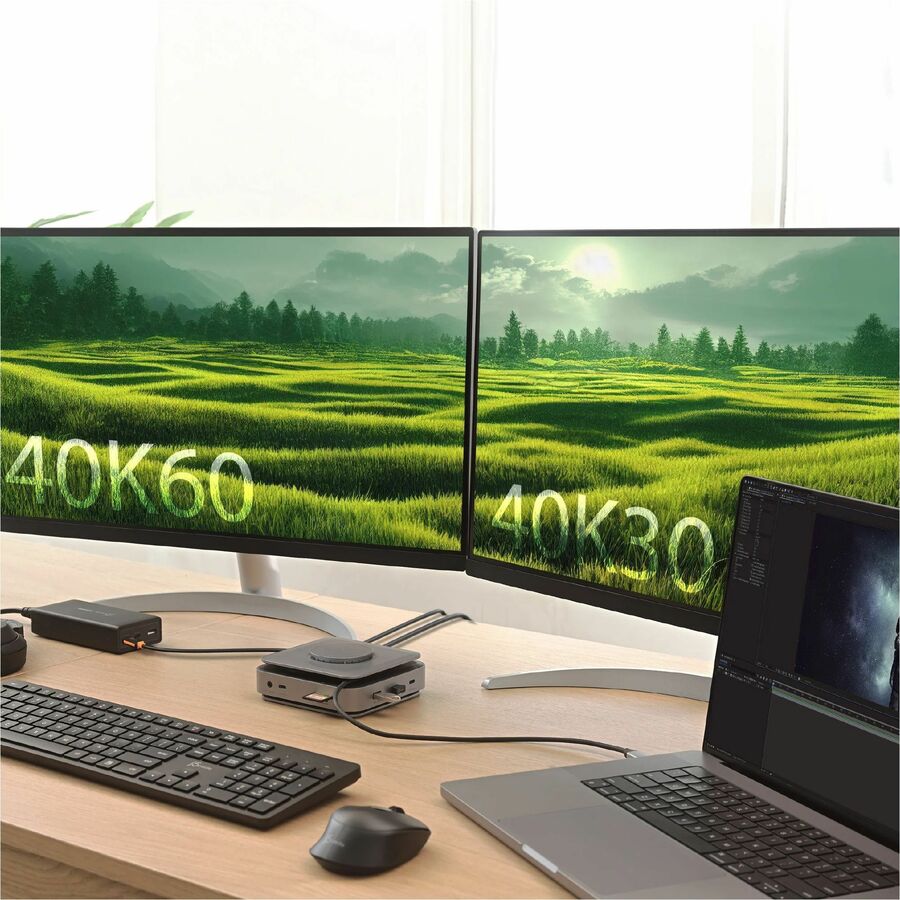

Easily add dual 4K display, extend your display area and maximize product
Integrates a wireless charger compatible with iPhone® MagSafe®, charge smart devices conveniently with up to 15W power
Exclusive PD 3.1 Power distribution technology ensures optimal PD 3.1 power utilization, even when used with computers supporting only PD 3.0
Supports a super-fast Gigabit network. Ensures a stable and dependable internet connection

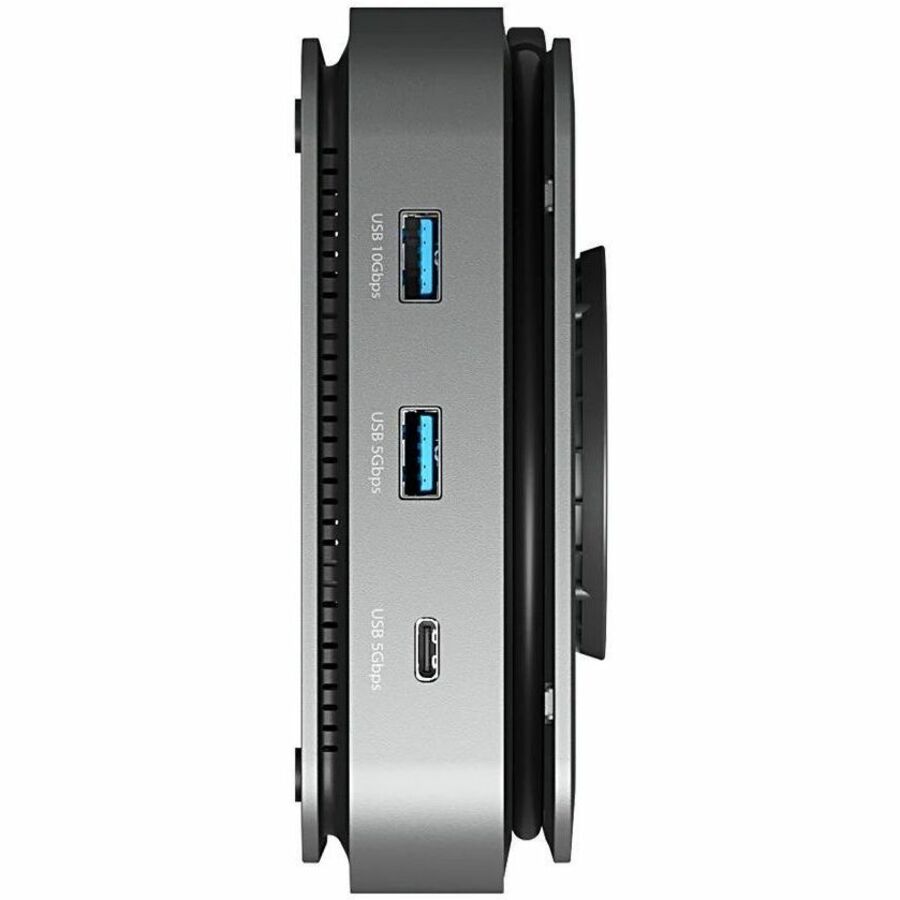

Two USB™ 10Gbps and two USB™ 5Gbps ports for transferring data at ultra-high speeds and connect various peripherals
A built-in cable organizer for easy cable management

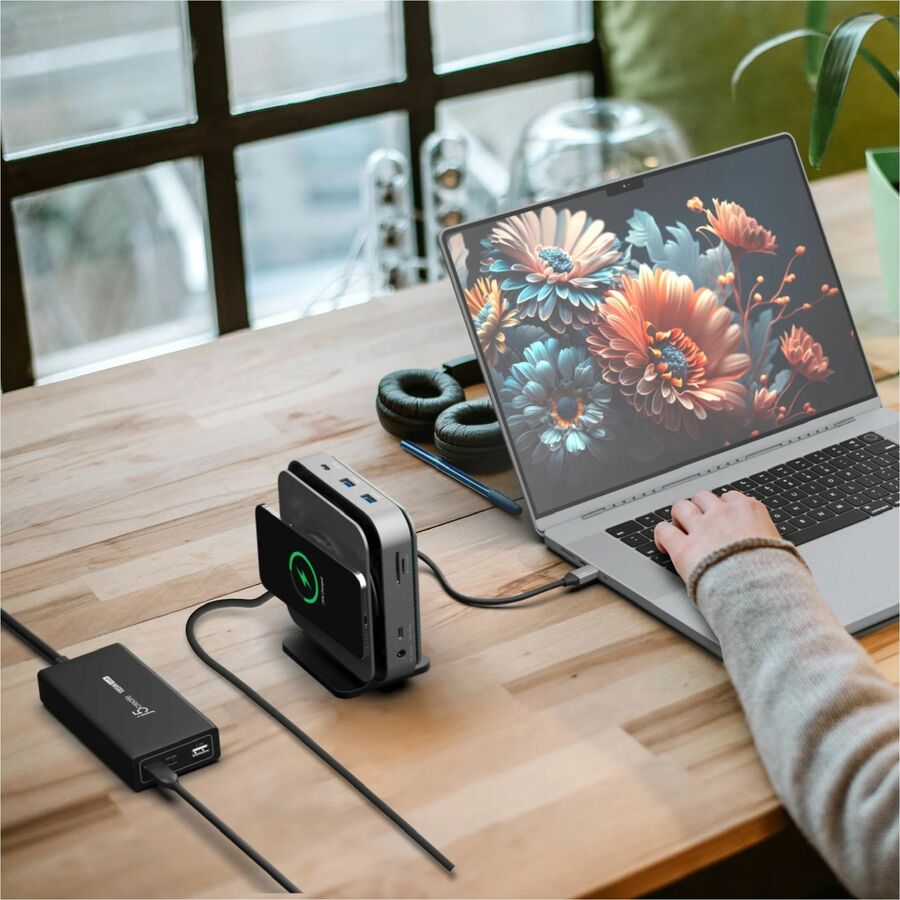

Includes a holder for vertical use, freeing up desk space for enhanced efficiency
Universal Compatibility
Support Windows® 11/10, macOS® 13/12/11, or later
Using with a PD 3.1 140W or higher charger is recommended for optimal performance
| General Information | |
| Manufacturer | j5create |
| Manufacturer Part Number | JCD3199 |
| Manufacturer Website Address | https://en.j5create.com |
| Brand Name | j5create |
| Product Model | JCD3199 |
| Product Name | USB-C Dock Dual 4K HDMI |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | TV |
| Device Supported | Notebook |
| Device Supported | Smartphone |
| Device Supported | Monitor |
| Cable Length | 2.28 ft |
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| Memory Card Supported | SD |
| Features | Wireless Charging |
| Features | Power Delivery Pass-through |
| Features | Compact |
| Features | Security Lock |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Screen Mode Supported | 4K @ 60Hz |
| Supported Resolutions | 3840 x 2160 |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C® PD-in PD3.1 140W (28V/5A), 2 x USB-C® 5Gbps & 10Gbps, 1 x USB-C® Male (PD3.1 100W, 20V/5A) |
| Number of USB Type-C Ports | 3 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Headphone/Microphone Combo Port | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Outputs | 2 |
| USB Power Delivery | 140W |
| Software | |
| Operating System Supported | Mac OS X 12.0 Monterey |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Mac OS X 13.0 Ventura |
| Operating System Supported | Mac OS X 10.14 Mojave |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Power Description | |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Space Gray |
| Height | 1.71" |
| Width | 5.12" |
| Depth | 5.12" |
| Weight (Approximate) | 14.70 oz |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible Devices:
|
| Brand Compatibility | Apple |
| Brand Compatibility | Samsung |
| Brand Compatibility | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
