Harman
Harman AC266 12 2-WAY FULL-RANGE SYSTEM 12 2-WAY SYSTEM 60 X 60 WAVEGUI
Mfg Part Number: AC266 , Item #: 5747191

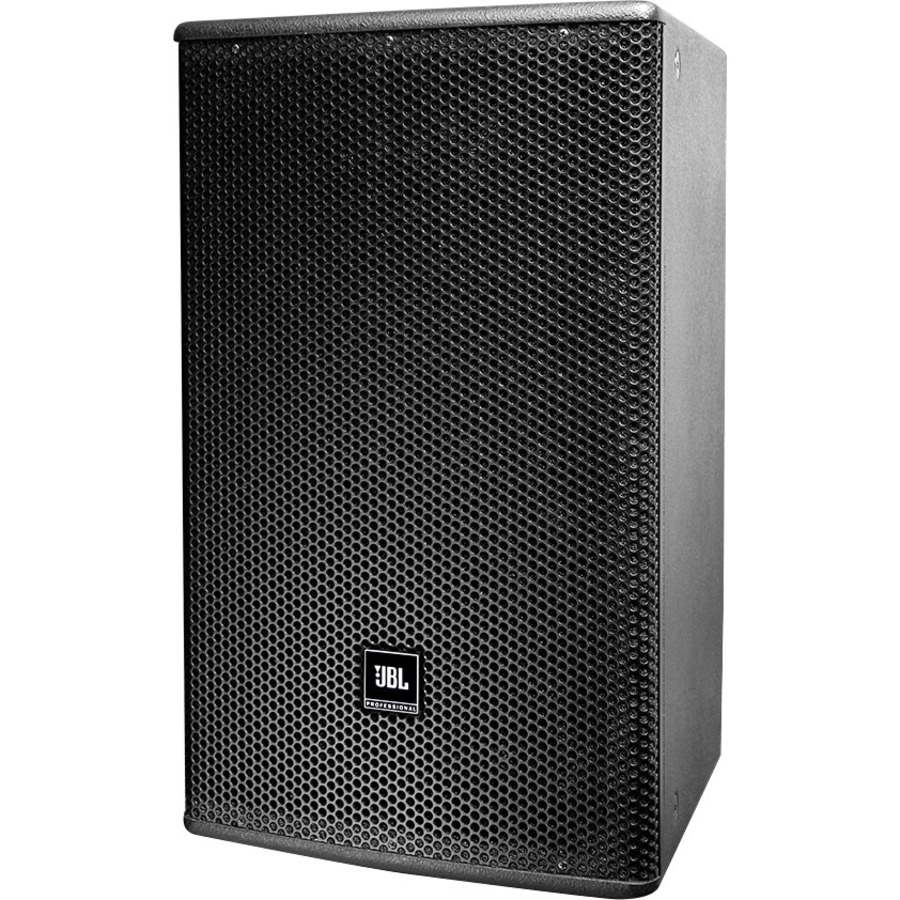

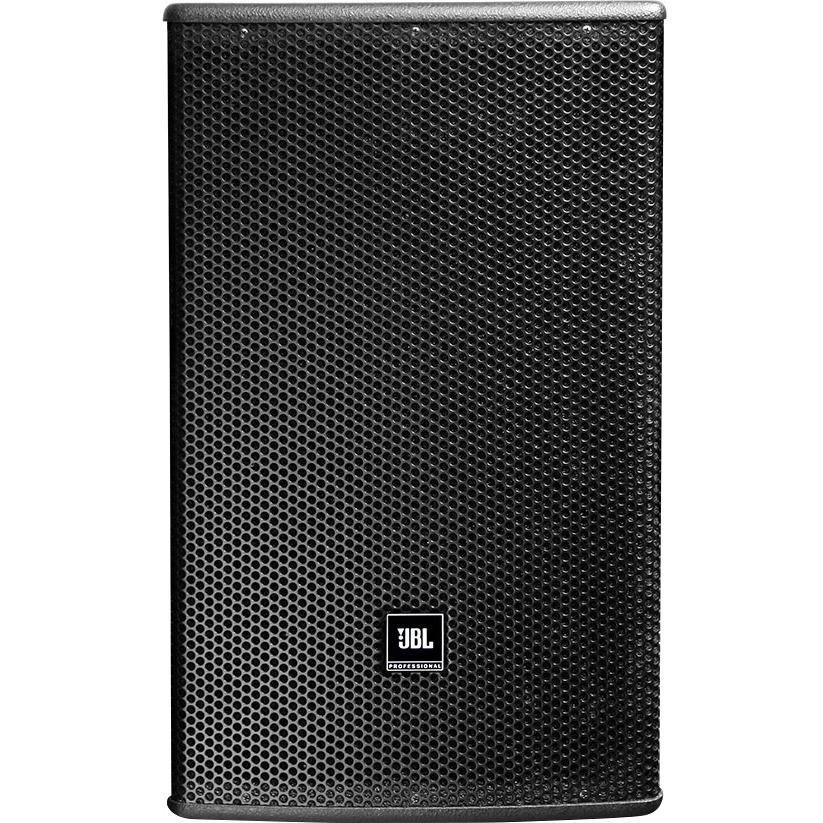

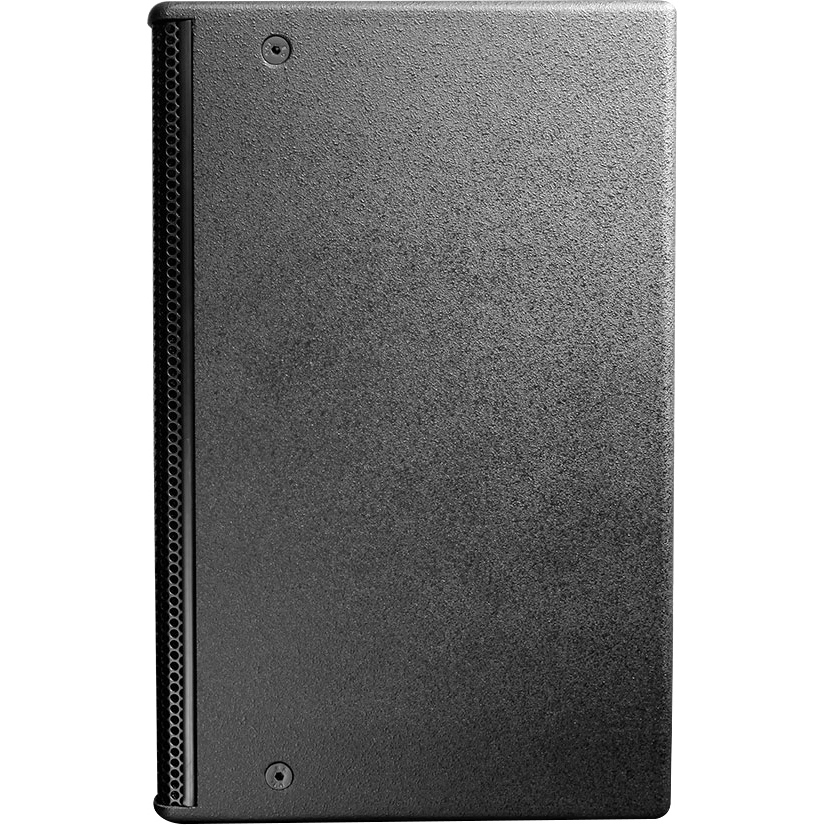

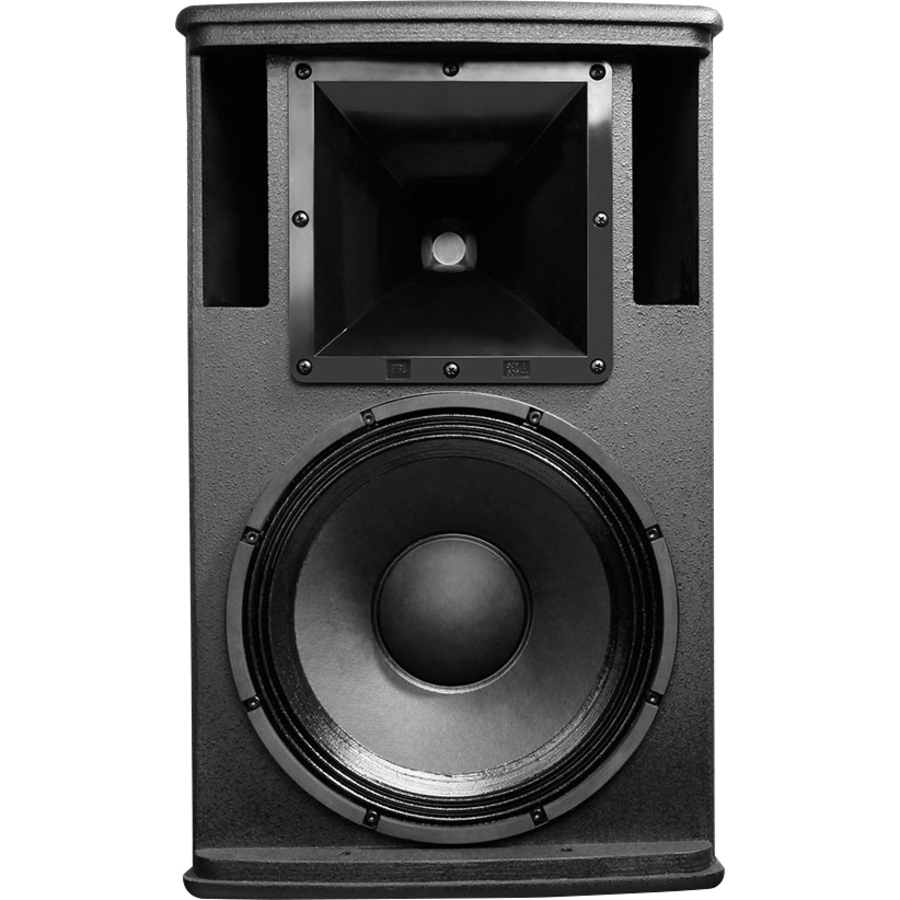

Image may not reflect the actual item.
Price: $1,027.42
Quantity:
More to Come
Last Updated: Nov 03, 2025
No Sales Tax except these states
, PO and Wire.
Two-Way Full-Range Loudspeaker with 1 x 12"" LF
AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Main Specification
| General Information | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AC266 |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | JBL Professional |
| Product Model | AC266 |
| Product Name | 2-Way Full-Range Loudspeaker with 1 x 12" LF |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 250 W |
| PMPO Output Power | 1000 W |
| Woofer Driver Size | 12.20" |
| Tweeter Driver Size | 0.98" |
| Minimum Frequency Response | 80 Hz |
| Maximum Frequency Response | 18 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 97 dB |
| Physical Characteristics | |
| Product Color | Black Textured |
| Form Factor | Wall Mountable |
| Height | 23.6" |
| Width | 14.6" |
| Depth | 15.43" |
| Weight (Approximate) | 38.36 lb |
| Miscellaneous | |
| Application/Usage | House of Worship |
| Application/Usage | Stage |
| Application/Usage | Presentation Room |
| Application/Usage | Multi Media Space |
| Application/Usage | Hospitality |
| Application/Usage | Club |
| Application/Usage | Educational Facility |
| Application/Usage | Retail |
| Application/Usage | Bar |
