SHUTTLE
Shuttle SY NC40U3 XPC nano Ci3-1215U Intel UHD no Memory OS Retail
Mfg Part Number: NC40U3 , Item #: 5736476
Image may not reflect the actual item.
Price: $627.90
Quantity:
More to Come
Last Updated: Mar 15, 2026
No Sales Tax except these states
, PO and Wire.

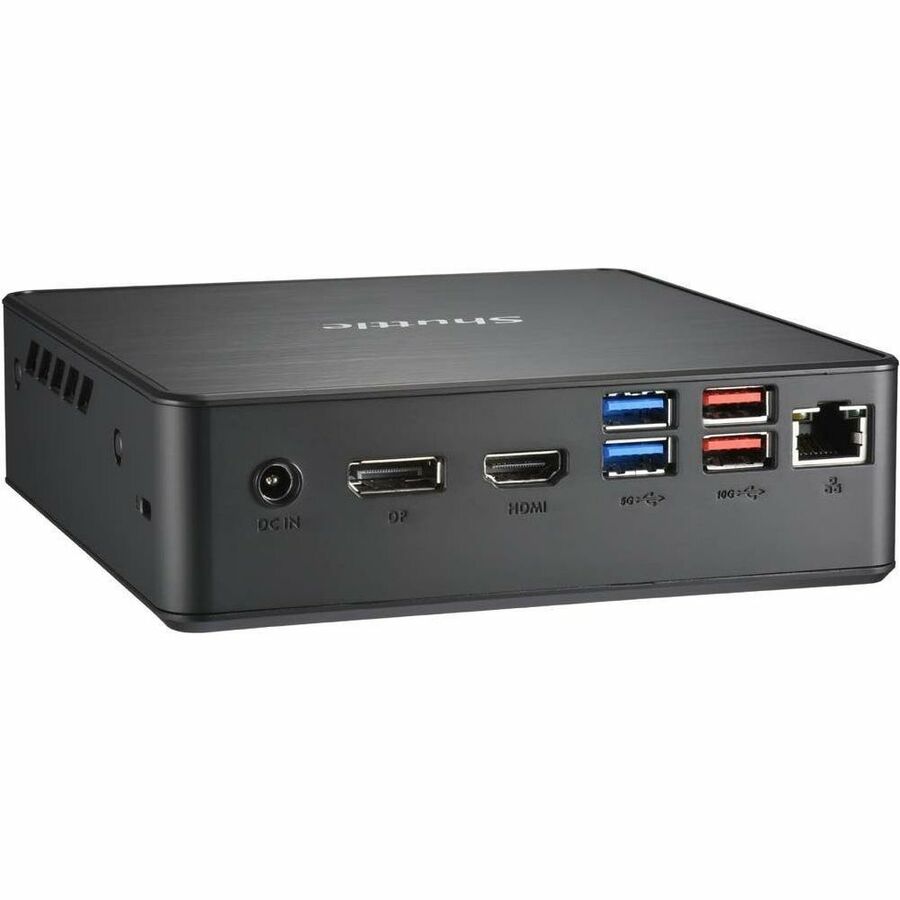

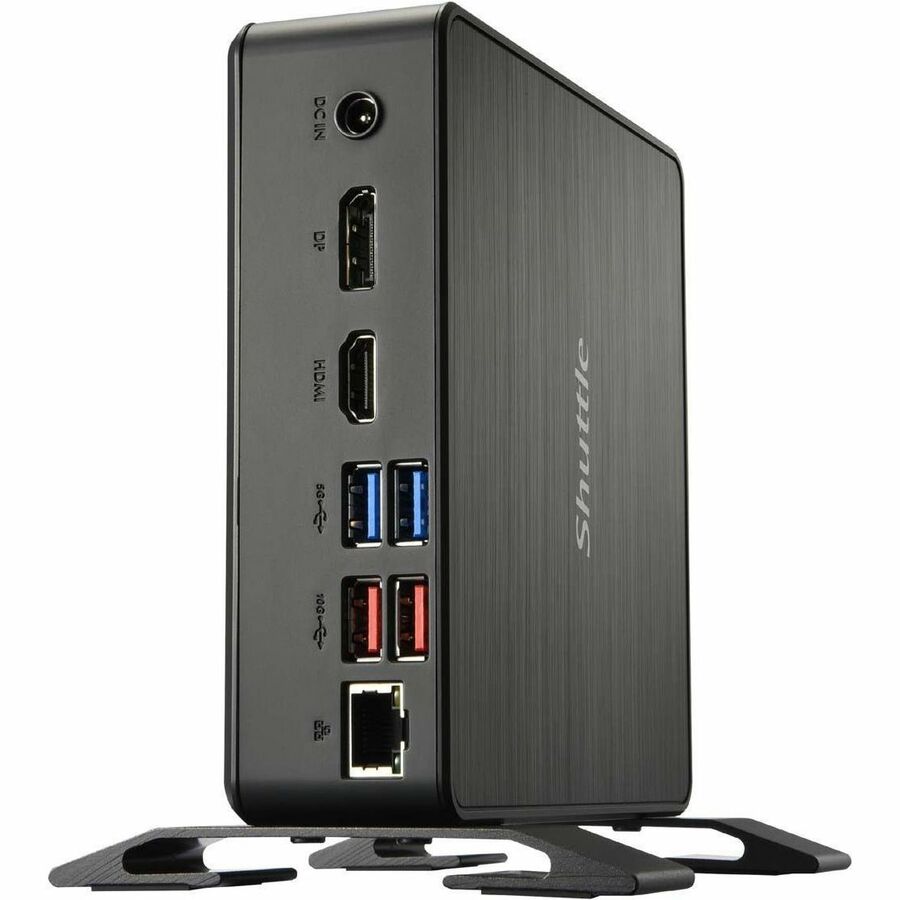

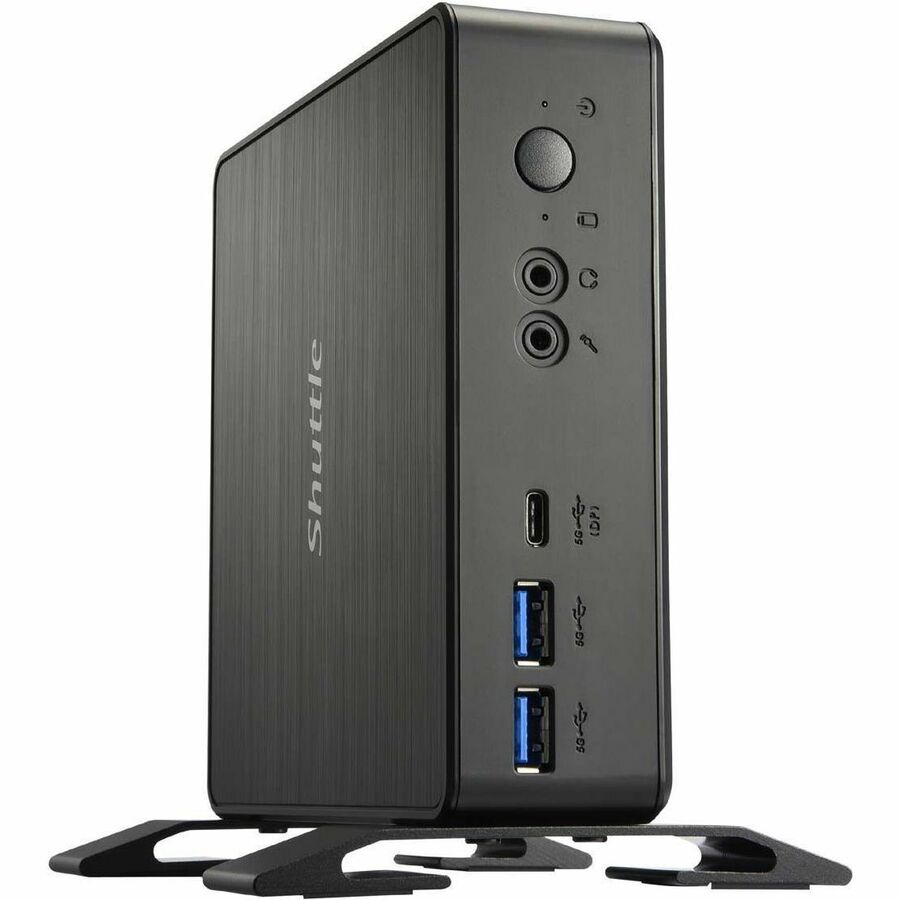

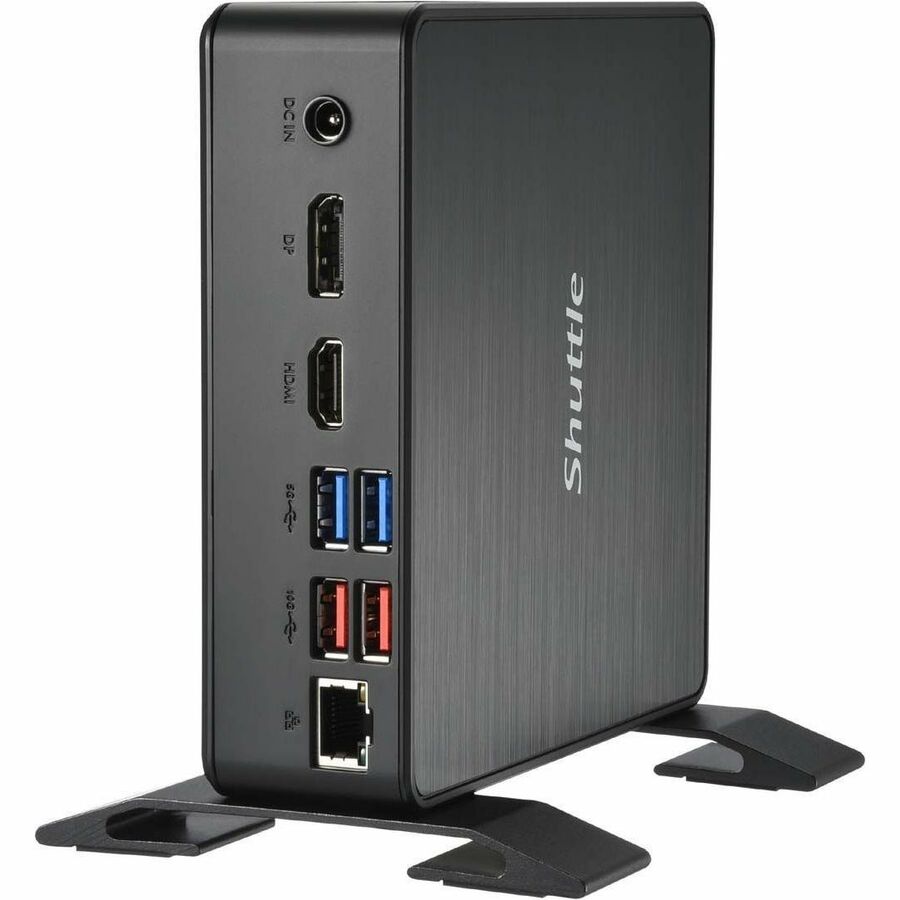

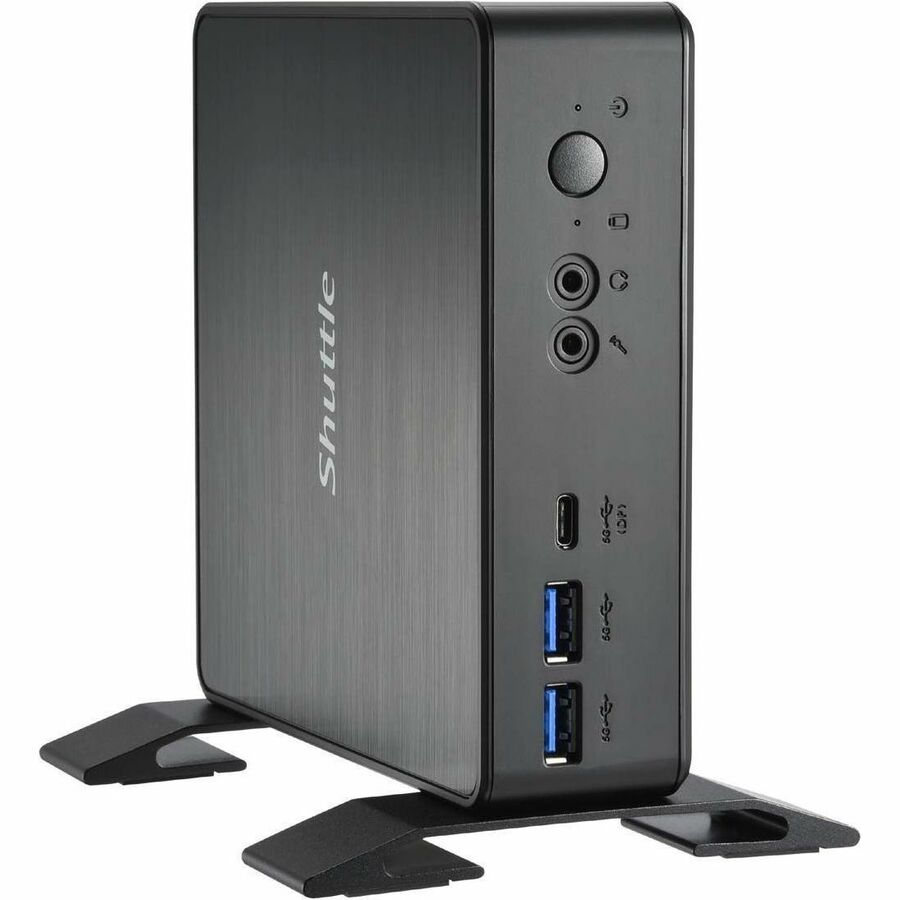

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT

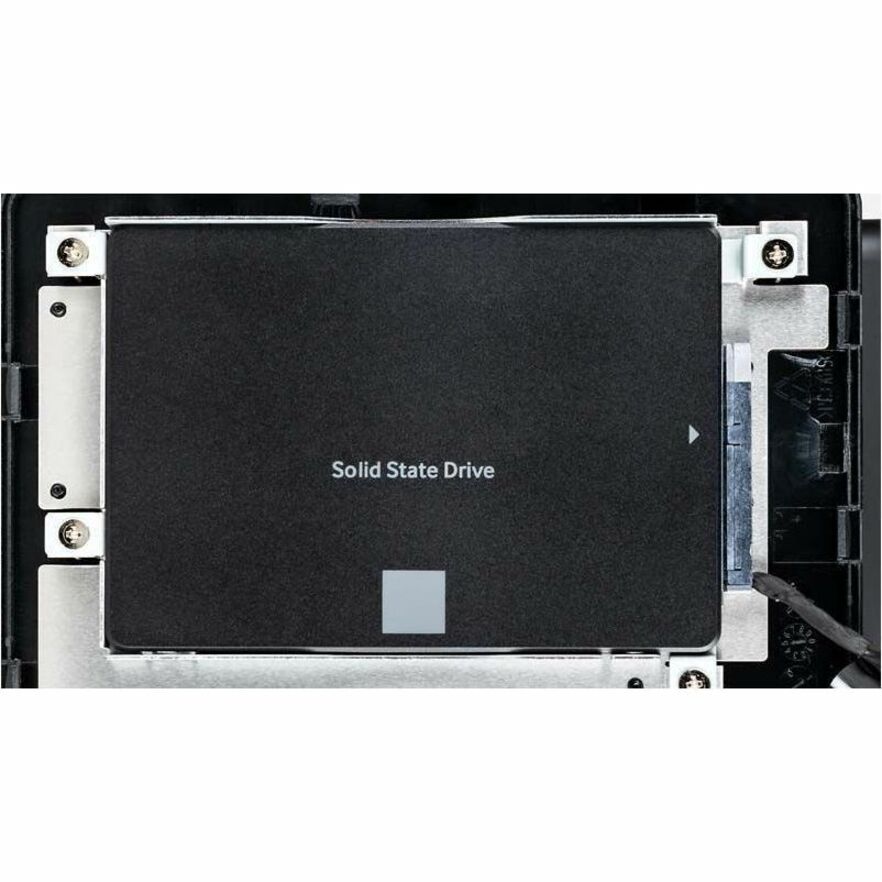

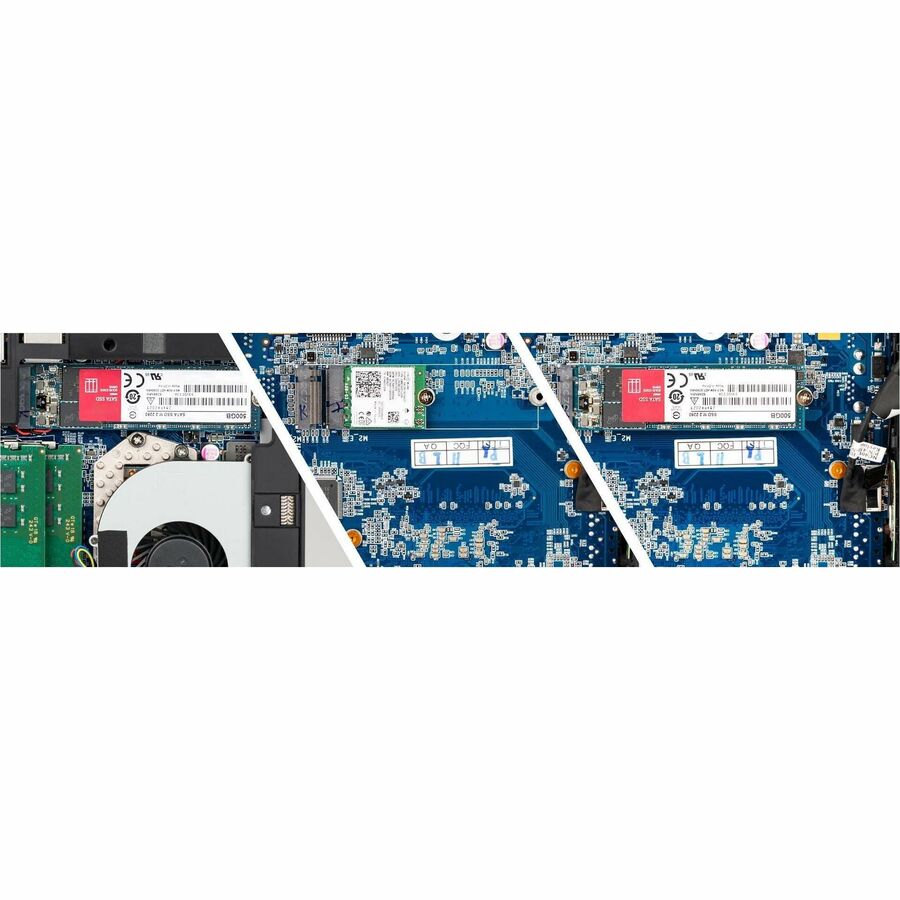

The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
Main Specification
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U3 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U3 |
| Product Name | XPC nano Barebone NC40U |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i3 |
| Processor Generation | 12th Gen |
| Processor Model | i3-1215U |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.20 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |

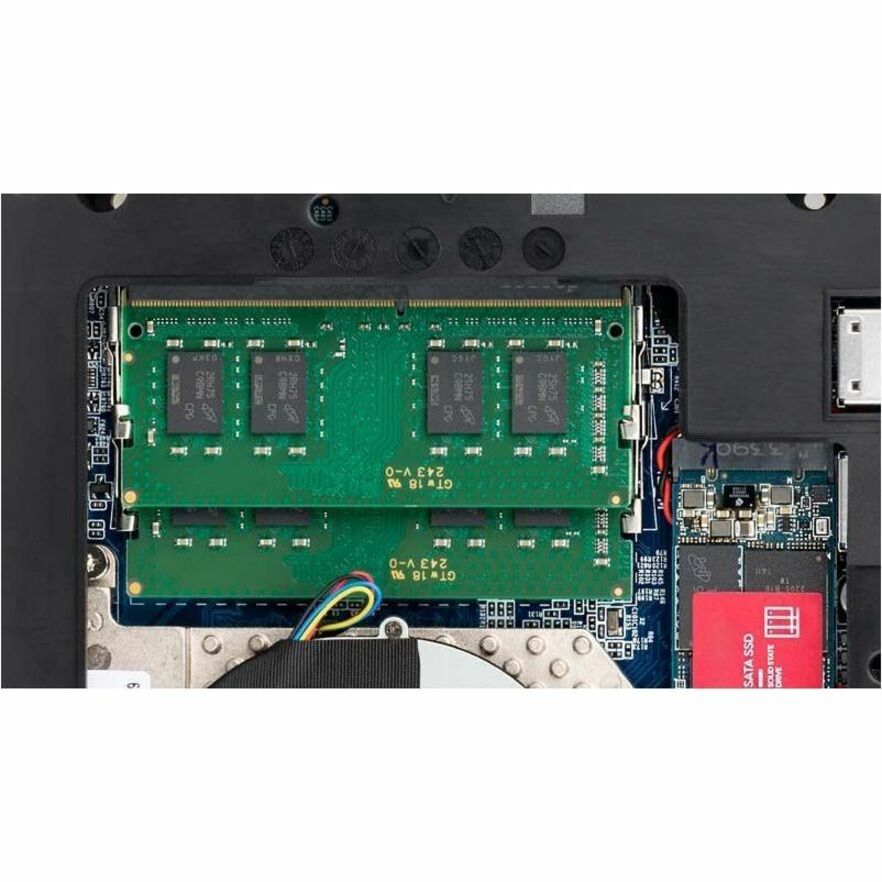

| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 3.0 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 x4 |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | No |
| Interfaces/Ports | |

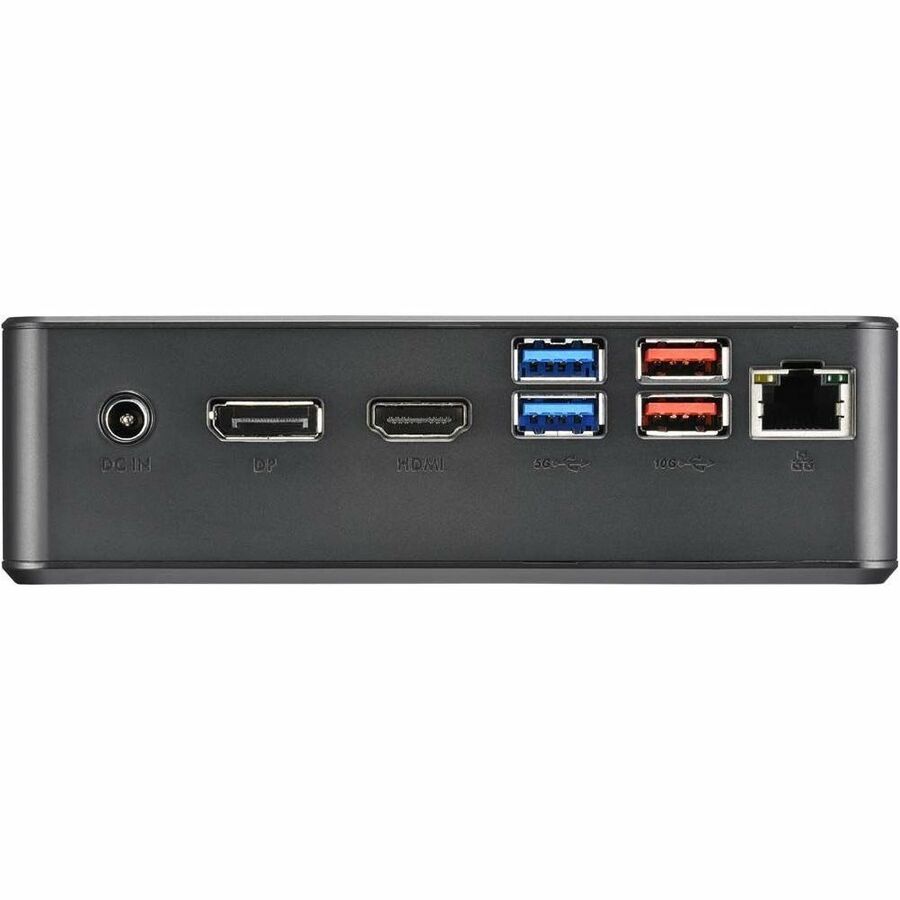

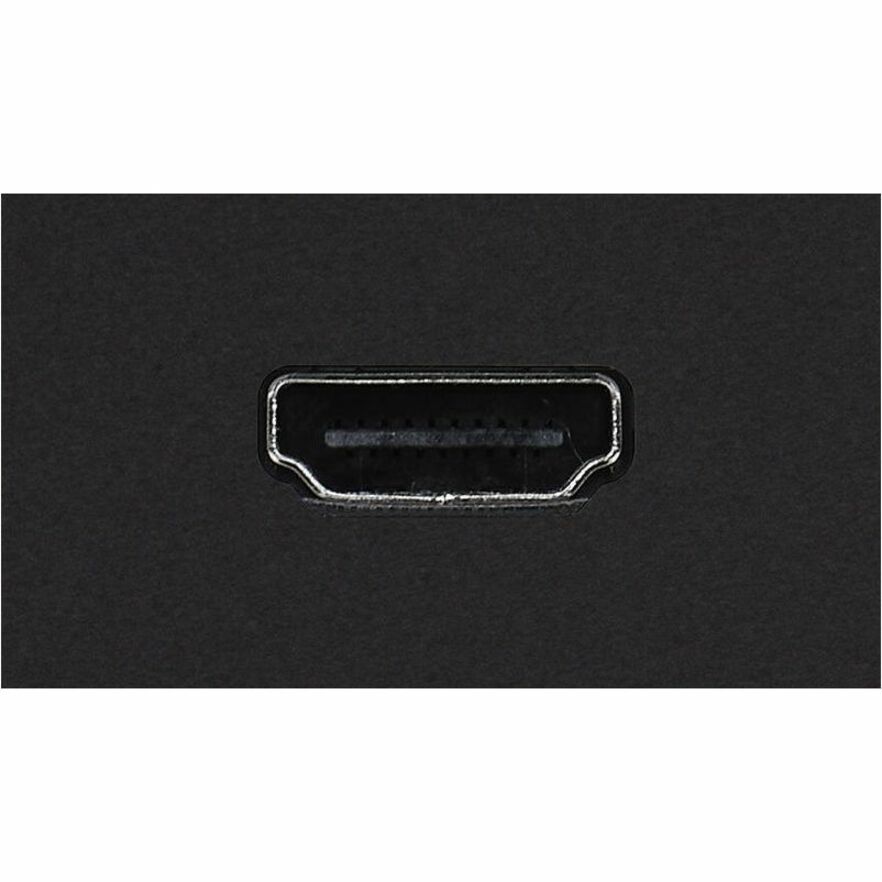

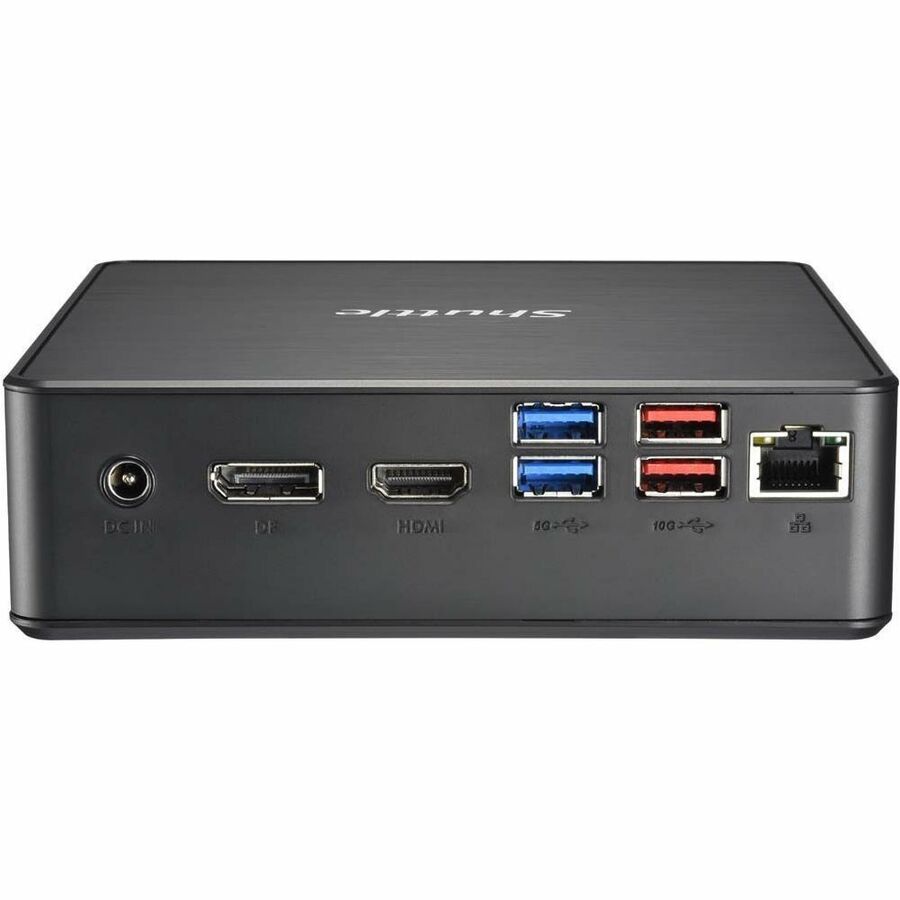

| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |

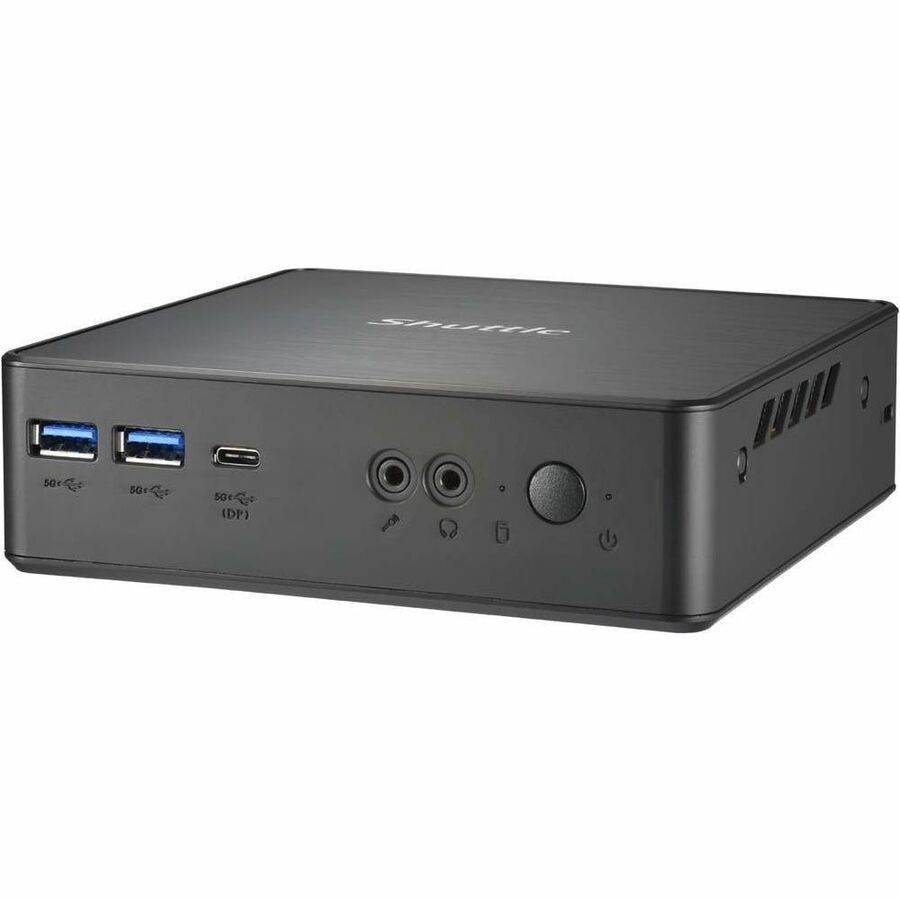

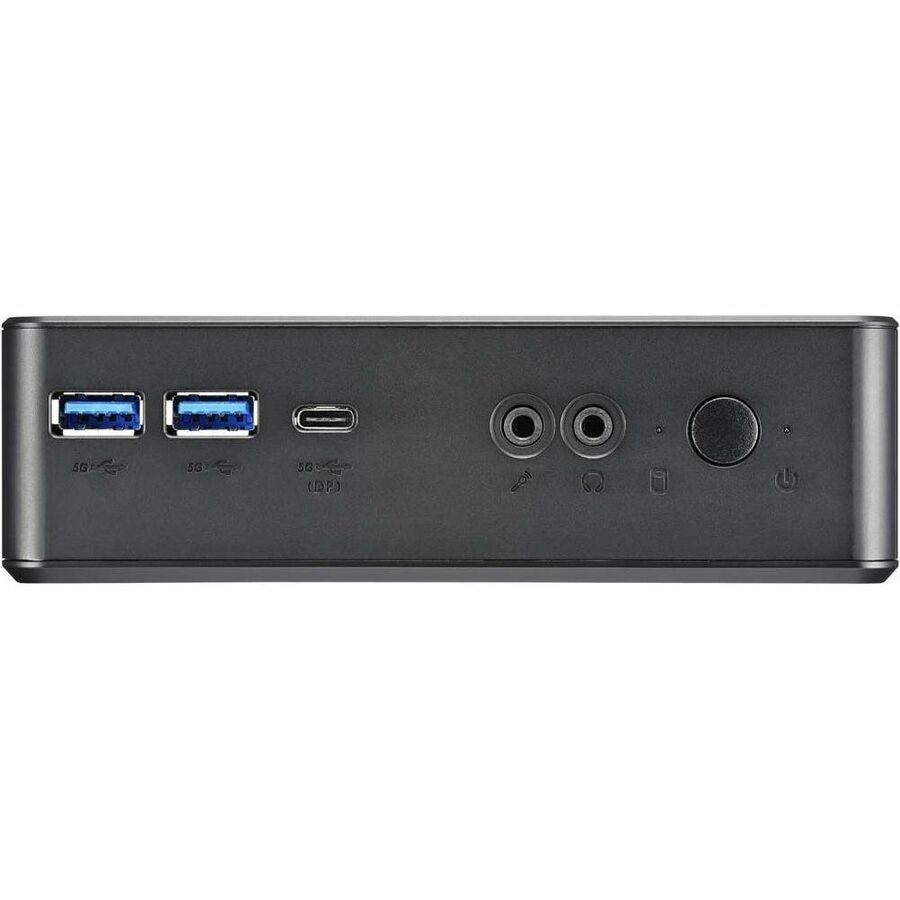

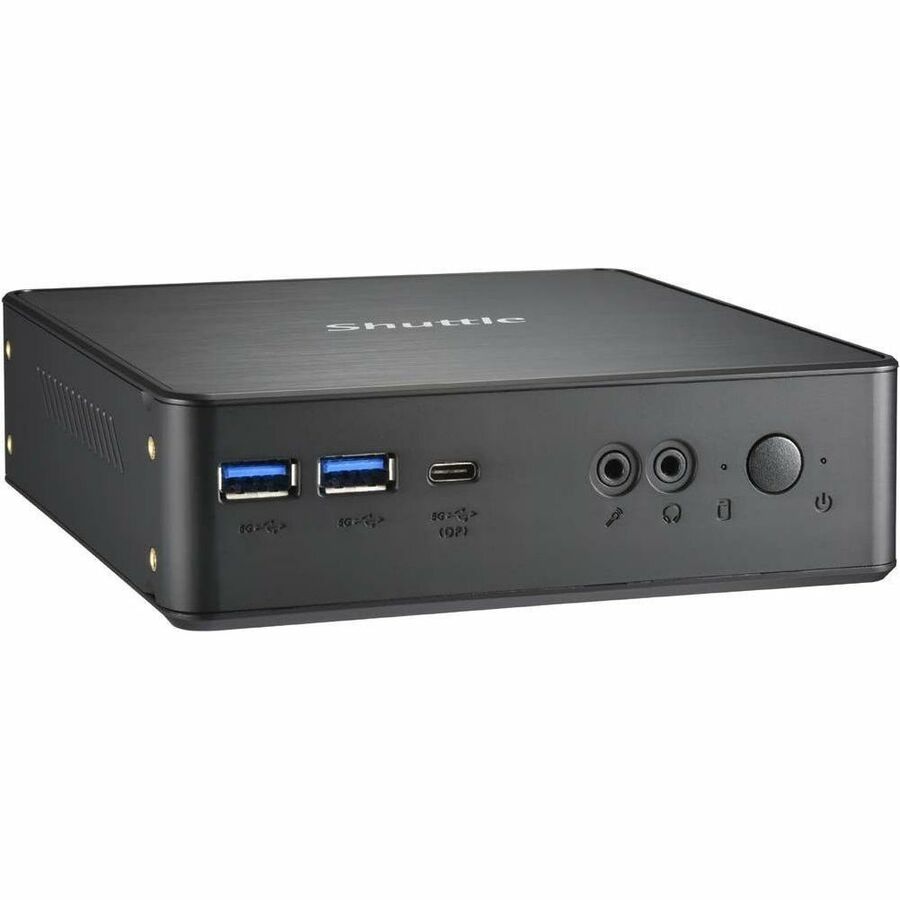

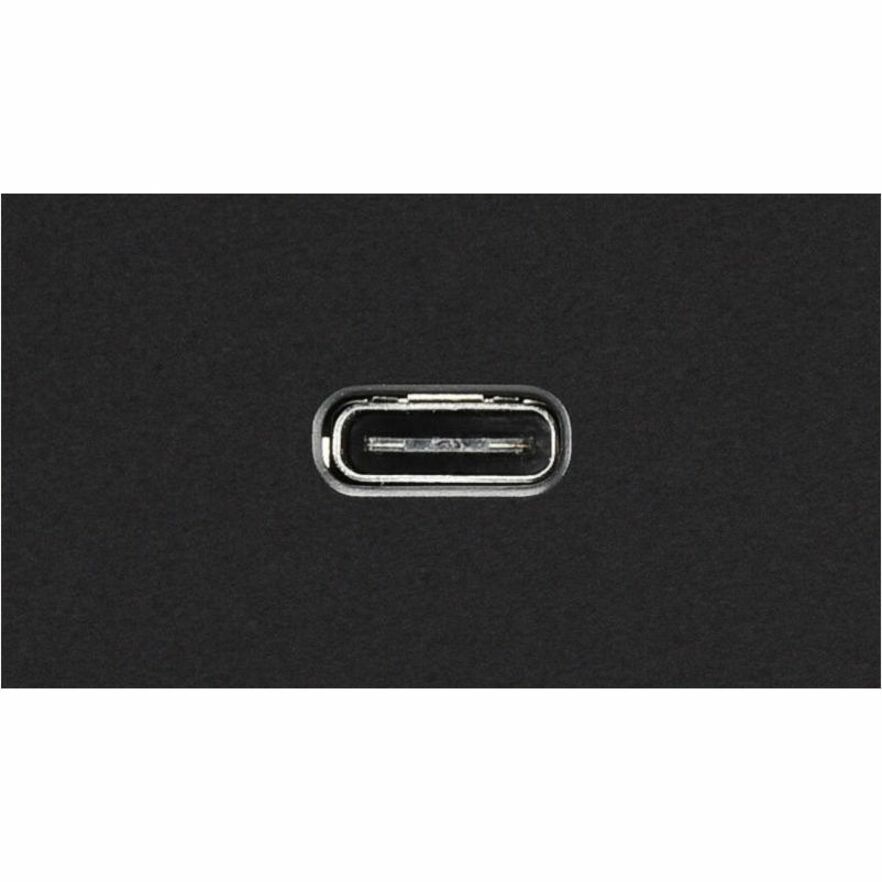

| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C |
| Network (RJ-45) | Yes |
| Operating System | |
| Operating System Supported | Linux |
| Operating System Supported | Windows 10 x64 |
| Operating System Supported | Windows 11 x64 |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.7" |
| Width | 5.6" |
| Depth | 5.6" |
| Weight (Approximate) | 14.11 oz |
| Miscellaneous | |
| Energy Star | Yes |
