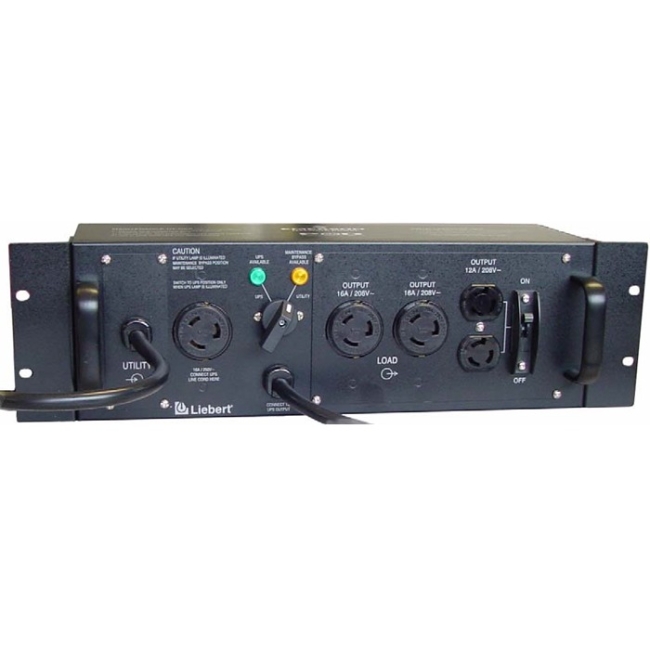

VERTIV MP2-220N Liebert MicroPOD 4-Outlets PDU

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-220N) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-220N is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with one NEMA NEMA 6-20P input connector. The MicroPOD has two NEMA L6-15R and two NEMA L6-20R output connector and is available at 208V. It supports a max current of 16A.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	MP2-220N
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Line	MicroPOD
Product Model	MP2-220N
Product Name	MicroPOD MP2-220N Bypass Switch
Product Type	Bypass Switch
Technical Information
Plug/Connector Type	NEMA 6-20P
Plug/Connector Type	Hardwired
Receptacles	2 x NEMA L6-15R
Receptacles	Hardwired
Receptacles	2 x NEMA L6-20R
Protection Type	Signal
Protection Type	Surge
Power Description
Input Voltage	208 V AC
Output Voltage	208 V AC
Current	16 A
Physical Characteristics
Form Factor	Rack-mountable
Miscellaneous
Package Contents	MicroPOD MP2-220N Bypass Switch Brackets for Rack Mounting
Compatibility	Liebert Micro-UPS Systems
Certifications & Standards	UL cUL
Country of Origin	China
Warranty
Limited Warranty	2 Year
