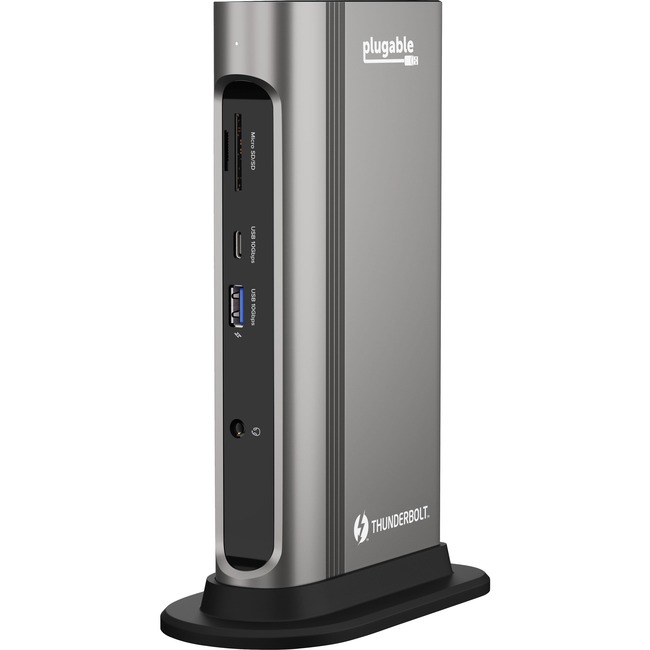

TBT3-UDZ PLUGABLE THUNDERBOLT 3 DOCK W/ 96W CHARGING DUAL MONITOR USB C; Missing 0.8m 40 Gbps Thunderbolt 3 Cable and Missing Quick Start Guide *** Open Box Item ***

The TBT3-UDZ is the Plugable's most versatile, powerful and accessible mac docking station yet. Its unique, exclusive design allows users to connect up to two 4K displays using either HDMI or DisplayPort without the need of external adapters - the first Thunderbolt 3 docking station to offer this flexibility of display types. Using the Intel Titan Ridge chipset and Plugable's custom design, the TBT3-UDZ delivers a combination of more port options, fastest charging up to 96W, and widest PC and Mac compatibility of any thunderbolt 3 dock on the market. With this charging dock, we set out to solve customer pain points that users have been dealing with for a long time now. These include the difference between Thunderbolt 3 and USB-C, which have identical looking ports, HDMI versus DisplayPort, USB-C or USB-A peripheral ports, and the different levels of charging wattage offered. This USB C dock eliminates any confusion between these different types of technologies by offering a simplified solution that answers these questions for you. *USB-C and Apple M1 / M2 / M3 systems will operate at reduced functionality

More from the Manufacturer

General Information
Manufacturer	Plugable Technologies
Manufacturer Part Number	TBT3-UDZ
Manufacturer Website Address	http://www.plugable.com
Brand Name	Plugable
Product Model	TBT3-UDZ
Product Name	Thunderbolt 3 and USB-C Dual Display Dock with 96W Host Charging
Packaged Quantity	1
Product Type	Docking Station
Technical Information
Connectivity Technology	Wired
Device Supported	Desktop PC
Device Supported	Notebook
Device Supported	Monitor
Memory Card Reader	Yes
Memory Card Supported	microSD
Memory Card Supported	SD
Number of Displays Supported	2
Screen Mode Supported	4K
Supported Resolutions	1024 x 768
Supported Resolutions	1920 x 1080
Supported Resolutions	3840 x 2160
Supported Resolutions	1600 x 900
Supported Resolutions	800 x 600
Supported Resolutions	1152 x 864
Supported Resolutions	1280 x 800
Supported Resolutions	1280 x 1024
Supported Resolutions	2560 x 1440
Supported Resolutions	1280 x 720
Supported Resolutions	4096 x 2160
Supported Resolutions	3440 x 1440
Supported Resolutions	640 x 480
Supported Resolutions	3840 x 1600
Maximum Data Transfer Rate	1.25 GB/s
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Host Interface	Thunderbolt 3
Host Interface	USB Type C
Total Number of USB Ports	7
Number of USB 3.0 Ports	5
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	1
Number of USB Type-A Ports	6
USB Type-C	Yes
USB Type-C Detail	1 x USB-C, Front, USB 3.2 Gen 2 (10Gbps)
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
DisplayPort	Yes
DisplayPort Version	1.4
Number of DisplayPort Outputs	2
Headphone/Microphone Combo Port	Yes
HDMI	Yes
HDMI Version	2
Number of HDMI Outputs	2
Thunderbolt	Yes
USB Power Delivery	100W
Software
Operating System Supported	macOS
Operating System Supported	Windows
Power Description
Maximum Power Supply Wattage	170 W
Miscellaneous
Package Contents	Thunderbolt 3 and USB-C Dual Display Dock with 96W Host Charging 1 x Quick Start Guide 1 x Power supply 1 x Power cable 1 x Vertical stand 1 x 0.8m 40 Gbps Thunderbolt 3 Cable
Compatibility	Apple MacBook Retina Notebook
Brand Compatibility	Apple
Country of Origin	Thailand
Warranty
Limited Warranty	2 Year
