ADVANTECH

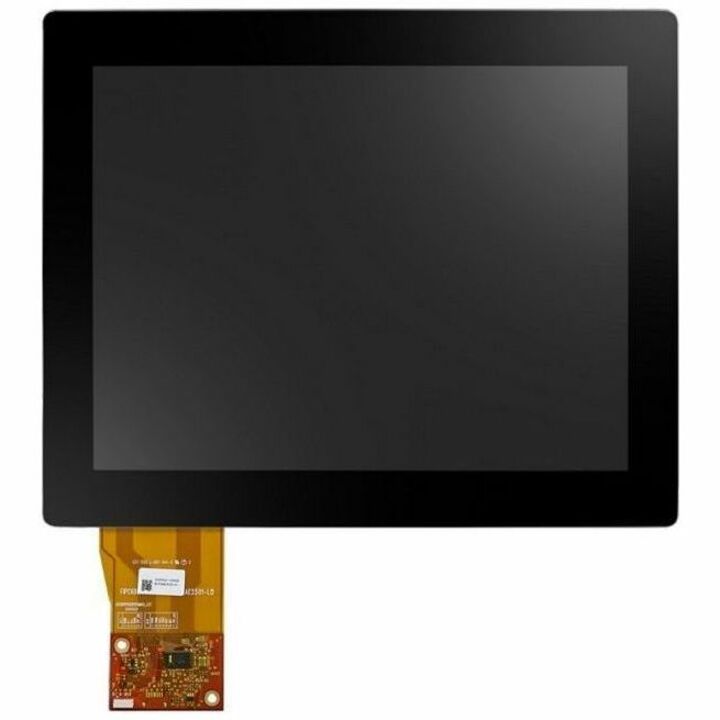

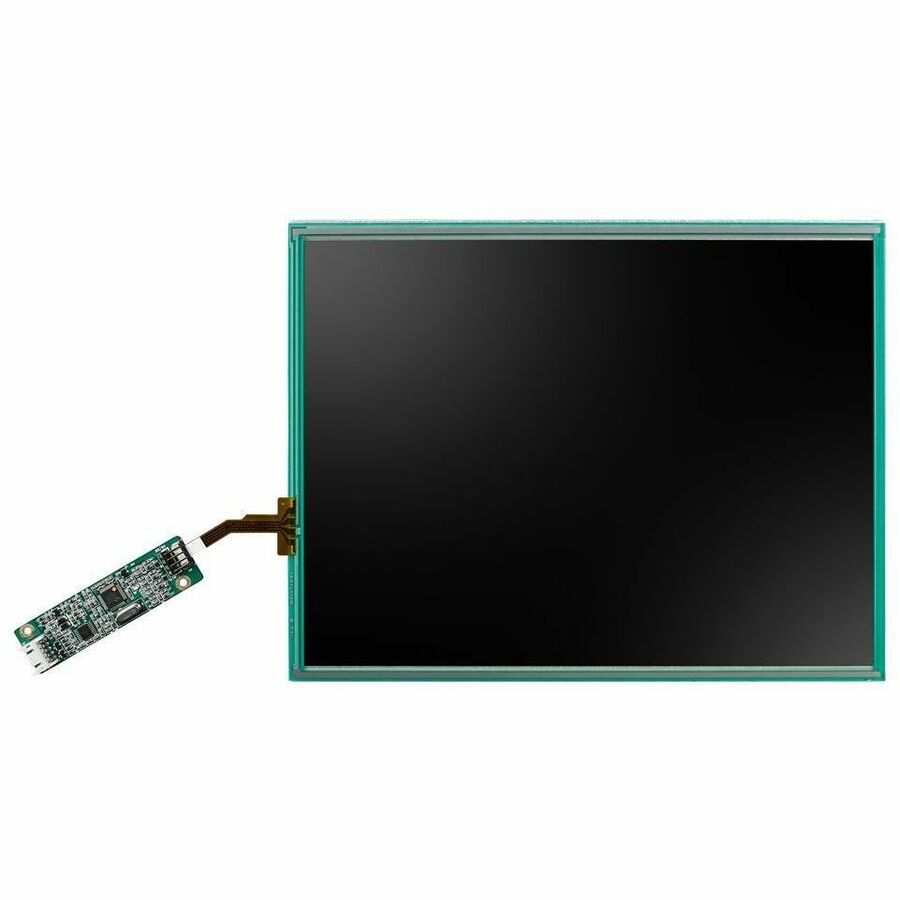

ADVANTECH IDK-1110R-23SVA1E 10.4IN LED PANEL 230N 800X600(G)
Mfg Part Number: IDK-1110R-23SVA1E , Item #: 5706892
Image may not reflect the actual item.
Price: $221.57
Quantity:
Status: Active
Status: Active
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDK1110R23SVA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | IDK-1110R-23SVA1E |
| Product Name | IDK-1110R-23SVA1E 10.4" 800x600 LVDS 230nits LED 6/8 bit with 4-wire Resistive Touch Display Kit |
| Packaged Quantity | 1 |
| Product Type | LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 11" |
| Viewable Screen Size | 10.4" |
| Screen Mode | SVGA |
| Response Time | 35 ms |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 130° |
| Backlight Technology | LED |
| Glass Hardness | 3H |
| Video | |
| Maximum Resolution | 800 x 600 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 700:1 |
| Brightness | 400 Nit |
| Touchscreen Information | |
| Touchscreen Type | 4-wire Resistive |
| Interfaces/Ports | |
| USB | Yes |
| Environmental Conditions | |
| Operating Temperature Range | 14°F (-10°C) to 140°F (60°C) |
| Physical Characteristics | |
| Weight (Approximate) | 13.40 oz |
Styli
