ADVANTECH

ADVANTECH IDS-3119N-35SXA1E 19IN SXGA OPENFRAME MONITOR 350NITS

Mfg Part Number:  IDS-3119N-35SXA1E
Image may not reflect the actual item.
Price: $538.60
Quantity:
Status: Active
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

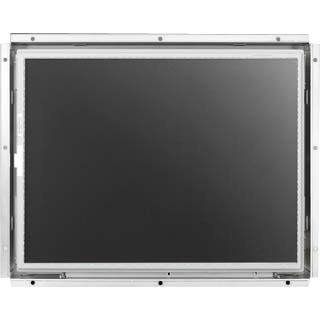

The Advantech IDS-3119 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.

Main Specification
General Information
Manufacturer Advantech Co., Ltd
Manufacturer Part Number IDS-3119N-35SXA1E
Manufacturer Website Address http://www.advantech.com
Brand Name Advantech
Product Model IDS-3119
Product Name 19" SXGA 350nits Open Frame Monitor
Product Type Open-frame LCD Monitor
Technical Information
Number of Screens 1
Screen Size Class 19"
Viewable Screen Size 19"
Screen Mode SXGA
Response Time 5 ms
Horizontal Viewing Angle 170°
Vertical Viewing Angle 160°
Mount Type Rear Mount
Backlight Technology LED
Features Anti-reflective
Features Multi Language Display
Features AutoTune
Features On-screen Display (OSD)
Features Power Switch
Glass Hardness 3H
Video
Maximum Resolution 1280 x 1024
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 350 Nit

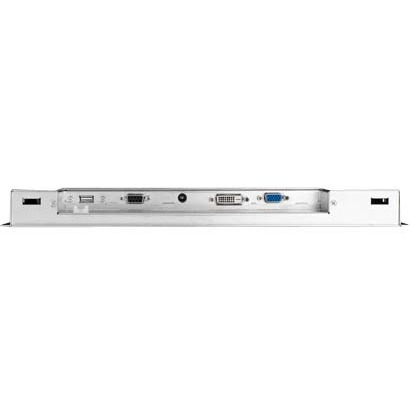

Interfaces/Ports
DVI Yes
USB Yes
VGA Yes
Number of USB Ports 1
Number of DVI Ports 1
Number of VGA Ports 1
Physical Characteristics

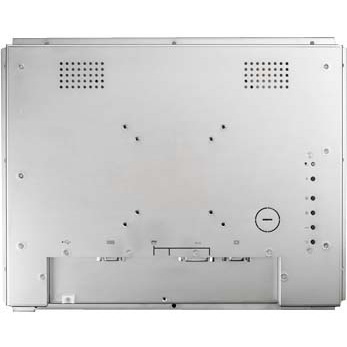

VESA Mount Compatible Yes
Height 14.6"
Width 17.2"
Depth 1.4"
Weight (Approximate) 9.92 lb
Miscellaneous
Package Contents
  • 19" SXGA 350nits Open Frame Monitor
  • 1 x VGA cable 15P(M) 1.8 meter
  • 8 x Clamper
  • 8 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
