Crystal-clear video coverage
Secure large areas and capture the smallest details with the new ultra-high resolution AI camera from Hanwha Vision. With stunning 26MP resolution at 30fps this camera is ideal for critical surveillance locations.
Precision for every application
Strengthen video security for a variety of use cases with the ultra-high resolution AI camera from Hanwha Vision.
Reduce false alarms with AI-based object detection
Set up virtual areas and lines to receive alerts when objects classified as people or vehicles enter, exit, intrude or loiter in designated locations.
Searchable object attributes
Enhance forensic search efficiency with AI-generated metadata on detected objects that can be easily found in your VMS
Custom AI-based alerts
Trigger automated event actions and notifications when AI-detected objects of interest, such as people or vehicles, cross a virtual line or intrude/loiter in virtual areas.
Vertical-specific solutions
The ultra-high resolution AI camera includes licenses for Hanwha Vision AI packs to tailor your analytics to your industry.
Traffic AI Pack
Turn your cameras into sophisticated traffic management systems that provide data and alerts on traffic congestion, pedestrian presence, stopped vehicles, and more.
Factory & Safety AI Pack
Access automatic detection of forklifts, slip & fall incidents, fire and more to protect workers from potential hazards and accidents.
Optimized image quality with reduced bandwidth
Hanwha Vision cameras use sophisticated AI technology to offer better image quality in low light conditions while decreasing bandwidth and storage requirements.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNO-A26081 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Hanwha |
| Product Series | T |
| Product Model | TNO-A26081 |

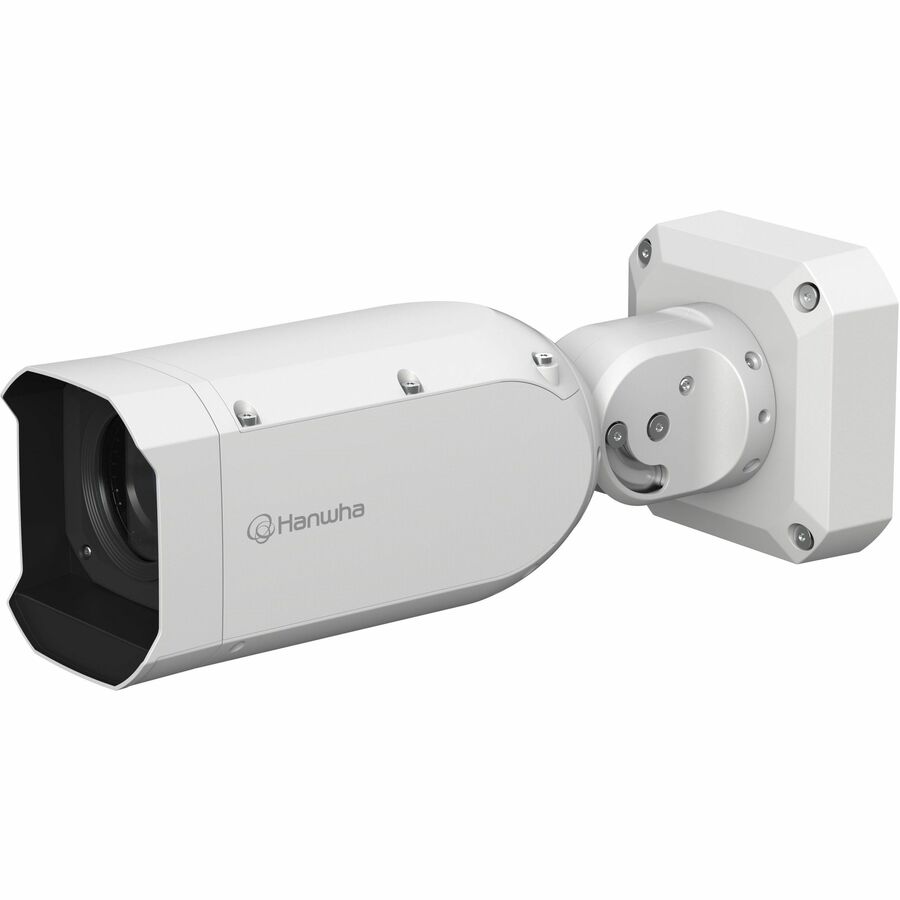

| Product Name | TNO-A26081 Ultra-Resolution 26MP T AI Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | H: 24°(Wide)~5.4°(Tele), V: 16°(Wide)~3.6°(Tele), D: 29°(Wide)~6.5°(Tele) |
| Effective Camera Resolution | 26 Megapixel |
| Video | |
| Video Formats | H.265M |
| Video Formats | MJPEG |
| Video Formats | H.264H |
| Video Formats | H.265H |
| Video Formats | H.264M |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 6240 x 4160 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 55 mm |
| Maximum Focal Length | 250 mm |
| Lens Included | Yes |
| Lens Mount Type | EF-S |
| Minimum Aperture | f/5.6 |
| Maximum Aperture | f/4 |
| Optical Zoom | 4.5x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| PTZ Modes | Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | CDP |
| Protocols | UDP |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | SFTP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | ONVIF |
| Protocols | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | TCP |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | QoS |
| Protocols | MQTT |
| Protocols | UDP/IP |
| Protocols | TCP/IP |
| Protocols | RTP/RTSP/RTCP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | Unicast |
| Protocols | Digest Authentication |
| Protocols | WebSocket |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | SRTP |
| Protocols | SMTPS |
| Protocols | ICMP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 16 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 44.30 W |
| Input Voltage | 12 V DC |
| Power Source Type | PoE++ |
| Power Source Type | DC |
| Power Source Type | HPoE |
| Physical Characteristics | |
| Form Factor | Bullet |

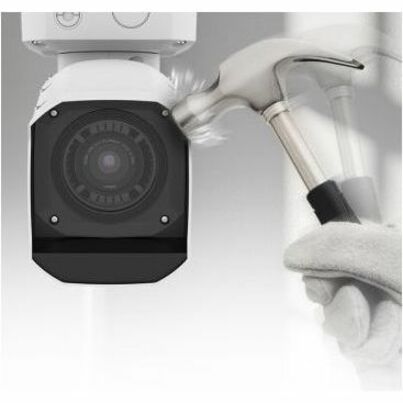

| Durability | Impact Resistant |
| Durability | Vandal Resistant |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Product Material | Polycarbonate |
| Weight (Approximate) | 17.86 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -58°F (-50°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Minimum Operating Humidity (Condensing) | 0% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 0% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Audio Compression |
| Features | Face Detection |
| Features | AI Analytics |
| Features | Alarm Triggering |
| Features | SD Card Local Storage |
| Features | Human Detection |
| Features | Back Light Compensation (BLC) |
| Features | Motion Detection |
| Features | Vehicle Detection |
| Features | Privacy Masking |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
