APC

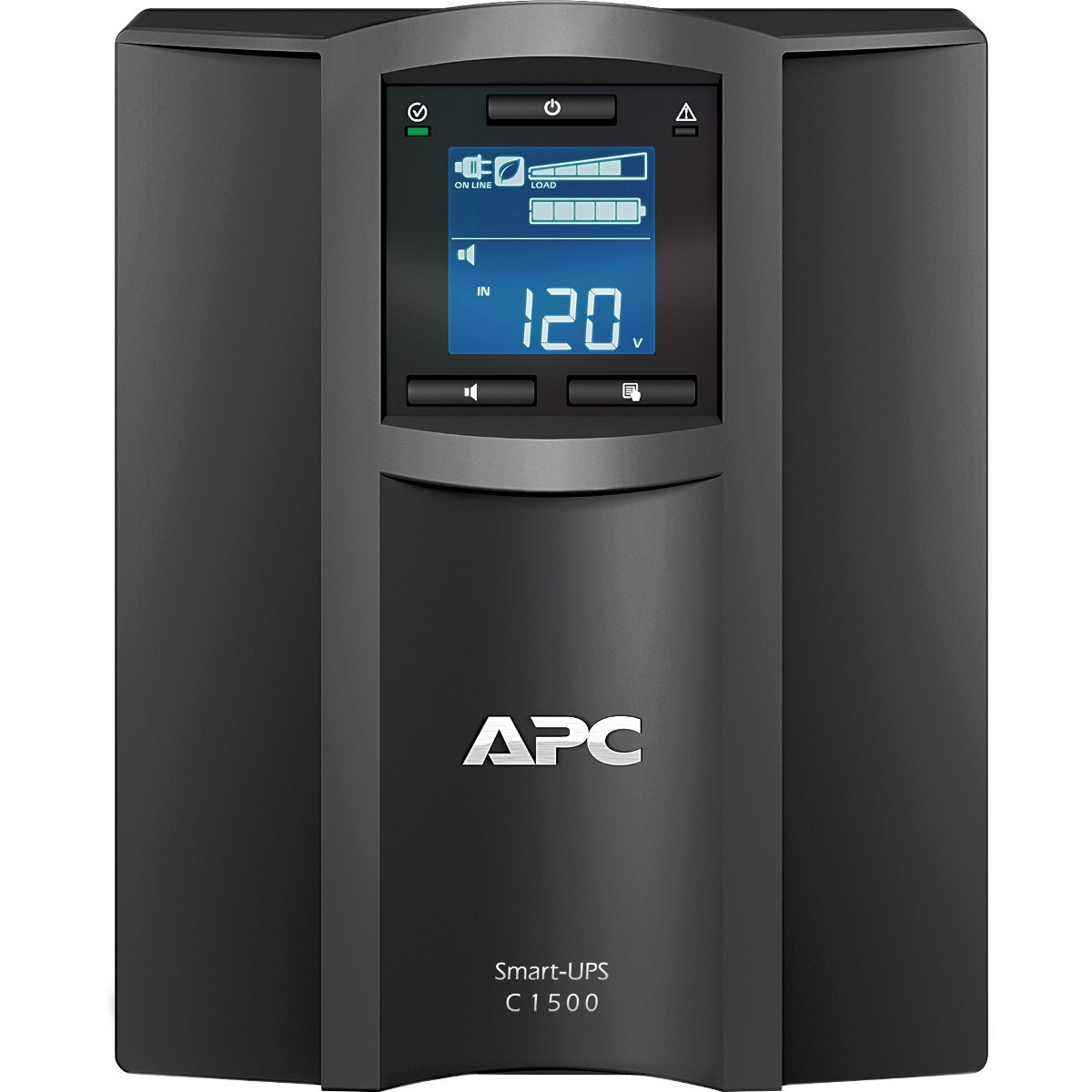

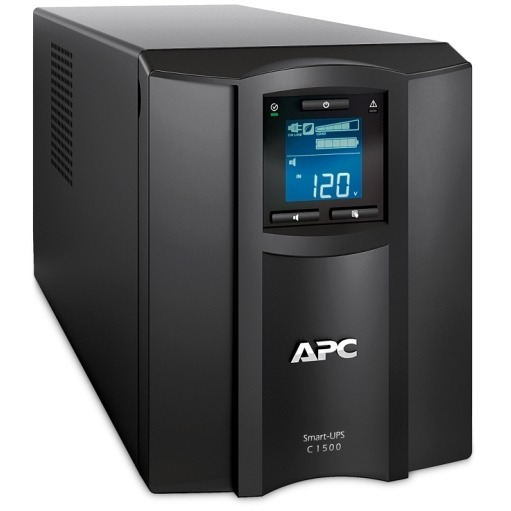

SMC1500IC APC SMART-UPS C 1500VA LCD 230V WITH SMARTCONNECT
Mfg Part Number: SMC1500IC , Item #: 5681086
, PO and Wire.
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMC1500IC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SMC |
| Product Name | Smart-UPS C 1500VA LCD 230V with SmartConnect |
| Product Type | Line-interactive UPS |
| Technical Information | |

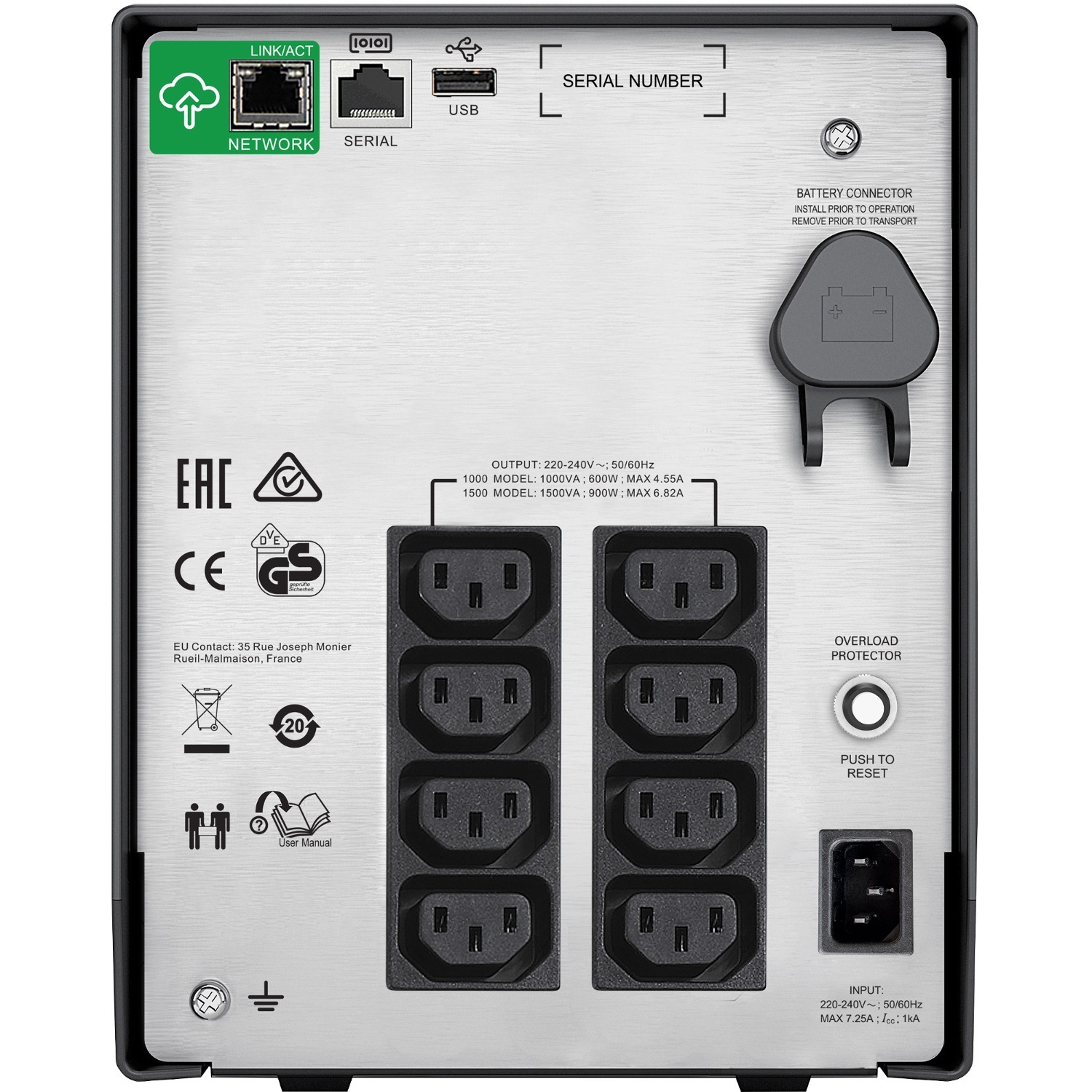

| Receptacle Type | IEC Jumper |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Receptacle Detail | 2 x IEC Jumper |
| Number of Battery & Surge Outlets | 10 |
| Transfer Time | 10 ms |
| Application/Usage | Network Hub |
| Application/Usage | Computer Room |
| Application/Usage | Desktop Computer |
| Application/Usage | Router |
| Application/Usage | Network Device |
| Application/Usage | Switch |
| Application/Usage | Server |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage Range | 180 V AC - 287 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.80 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 8.6" |
| Width | 6.7" |
| Depth | 17.3" |
| Form Factor | Tower |
| Weight (Approximate) | 53.11 lb |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
