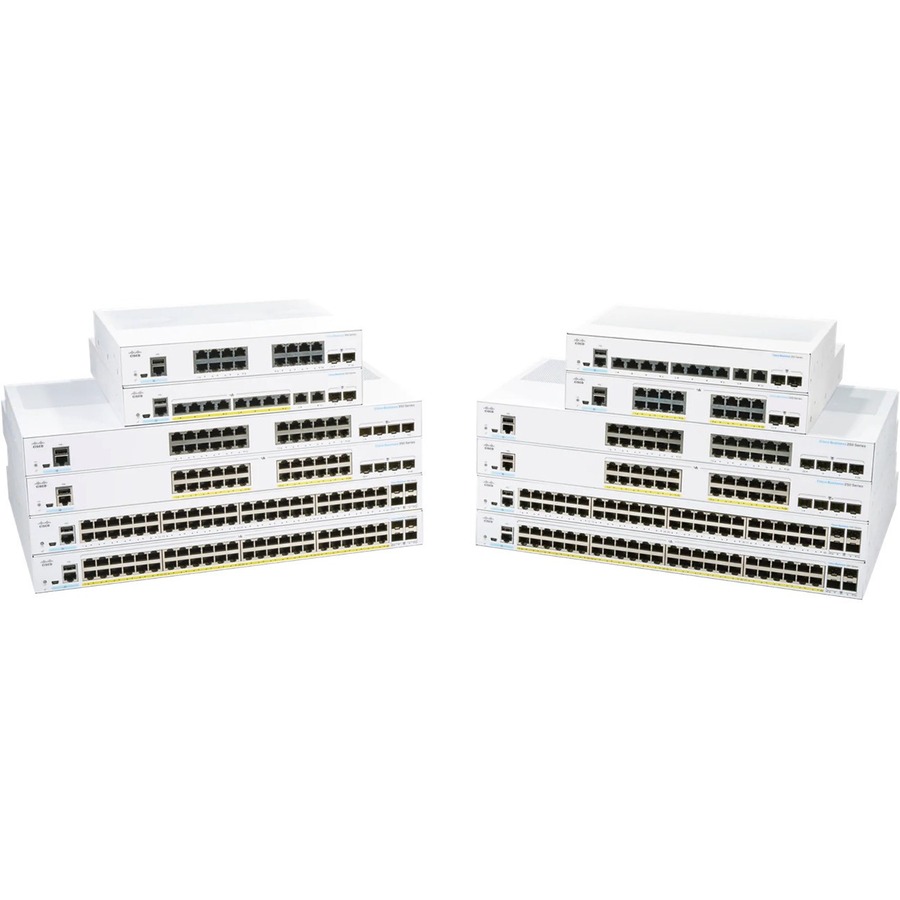

The Cisco Business 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface and Power over Ethernet Plus (PoE+) capability, you can deploy and configure a complete business network in minutes.
Business applications
Whether you need basic, high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, Cisco Business 250 Series switches can meet your business needs. Possible deployment scenarios include:
General Information | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | CBS250-24FP-4G-UK |
Manufacturer Website Address | http://www.cisco.com |
Brand Name | Cisco |
Product Line | Business |
Product Series | 250 |
Product Model | CBS250-24FP-4G |
Product Name | Business 250 CBS250-24FP-4G Ethernet Switch |
Package Type | Retail |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 24 |
Uplink Port | Yes |
Modular | Yes |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
Media & Performance | |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 1000Base-X |
Network Technology | 1000Base-T |
I/O Expansions | |
Total Number of Expansion Slots | 4.0 |
Expansion Slot Type | SFP (mini-GBIC) |
Number of SFP Slots | 4 |
Network & Communication | |
Layer Supported | 3 |
Management & Protocols | |
Manageable | Yes |
Power Description | |
PoE (RJ-45) Port | Yes |
PoE Budget | 370 W |
Frequency | 50 Hz |
Frequency | 60 Hz |
Power Source | Power Supply |
Power Consumption | 46.60 W |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 13.6" |
Width | 17.5" |
Depth | 1.7" |
Weight (Approximate) | 10.14 lb |
