ASUS

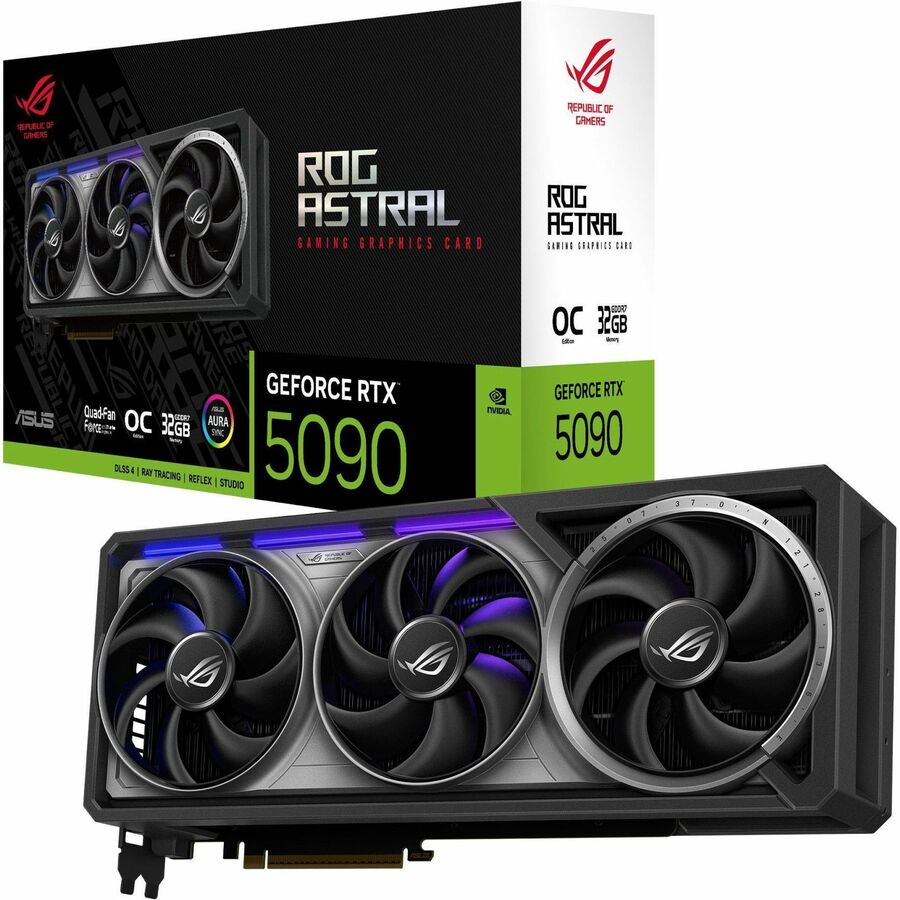

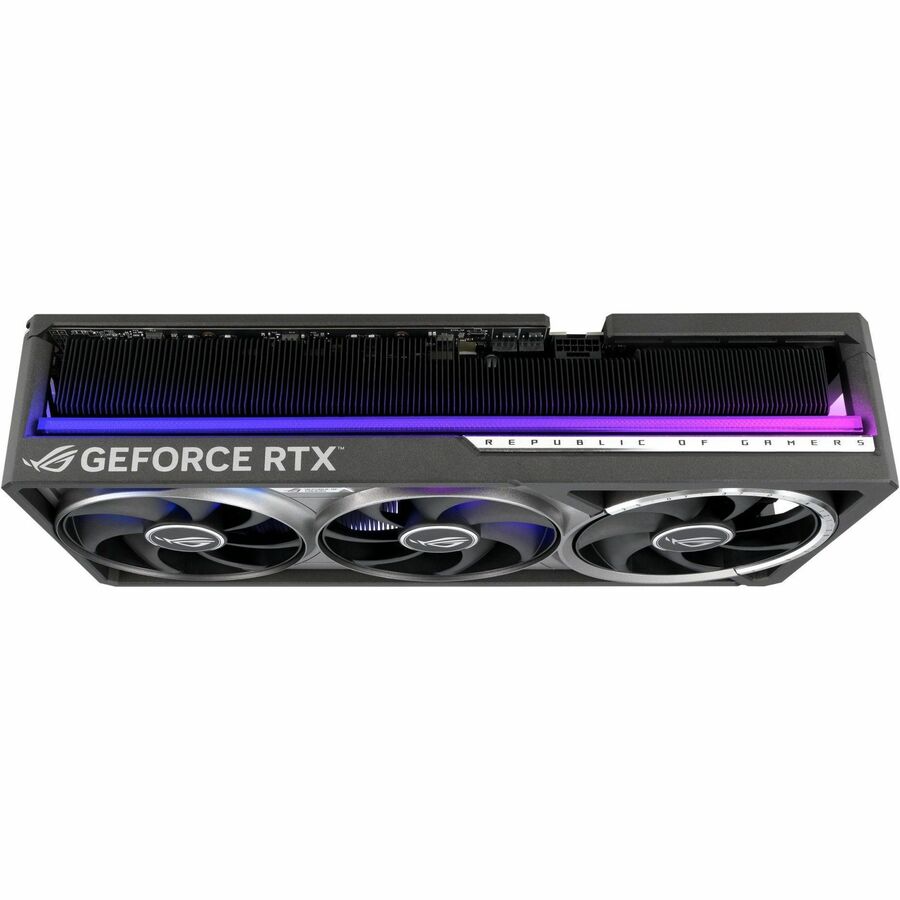

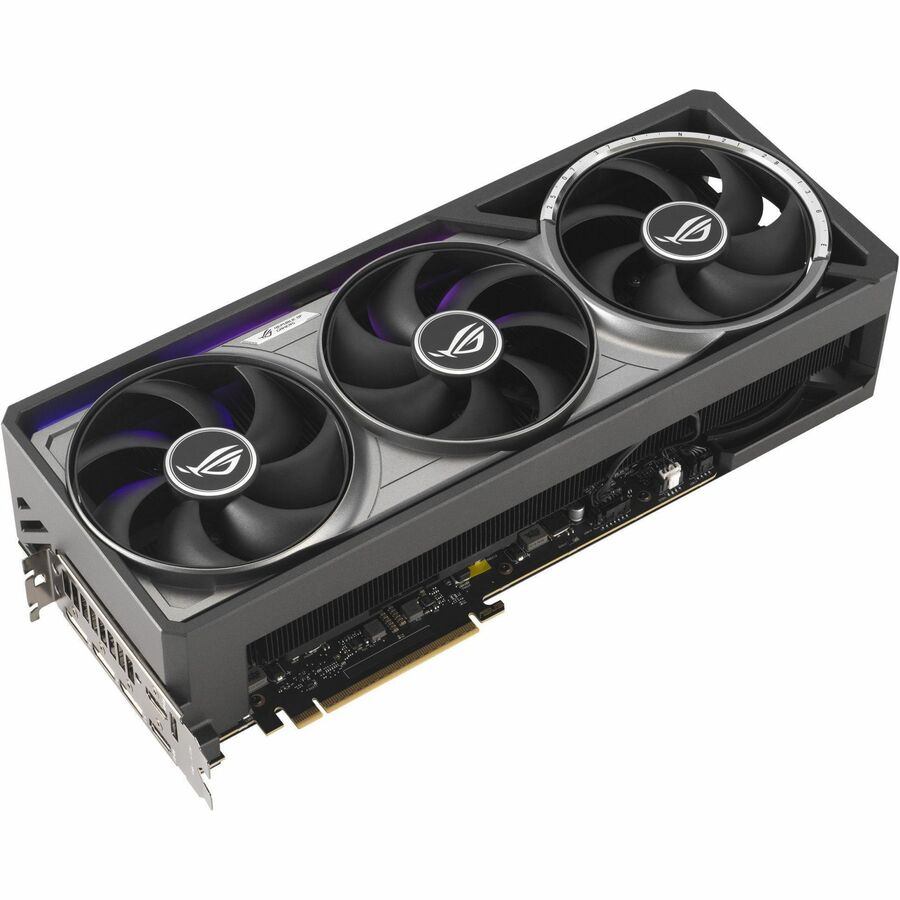

ASUS VCX ROG-ASTRAL-RTX5090-O32G-GAMING GeForce RTX 5090 32G GDDR7 512Bit PCIE
Mfg Part Number: ROG-ASTRAL-RTX5090-O32G-G , Item #: 5659003
, PO and Wire.

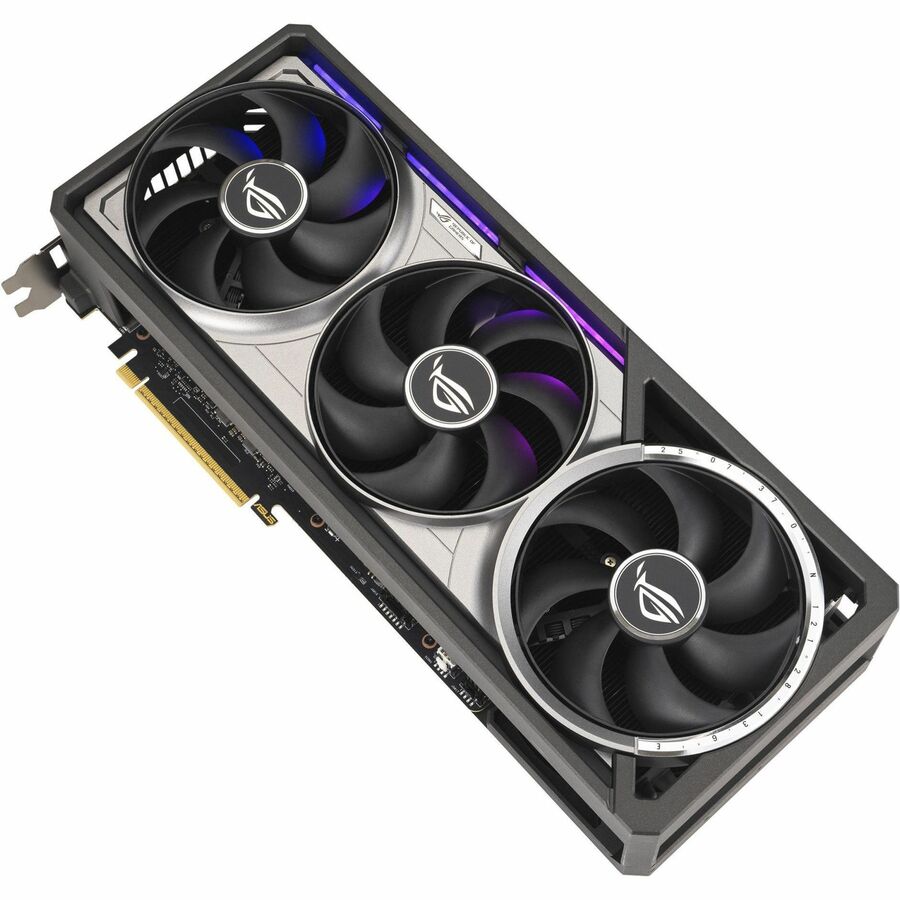

ROG Astral GeForce RTX™ 5090 32GB GDDR7 OC Edition - the first ROG quad-fan graphics card delivering unprecedented airflow and air pressure for optimal cooling performance
- AI Performance: 3593 AI TOPS
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- OC mode: 2610 MHz (OC mode)/ 2580 MHz (Default mode)

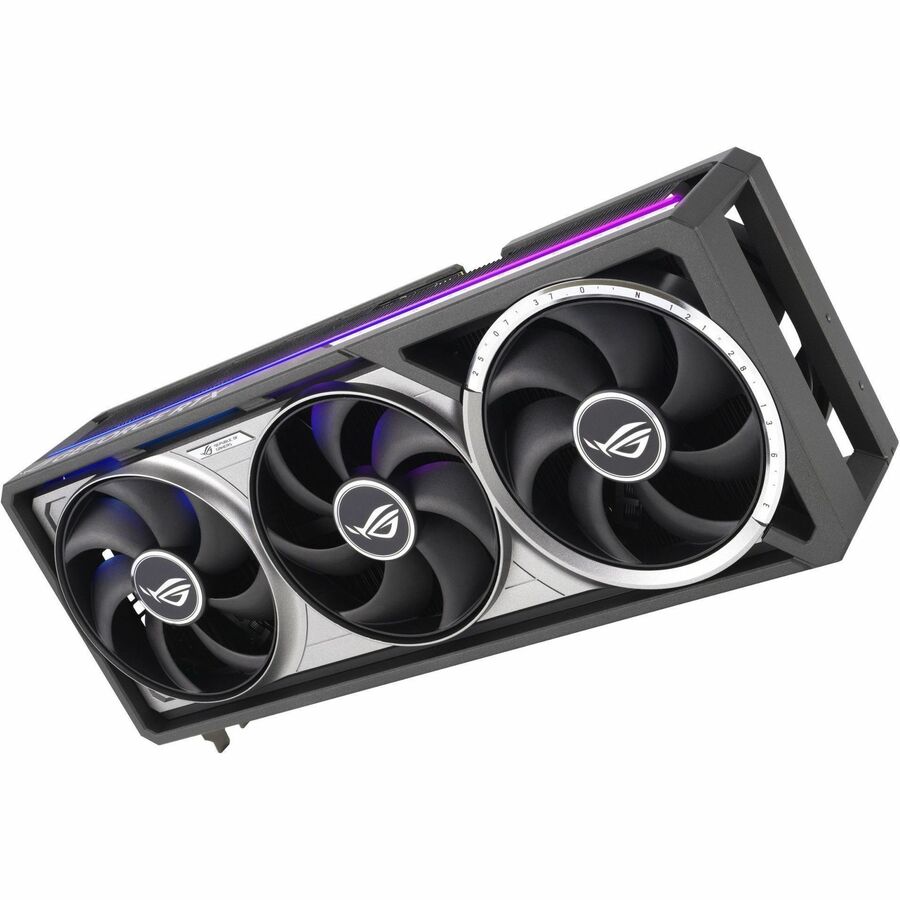

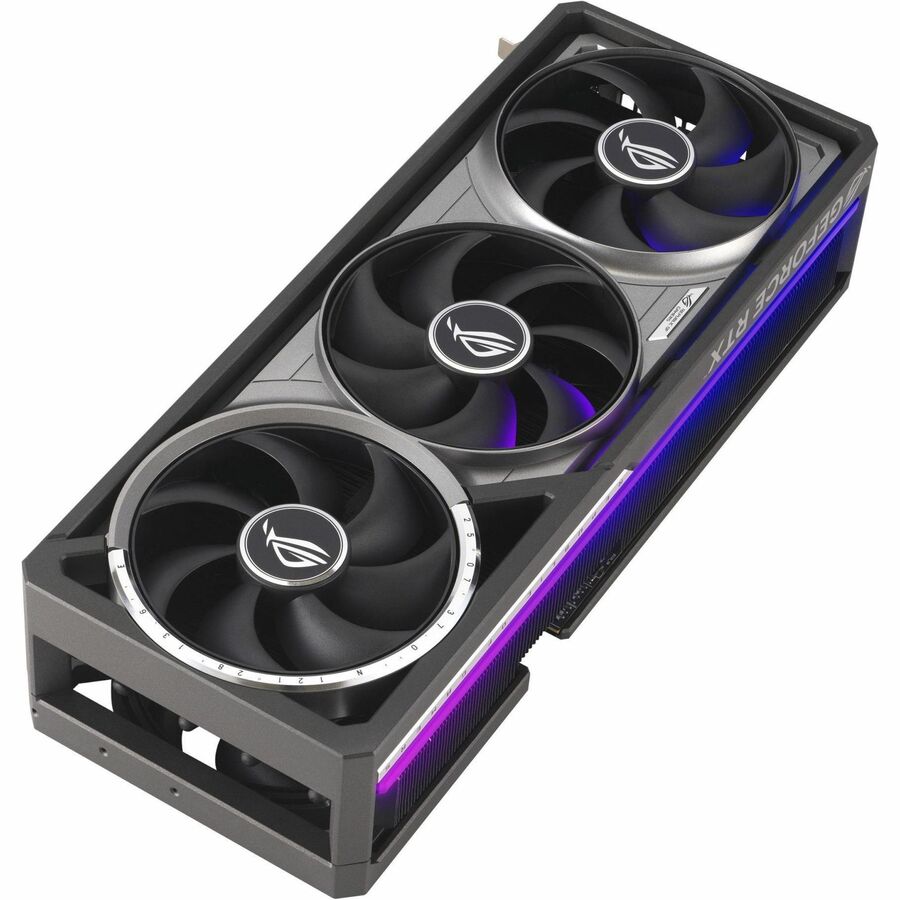

- Quad-fan design boosts air flow and pressure by up to 20%
- Patented vapor chamber with milled heat spreader for lower GPU temperatures
- Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability

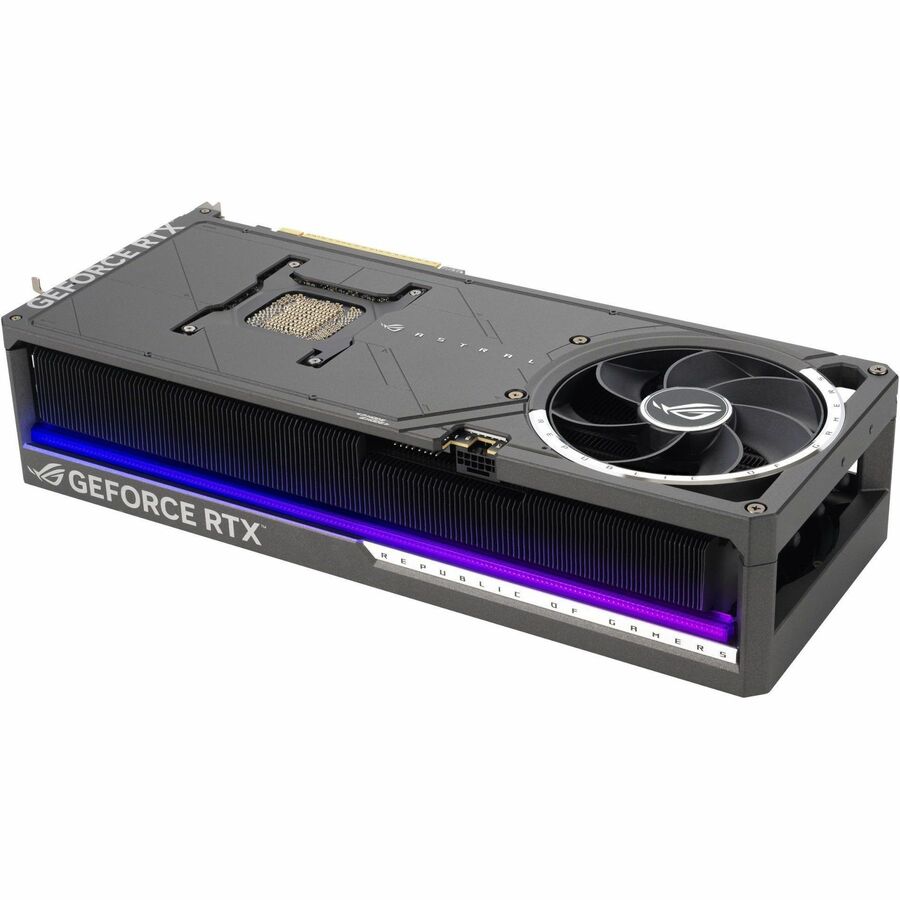

- 3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans
- Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting.

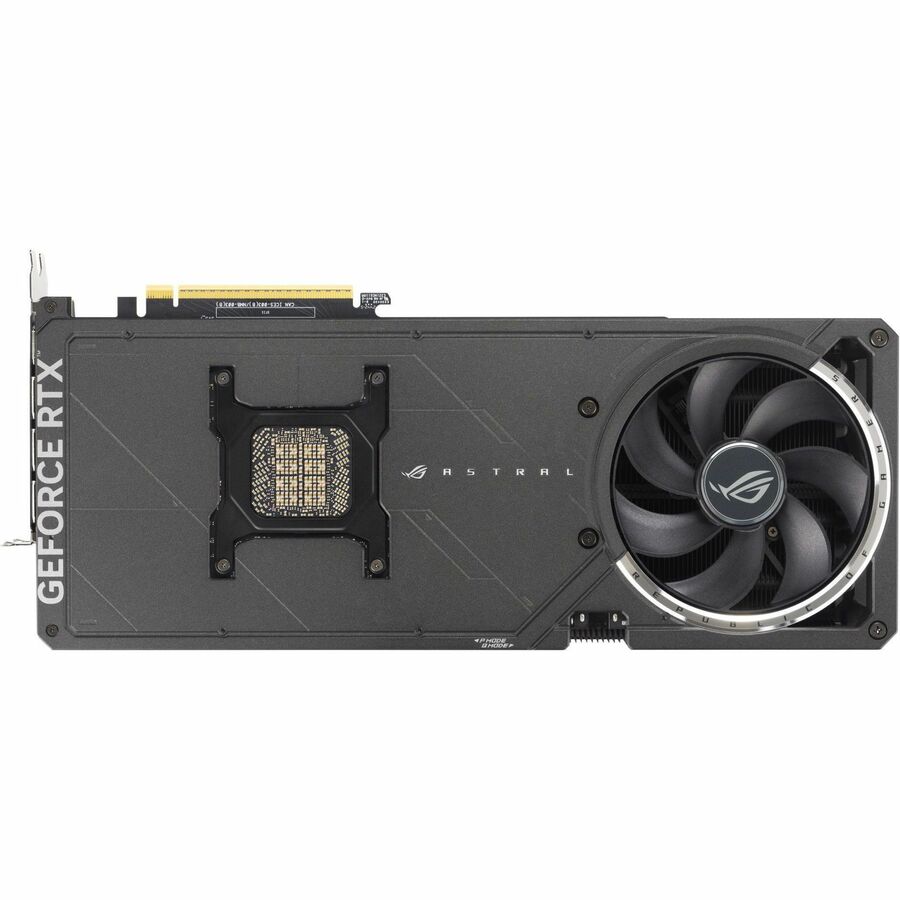

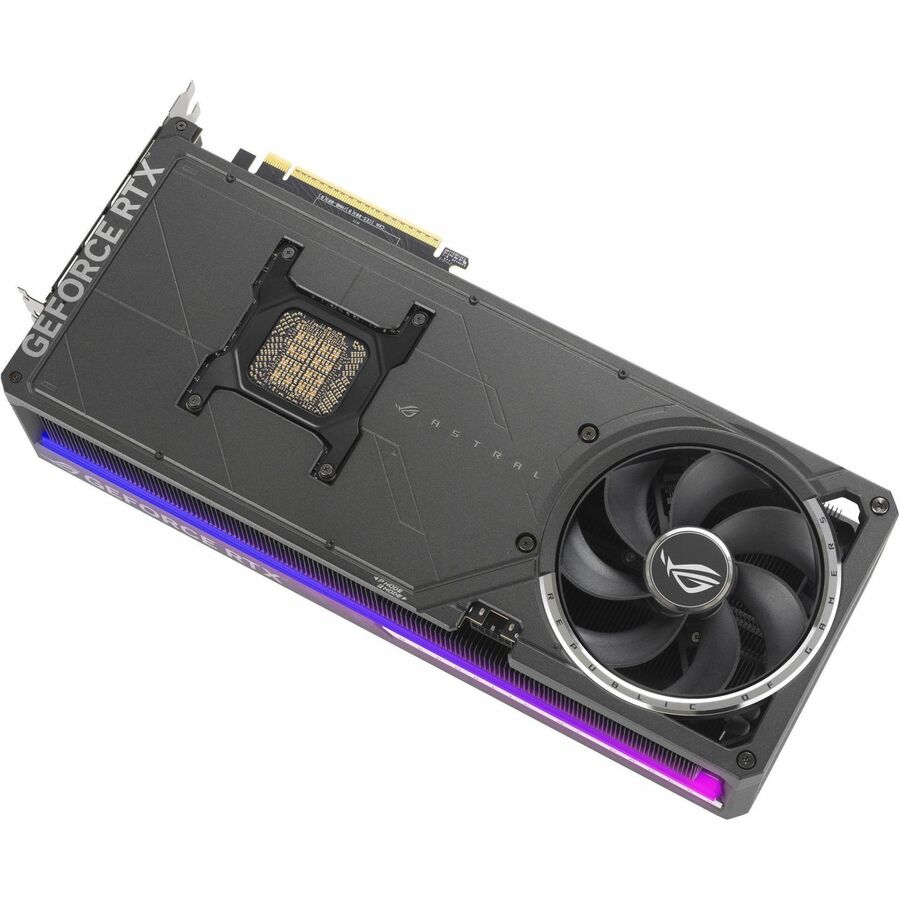

- Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
- Powerful 80-amp MOSFETs help ensure enhanced performance, stability and higher overclocking potential
- Protective PCB coating guards against moisture, dust, and extreme temperatures.
- Auto-Extreme manufacturing process for precision and reliability
- GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring
ROG Astral GeForceRTX™ 5090
The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations - amplified by an eye-catching die-cast frame and metal GPU bracket - combine to deliver absolute performance that can handle even the most demandinggaming scenarios.
Quad-Fan Force
Up to 20% air flow and pressure
Premium Power Delivery
35% more headroom with 80 Amp MOSFETs
Protective PCB Coating
Against moisture and debris
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG-ASTRAL-RTX5090-O32G-G |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus ROG |
| Product Line | Astral |
| Product Name | Astral GeForce RTX 5090 32GB GDDR7 OC Edition Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Features | Triple-fan Cooler |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 21760 |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 5090 |
| GPU Boost Clock | 2.61 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | GDDR7 |
| Bus Width | 512 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 |

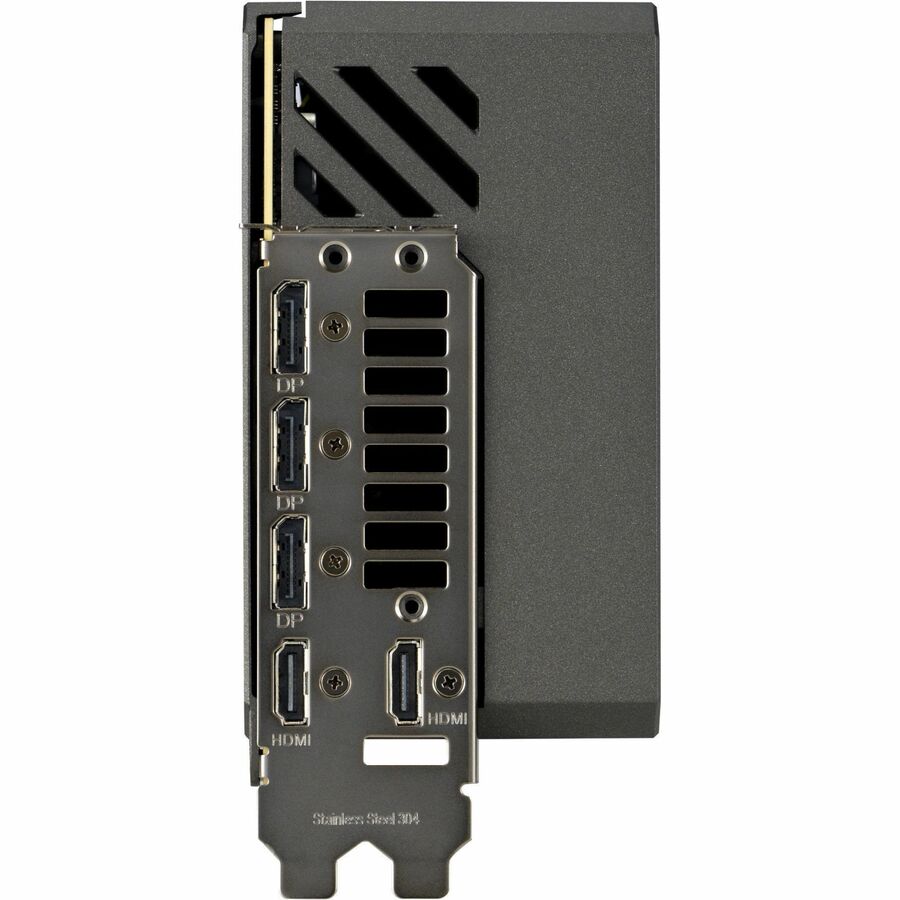

| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Power Description | |
| Power Supply Wattage | 1000 W |
| Power Connector | 1x 16-pin |
| Physical Characteristics | |
| Slot Space Required | Quad |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 3" |
| Width | 5.9" |
| Length | 14.1" |
| Miscellaneous | |

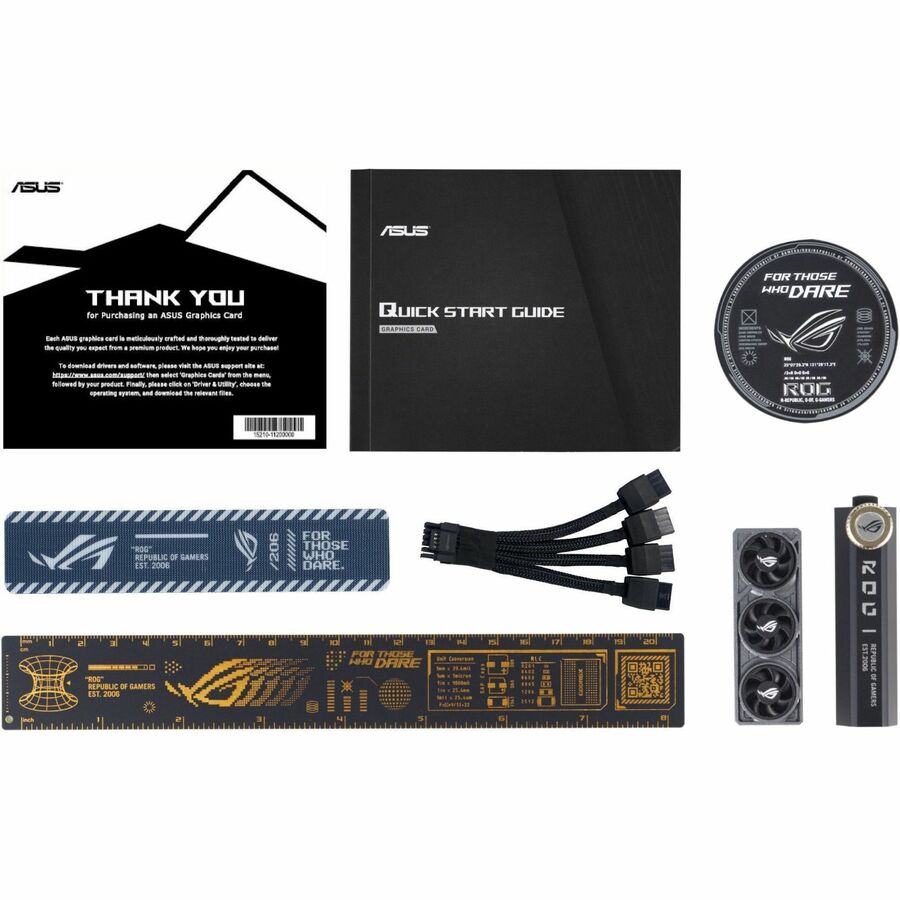

| Package Contents |
|
| Platform Supported | PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
