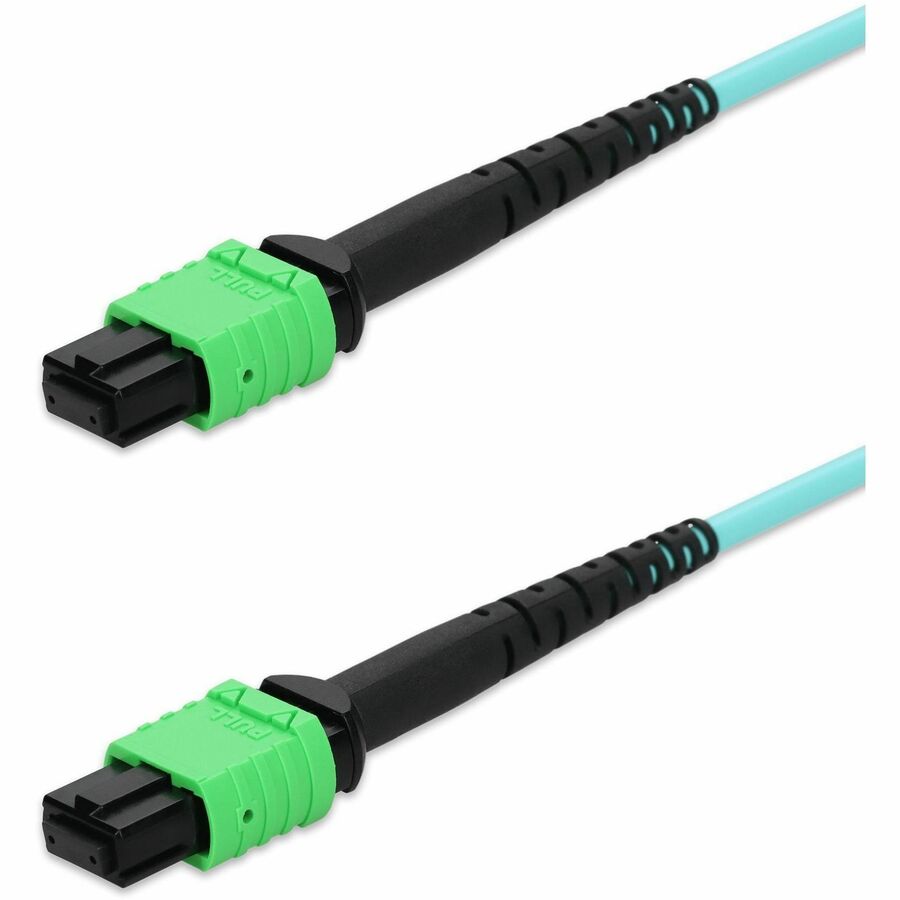

AddOn ADD-AMPOAMPO-2M5OM4LZ 2M MPO/APC TO MPO/APC AQUA OM4 LSZH 12-STRAND FIBER PATCH CABLE
Mfg Part Number: ADD-AMPOAMPO-2M5OM4LZ , Item #: 5645017
Image may not reflect the actual item.
Price: $76.13
Quantity:
In Stock: 61
Last Updated: Jan 27, 2026
No Sales Tax except these states
, PO and Wire.
This is a 2m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Main Specification
| General Information | |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-AMPOAMPO-2M5OM4LZ |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Brand Name | AddOn |
| Product Name | 2m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable |
| Packaged Quantity | 1 Piece |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Cable Configuration | Crossover |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Cable Length | 6.60 ft |
| Maximum Distance | 492.13 ft |
| Connector Type on First End | MPO-12/APC Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO-12/APC Network - Female |
| Connector Type on Second End | MPO-12/APC Network - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x MPO-12/APC Network - Female |
| Shielding | No |
| Jacket Type | LSZH |
| Jacket Type | OFNG |
| Device Supported | Network Device |
| Boot Type | Standard |
| Bend Insensitivity | G.657.A1 |
| Features | Angled Physical Contact (APC) |
| Features | Bend Insensitive |
| Features | Stranded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Connector Color | Green |
| Color Details | |
| Connector Material | Fiber |
| Jacket Material | Low Smoke Zero Halogen |
| Height | 0.1" |
| Width | 0.3" |
| Weight (Approximate) | 0.10 lb |
| Shipping Height | 5" |
| Shipping Width | 2.75" |
| Shipping Weight (Approximate) | 3.20 oz |
| Miscellaneous | |
| Application/Usage | Data Transmission |
| Application/Usage | Data Center |
| Application/Usage | Business |
| Application/Usage | Indoor |
| Compatibility | |
| Certifications & Standards | TIA Compliant |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | Lifetime |
