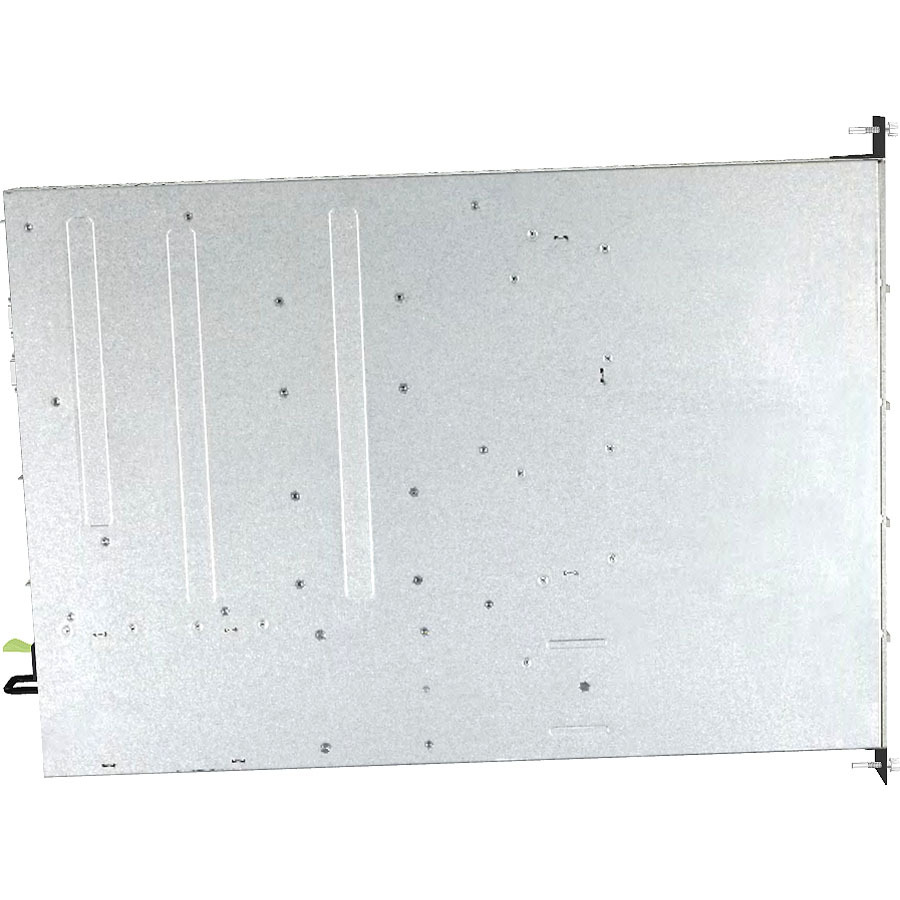

CISCO UCS-SPV-C22-V UCS C22 M3 SFF 2XE5-2440 2X8GB 1X450W USB RAILS

The Cisco Unified Computing System™ (Cisco UCS™) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new 1RU, Cisco UCS C22 M3 Rack Server and the 2RU, Cisco UCS C24 M3 Rack Server. These two new servers increase computing density and balanced price per performance, through more cores and cache balanced with ample memory capacity and disk drives. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT's diverse server needs.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SPV-C22-V
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C22 M3
Product Name	UCS C22 M3 Server
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon
Processor Model	E5-2440
Processor Core	Hexa-core (6 Core)
Processor Speed	2.40 GHz
Cache	15 MB
QuickPath Interconnect	7.20 GT/s
64-bit Processing	Yes
Hyper-Threading	Yes
Memory
Standard Memory	16 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1600/PC3-12800
Total Number of Memory Slots	12
Controllers
Controller Type	Serial ATA/300
RAID Supported	Yes
I/O Expansions
Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of PCI Express x16 Slots	1
Display & Graphics
Graphics Controller Model	G200E
Graphics Memory Capacity	256 MB
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	6
Number of USB 2.0 Ports	6
Network (RJ-45)	Yes
VGA	Yes
Remote Management	Yes
Operating System
Operating System	No
Power Description
Input Voltage	220 V AC
Input Voltage	110 V AC
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	450 W
Physical Characteristics
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	16.9"
Depth	26"
Weight (Approximate)	23.50 lb
Miscellaneous
Package Contents	UCS C22 M3 Server Rails
Certifications & Standards	Safety: UL 60950-1 No. 21CFR1040 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943 2001 EMC: Emissions: 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR2 2 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EMC: Immunity: EN55024 CISPR24 EN300386 KN24
Warranty
Limited Warranty	3 Year
