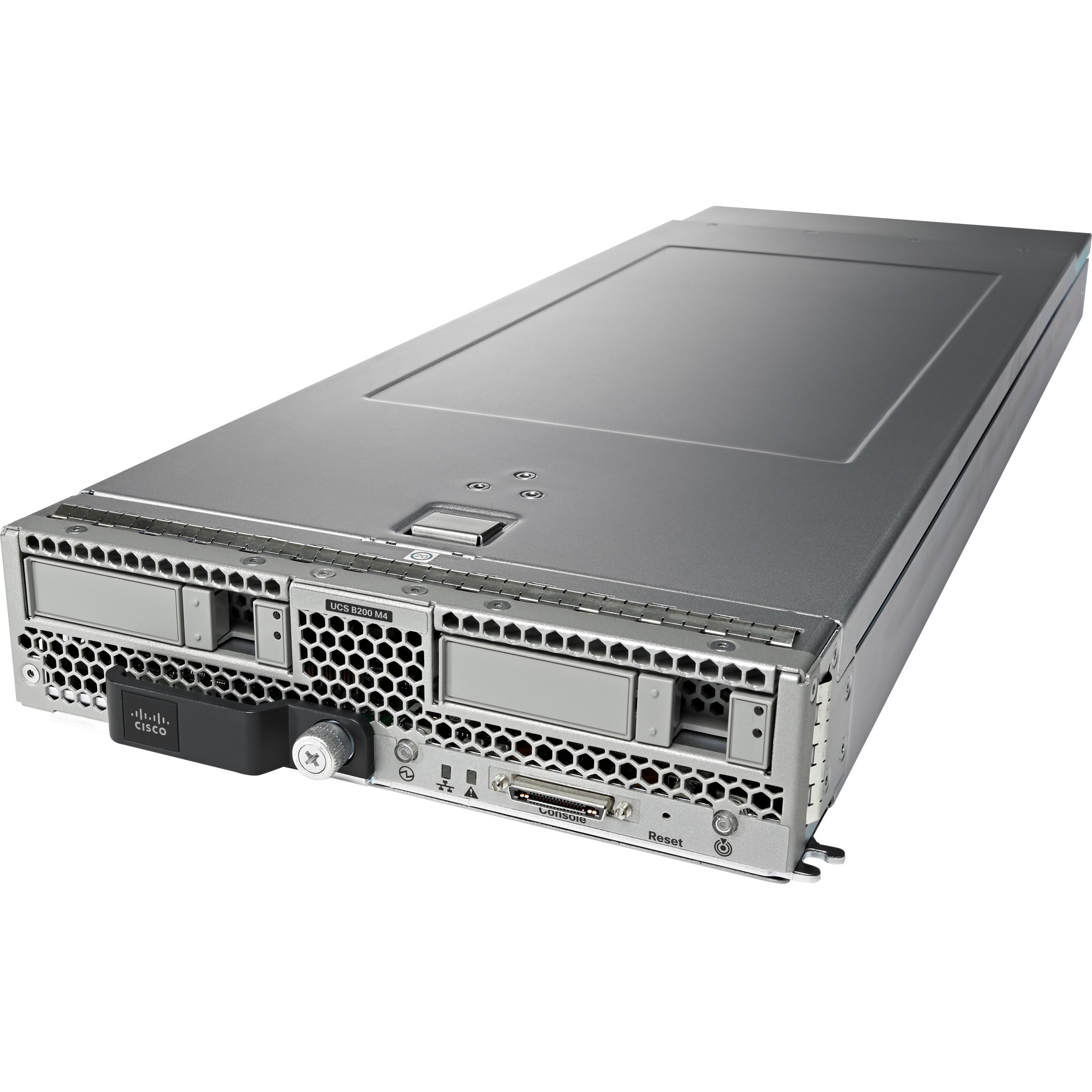

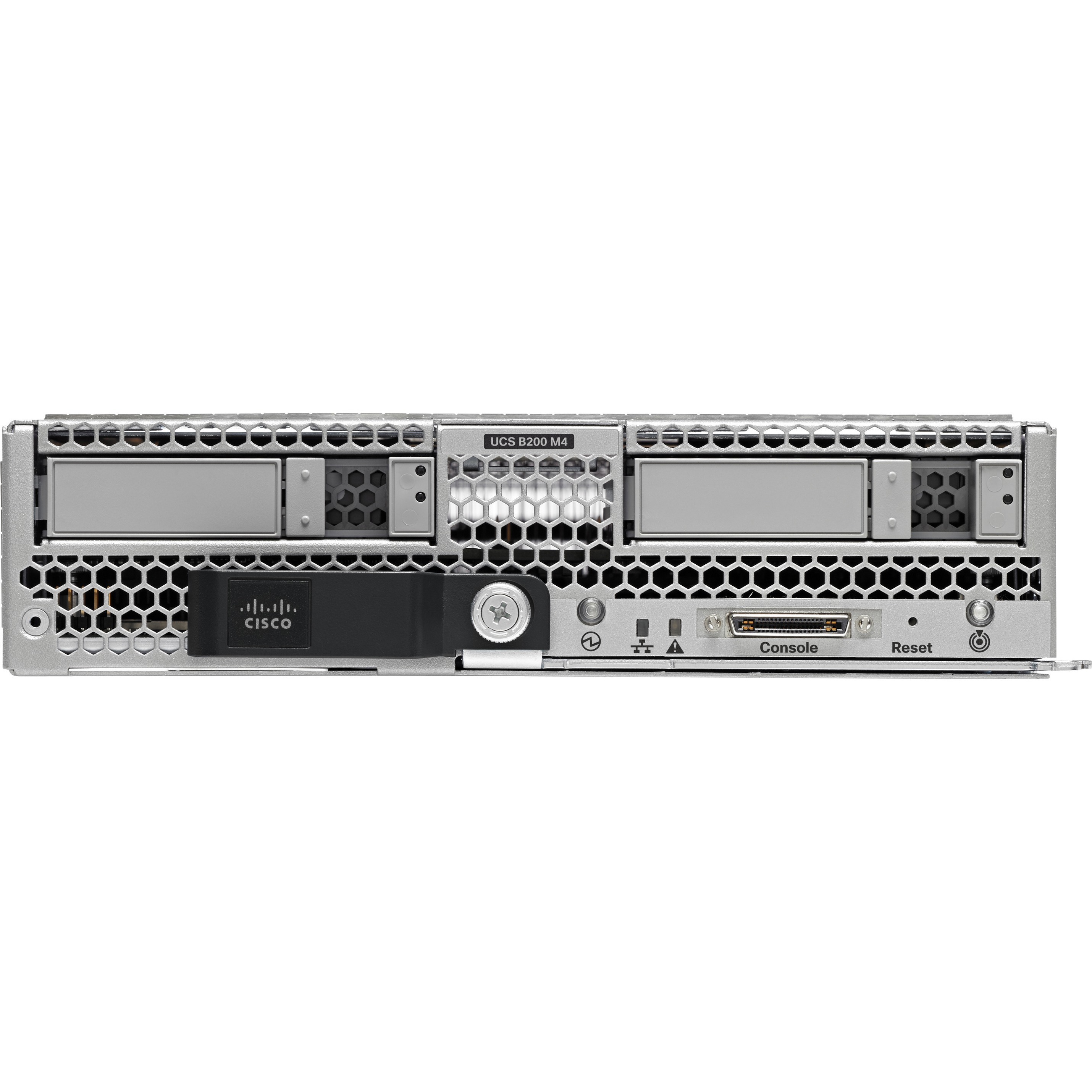

CISCO UCS-SPL-B200M4-C1 UCS SP SELECT B200M4 CORE1 W/ 2XE52698 V3 8X32GB VIC1340

The Cisco Unified Computing System™ (Cisco UCS®) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access into a single converged system with simplified management, greater cost efficiency and agility, and increased visibility and control. One of the newest servers in the Cisco UCS portfolio is the Cisco UCS B200 M4 Blade Server.

The UCS B200 M4 Blade Server delivers performance, flexibility and optimization for data centers and remote sites. This enterprise-class server offers market-leading performance, versatility, and density without compromise for workloads ranging from web infrastructure to distributed databases. The Cisco UCS B200 M4 server can quickly deploy stateless physical and virtual workloads, with the programmable ease of use of the Cisco UCS Manager software and simplified server access with Cisco®SingleConnect technology. Based on the Intel® Xeon® processor E5-2600 v3 product family, it offers up to 768 GB of memory using 32GB DIMMs, up to two drives, and up to 80 Gbps I/O throughput. The Cisco UCS B200 M4 offers exceptional levels of performance, flexibility, and I/O throughput to run your most demanding applications.

In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches, NICs and HBAs in each blade server chassis. Having a larger power budget per blade server provides uncompromised expandability and capabilities, as in the new Cisco UCS B200 M4 server with its leading memory-slot and drive capacity.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SPL-B200M4-C1
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	B200 M4
Product Name	UCS B200 M4 Blade Server
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon
Processor Model	E5-2698 v3
Processor Core	Hexadeca-core (16 Core)
Processor Speed	2.30 GHz
Maximum Turbo Speed	3.60 GHz
Cache	40 MB
QuickPath Interconnect	9.60 GT/s
64-bit Processing	Yes
Hyper-Threading	Yes
Memory
Standard Memory	256 GB
Maximum Memory Supported	768 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-17000
Total Number of Memory Slots	24
Memory Card Reader	Yes
Memory Card Supported	SDHC
Memory Card Supported	SD
I/O Expansions
Total Number of Expansion Slots	2
Network & Communication
Ethernet Technology	40 Gigabit Ethernet
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Form Factor	Blade
Miscellaneous
Certifications & Standards	Regulatory Compliance: Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC Safety: UL 60950-1 No. 21CFR1040 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition IEC 60950-1 Second Edition EN 60950-1 Second Edition AS/NZS 60950-1 GB4943 2001 EMC: Emissions 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR2 2 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EMC: Immunity EN55024 CISPR24 EN300386 KN24
Warranty
Limited Warranty	3 Year
