Atlas Sound

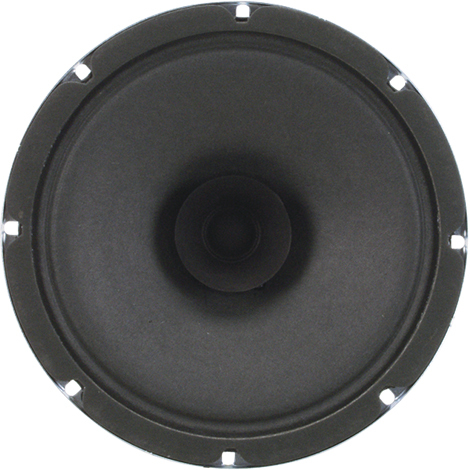

Atlas Sound SD72 8IN DUAL CONE IN-CEILING SPEAKER WITH 25V/70V 5-WATT
Mfg Part Number: SD72 , Item #: 5569713
Image may not reflect the actual item.
Price: $50.60
Quantity:
More to Come
Last Updated: Aug 09, 2026
No Sales Tax except these states
, PO and Wire.
The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72.
Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
Main Specification
| General Information | |
| Manufacturer | AtlasIED |
| Manufacturer Part Number | SD72 |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Model | SD72 |
| Product Name | 8" Dual Cone Loudspeaker with 25V/70.7-5W Transformer |
| Product Type | Speaker |
| Technical Information | |
| RMS Output Power | 25 W |
| Minimum Frequency Response | 55 Hz |
| Maximum Frequency Response | 19 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 97 dB |
| Shape | Round |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Anodized Aluminum |
| Product Material | Ceramic |
| Product Material | Paper |
| Product Material | Copper |
| Form Factor | In-ceiling |
| Depth | 2.87" |
| Diameter | 8.1" |
| Miscellaneous | |
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 5 Year |
