Dynatron

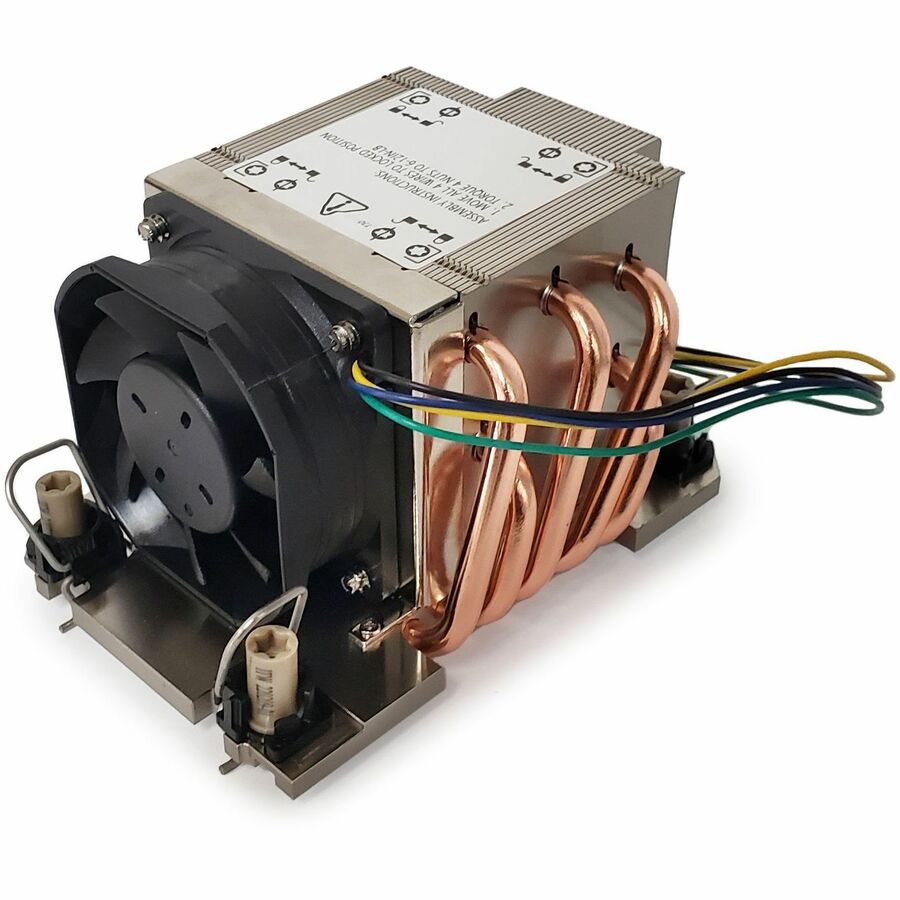

Dynatron Fan S5R1-4710 2U Active Air Cooler FCLGA4710 550W Brown Box
Mfg Part Number: S5R1-4710 , Item #: 5568771
Image may not reflect the actual item.
Price: $82.43
Quantity:
More to Come
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | S5R1-4710 |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Brand Name | Dynatron |
| Product Model | S5R1-4710 |
| Product Name | S5R1-4710 Cooling Fan/Heatsink |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Max) | 11000 rpm |
| Maximum Airflow | 58.31 CFM |
| Noise Levels (A-Weighted) | 59.8 dB(A) |
| Fan Life | 8.0 Year |
| Maximum Air Pressure | 28.8mmH2O |
| Heatsink Information | |
| Cooler Type | Air |
| Number of Heat Pipes | 5 |
| Compatible Intel Socket | LGA-4710 |
| Interfaces/Ports | |
| Connectors | Pin#4- Blue (PWM) |
| Connectors | Pin#3- Green(Tachometer/ Signal Output) |
| Connectors | Pin#1-Black(-) |
| Connectors | Pin#2- Yellow(+) |
| Physical Characteristics | |
| Product Material | Aluminum |
| Material Details | 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack |
| Maximum Fan Diameter | 2.36" |
| Fan Height | 2.36" |
| Fan Width | 2.36" |
| Fan Depth | 2.36" |
| Height | 4.6" |
| Width | 3.2" |
| Depth | 2.6" |
| Weight (Approximate) | 1.08 lb |
| Miscellaneous | |
| Compatibility | Compatible Processors:
|
| Application/Usage | CPU |
| Application/Usage | Processor |
| Application/Usage | Server |
