OMNITRON 9322N-0-11 POE+ MEDIA CONVERTER SC MM 5KM

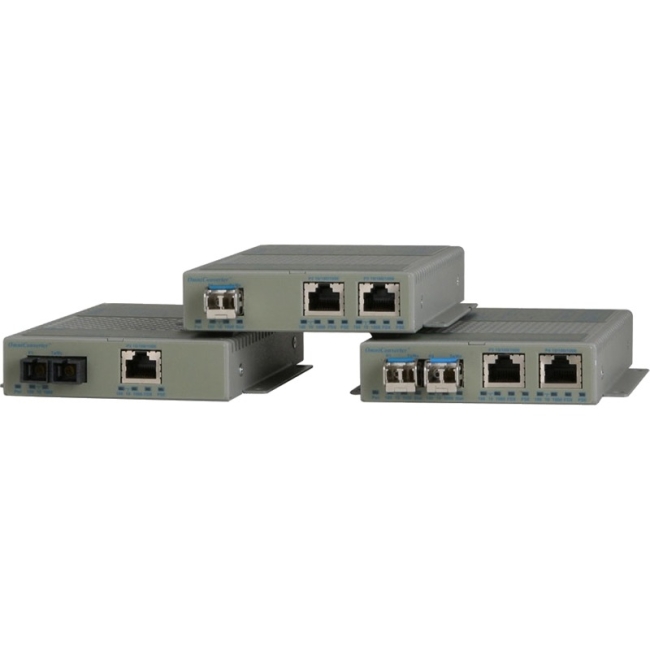

The OmniConverter FPoE+/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.

General Information
Manufacturer	Omnitron Systems
Manufacturer Part Number	9322N-0-11
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	OmniConverter
Product Series	FPoE+/S
Product Model	9322-0-x
Product Name	OmniConverter FPoE+/S PoE+ SC Multimode 5km US AC Powered
Package Type	Retail
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE+ (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	0.1 mil
Maximum Distance Supported	5.01 km
Network & Communication
Ethernet Technology	Fast Ethernet
Ethernet Technology	Ethernet
Network Technology	100Base-FX
Network Technology	10/100Base-TX
Power Description
Power Source	Power Supply
Input Voltage	120 V AC
Input Voltage	240 V AC
Physical Characteristics
Form Factor	Desktop
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Form Factor	External
Height	1"
Width	3.8"
Depth	4.8"
Weight (Approximate)	1 lb
Miscellaneous
Package Contents	OmniConverter FPoE+/S PoE+ SC Multimode 5km US AC Powered US Power Supply - 100-240Volt / 50-60Hz US AC Power Cord User Manual
Additional Information	Input Voltage: 46-57VDC via 2.1mm barrel (0.54A @ 48VDC) 100-240VAC/50-60Hz (0.23A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL, CE, FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX IEEE 802.3af PoE IEEE 802.3at PoE+
Environmentally Friendly	Yes
Country of Origin	United States
Warranty
Limited Warranty	Lifetime
