OMNITRON
OMNITRON 9431N-1-21W POE+ MEDIA CONVERTER SC SM SF
Mfg Part Number: 9431N-1-21W , Item #: 5536840

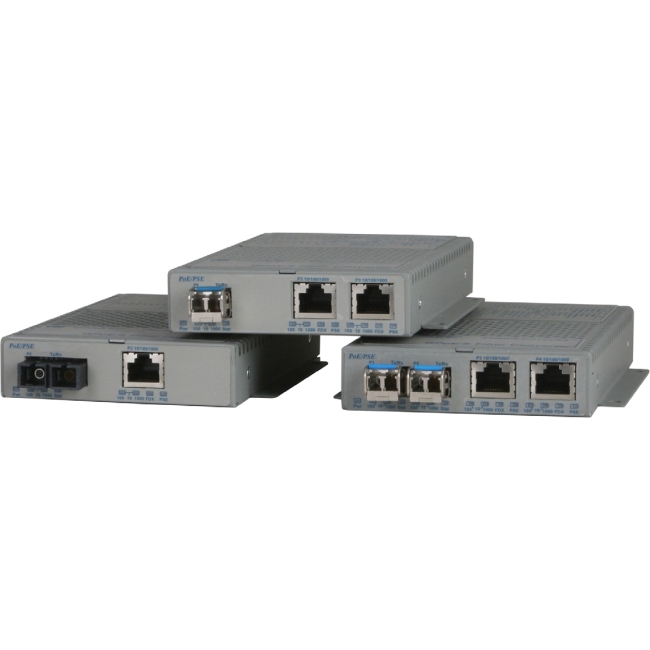

Image may not reflect the actual item.
Price: $1,401.16
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 09, 2025
No Sales Tax except these states
, PO and Wire.
The OmniConverter GPoE/S and GPoE+/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.
The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations are available, including single or dual UTP and SFP ports.
The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations are available, including single or dual UTP and SFP ports.
The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
Main Specification
| General Information | |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 9431N-1-21W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Brand Name | Omnitron Systems |
| Product Line | OmniConverter |
| Product Series | GPoE+/S |
| Product Model | 9431-1-x |
| Product Name | OmniConverter GPoE+/S 2x PoE+ SC Single-Mode Single-Fiber 15/13 20km US AC Powered Wide Temp |
| Package Type | Retail |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 1000Base-BX |
| Network Technology | 1000Base-BX-D |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Input Voltage | 240 V AC |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Form Factor | External |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 3.8" |
| Depth | 4.8" |
| Weight (Approximate) | 1 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Input Voltage:
Operating Temperature Range:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
